Dytran Instruments 3312A2T Operating Manual

Iepe accelerometer with teds electronic data sheet function, hermetically sealed and case isolated

OG3312A2T.docx

REV A, ECN 14100, 04/23/18

WITH TEDS ELECTRONIC DATA SHEET FUNCTION,

NOTE: IEPE is an acronym for Integrated Electronics Piezoelectric types of low impedance voltage

mode sensors with built-in amplifiers operating from constant current sources over two wires. IEPE

instruments are compatible with other comparable systems labeled LIVM

D y n a m i c T r a n s d u c e r s a n d S y s t e m s

2 1 5 9 2 M a r i l l a S t . • C h a t s w o r t h , C A 9 1 3 1 1 • P h o n e 8 1 8 - 7 0 0 - 7 8 1 8

w w w . d y t r a n . c o m • e - m a i l : i n f o @ d y t r a n . c o m

OPERATING GUIDE

MODEL 3312A2T

IEPE ACCELEROMETER

HERMETICALLY SEALED AND CASE ISOLATED

This guide contains:

1) Outline/installation drawing 127-3312A2T

2) Specifications, Model 3312A2T

NOTE:

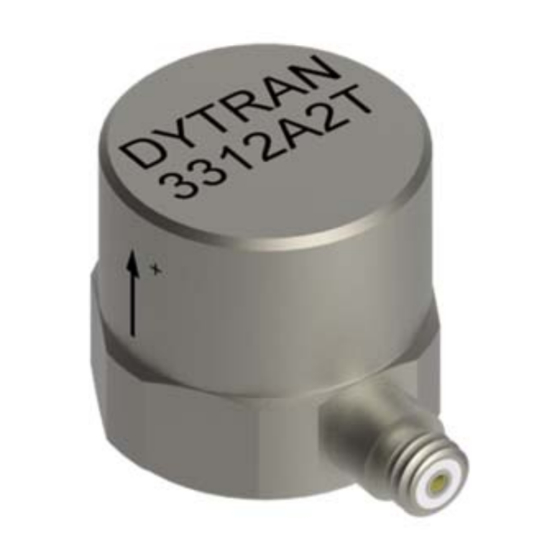

Model 3312A2T is an IEPE accelerometer with

100mV/g sensitivity and TEDS electronic data sheet

function. A built-in charge amplifier amplifies the

signal generated by the piezoceramic shear mode

seismic element to obtain the 100 mV/g sensitivity.

Model 3312A2T features hermetically sealed

construction and electrically isolated case for "off-

ground" performance. Hermeticity is obtained by

all-welded construction and glass-to-metal sealed

connector. Case ground isolation is by an

electrically isolated insert located in the base of the

instrument. Signal ground return is electrically

isolated from the mounting surface.

Table of Contents

Need help?

Do you have a question about the 3312A2T and is the answer not in the manual?

Page 1 WITH TEDS ELECTRONIC DATA SHEET FUNCTION, HERMETICALLY SEALED AND CASE ISOLATED NOTE: Model 3312A2T is an IEPE accelerometer with 100mV/g sensitivity and TEDS electronic data sheet function. A built-in charge amplifier amplifies the signal generated by the piezoceramic shear mode seismic element to obtain the 100 mV/g sensitivity.
Page 2 OPERATING INSTRUCTIONS MODEL 3312A2T IEPE ACCELEROMETER INTRODUCTION The Dytran Model 3312A2T is a ceramic shear element accelerometer featuring IEPE operation and including the IEEE TEDS data sheet function. The self-generating seismic element, converts acceleration to an analogous voltage signal. This very high impedance signal is fed to the gate of a...
Page 3 Next, thread the Mod. 6200 mounting stud "Sensor" jack of the Dytran power unit (Models 4102, into the base of the 3312A2T. The stud should enter 4103, 4110, 4114, etc.) and switch the power on. easily and thread in up to the raised collar of the stud by hand.
Page 4 RMA number. At this time you will be to system inaccuracies. advised of the preferred shipping method. 3) If the 3312A2T is to be used in rapidly A short note describing the problem, included changing thermal environments, call the factory to ask with the returned instrument, will aid in trouble about our thermal insulating boot, Model 6215.
