Power Management Products

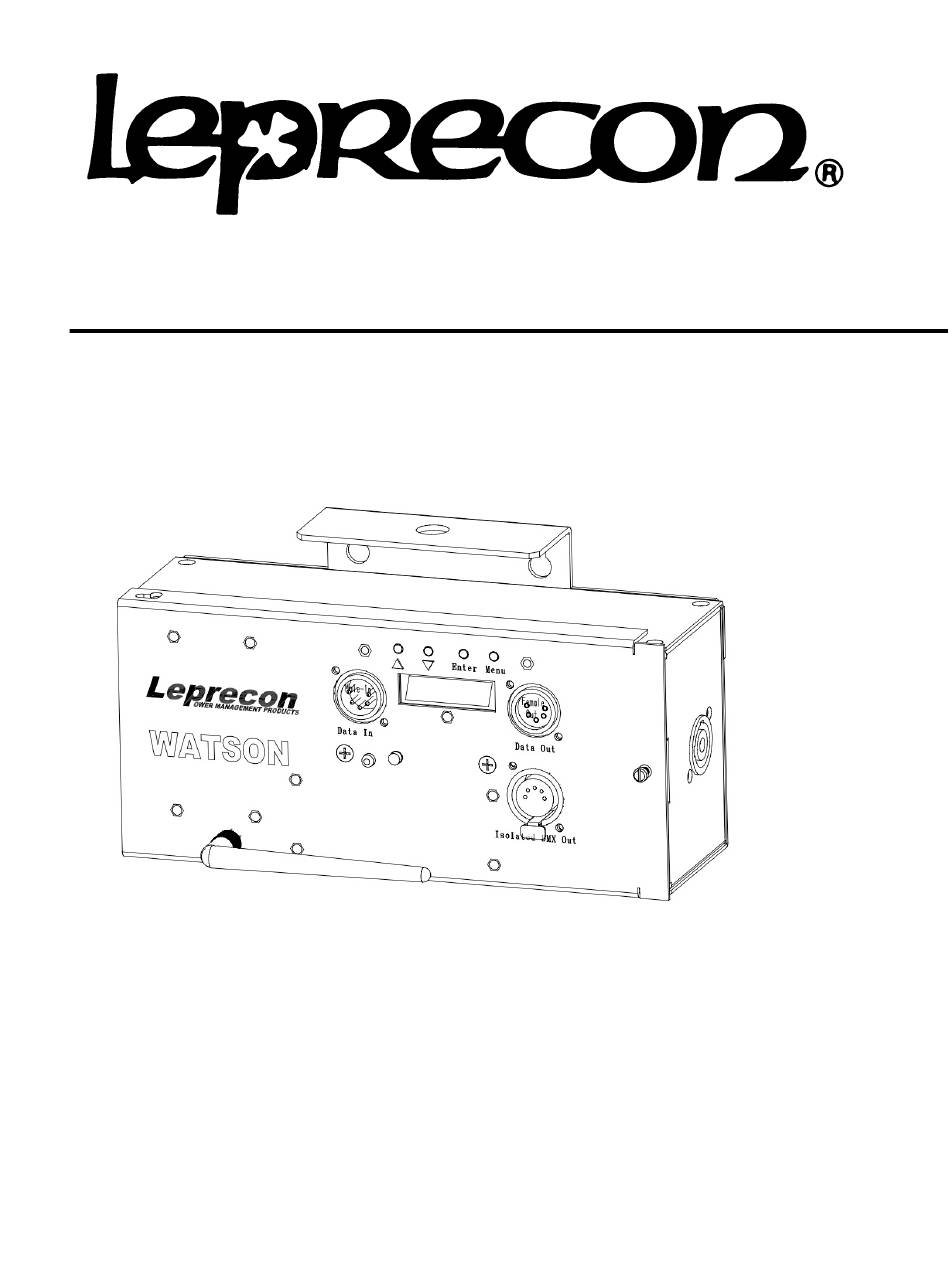

Watson Installation and User's manual
©Copyright Leprecon LLC. 2013
All rights reserved
Publication 21-1050 Rev C
This document is the property of Leprecon LLC, and is provided for service and instructional purposes
only. Possession does not imply or convey rights to use any information herein. This information is
proprietary, and may relate to patents or patents pending that are the properties of CAE, Inc. other than the
use of products manufactured by CAE, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Leprecon Watson Series
- Page 1 All rights reserved Publication 21-1050 Rev C This document is the property of Leprecon LLC, and is provided for service and instructional purposes only. Possession does not imply or convey rights to use any information herein. This information is proprietary, and may relate to patents or patents pending that are the properties of CAE, Inc. other than the...
-
Page 2: Table Of Contents
Table of Contents Front panel Controls: Watson W1 ................3 1) Introduction .........................4 2) Features and Specifications ..................4 Power Connection......................4 Ambient Temperature....................4 Load Connector ......................4 DMX Control input......................5 3) Installation........................6 Mounting ........................6 Power Connection......................6 Load Connection......................6 4) Turning on Power......................6 5) Front Panel Controls ....................7 Address Menu:......................7 Mode Menu ........................9 Delay Menu........................10... -
Page 3: Front Panel Controls: Watson W1
Front panel Controls: Watson W1 DMX output DMX Input Isolated DMX output... -
Page 4: Introduction
Introduction Watson provides two important functions to support new technology (non-incandescent) lighting fixtures. 1) Power Switching – using a set DMX address, or simply detecting DMX signal, Watson will turn off the power to fixtures when they are not in use. 2) Isolated DMX data –... -
Page 5: Dmx Control Input
250K baud; for this reason the use of microphone cable is NOT recommended. DMX rated cables are available pre- manufactured from your Leprecon dealer. For more information on the DMX standard and acceptable cable, see the Appendix at the end of this manual. -
Page 6: Installation
Watson chassis. Power Connection For full current operation, 12 gauge power cords are recommended to power Watson and the fixtures downstream. Leprecon can supply NEMA 5-15 to Powercon cables in several lengths. Load Connection Fixtures or other devices connected to the output of Watson can be turned off remotely. -
Page 7: Front Panel Controls
5) Front Panel Controls Watson uses a 4 digit display and four entry switches to set operating modes, and show the operating status. Address Menu: When the unit is first turned on, the display shows the DMX address. This is the DMX address that can be used to turn loads on and off When there is no DMX input, the address number is preceded by a dash ( - ). - Page 8 After power on, the ULD-360 remains in the Address Menu . If no buttons are pressed, the display will blank after about 15 seconds. If Watson is in ‘Automatic’ mode, it will turn on when DMX is present, and off when data is not present.
-
Page 9: Mode Menu
Mode Menu The Mode Menu sets the way Watson performs power switching. Press the Menu button once to enter set the operating mode: C1:nd The display shows C1, then the selected mode. Set the mode for the displayed address by pressing the UP/DOWN buttons. The possible modes are: Mode Description... -
Page 10: Delay Menu
Delay Menu The Non-Dim and Auto switch modes use a delay time to prevent immediate power switching. This can be useful in two situations: 1) Momentary signal loss or accidental changes will not turn off fixtures. 2) Device turn on can be delayed to sequence power on for multiple units. This can minimize the disturbance on the power system. -
Page 11: Software Version
Software Version From the main display, pressing the Menu key three times will display the current software version. In the example below, the software version is 2.02 U2:02 d1:00 ο1:ΦΦ... -
Page 12: Troubleshooting And Service
Warranty Information For a period of two years from the date of sale, Leprecon LLC will replace any defective parts and will repair any defective module returned to the factory prepaid, without charge for parts or labor. Damage caused by misuse, incorrect line voltage or connection to shorted loads is not covered under warrany. -
Page 13: Dmx 512 Information
7) DMX 512 Information The following information is a summary of the USITT 1990 standard for dimmers and controllers. A complete copy may be obtained from: USITT 10 W. 19th ST. Suite 5A New York, NY 10011-4206 Several web sites exist that have an abundance of information regarding DMX-512. As with any Internet information, consider the source.
