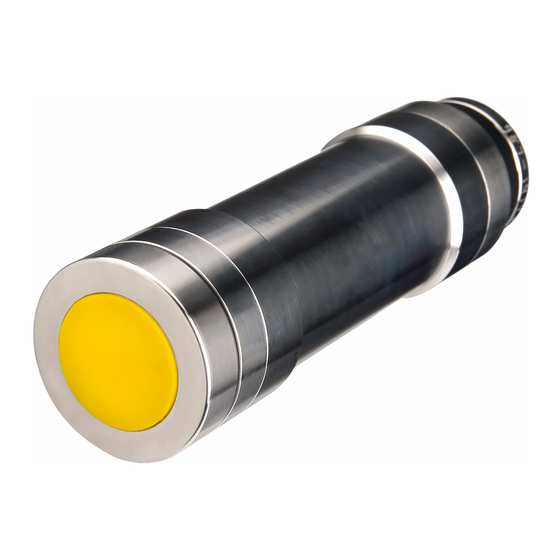

Tritech PA200 Product Manual

Altimeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

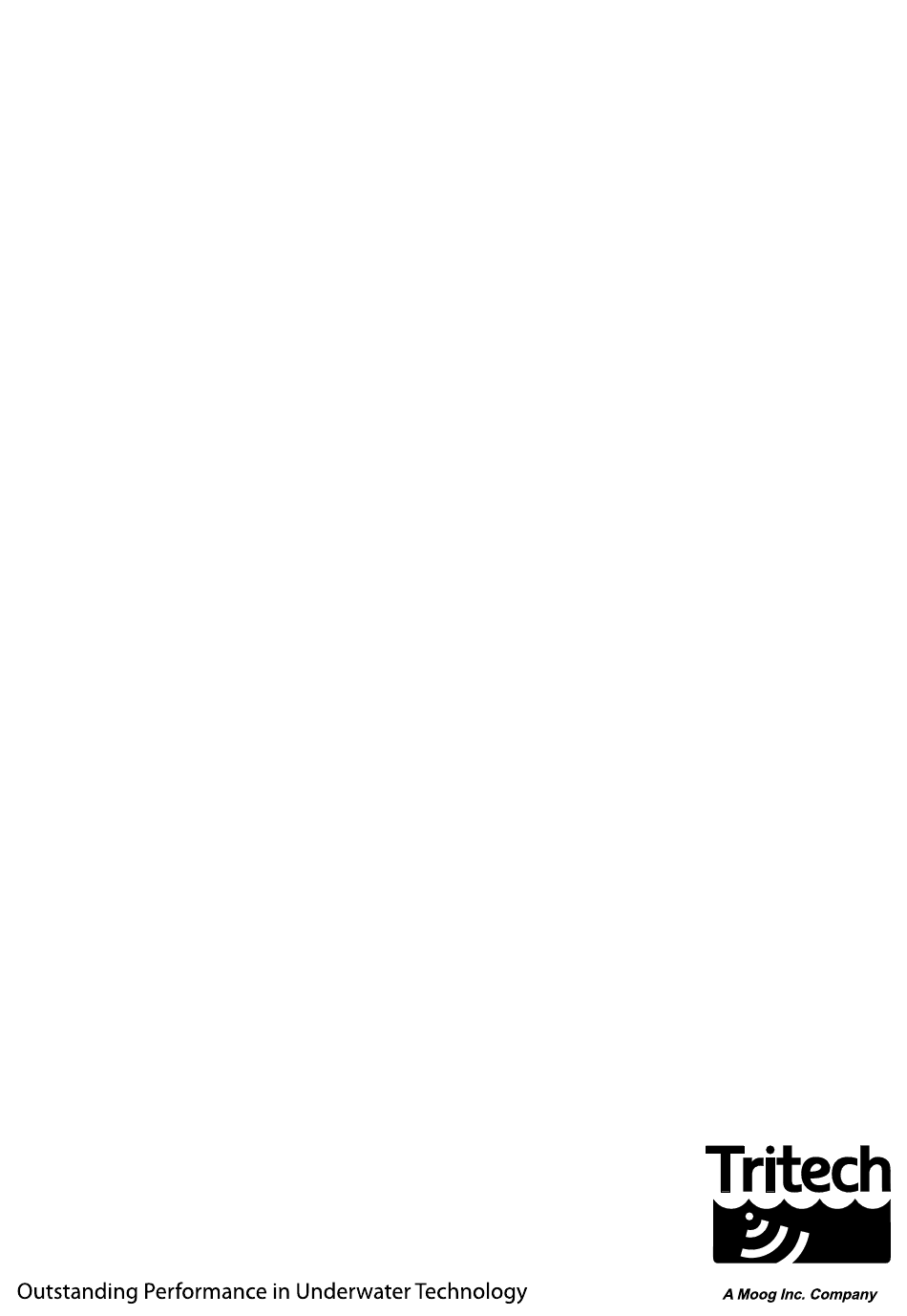

Altimeter Product Manual
Altimeter Product Manual
Covering PA200, PA500, LRPA
and Dual Frequency Echosounder
0286-SOM-00001, Issue: 09
1
© Tritech International Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tritech PA200

Summary of Contents for Tritech PA200

  • Page 1 Altimeter Product Manual Altimeter Product Manual Covering PA200, PA500, LRPA and Dual Frequency Echosounder 0286-SOM-00001, Issue: 09 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 2 The copyright in this document is the property of Tritech International Ltd. The document is supplied by Tritech International Ltd on the understanding that it may not be copied, used, or disclosed to others except as authorised in writing by Tritech International Ltd.

  • Page 3: Table Of Contents

    1. Specification ......................6 1.1. Notes on Specifications ................6 1.2. Dimensions ....................6 1.3. PA200/PA500 Electrical & Acoustic ............. 12 1.4. PA200/PA500 Physical & Environmental ............. 12 1.5. LRPA Electrical & Acoustic ................. 13 1.6. LRPA Physical & Environmental ..............13 1.7.

  • Page 4: Help & Support

    Under no circumstances should a product be returned that is contaminated with radioactive material. The name of the organisation which purchased the system is held on record at Tritech International Ltd and details of new software or hardware packages will be announced at regular intervals.

  • Page 5: Warning Symbols

    Where this symbol is present there is a serious risk of injury or loss of life. Care should be taken to follow the instructions correctly and also conduct a separate Risk Assessment prior to commencing work. 0286-SOM-00001, Issue: 09 © Tritech International Ltd.

  • Page 6: Specification

    The specifications outlined below are for standard altimeters fitted with Tritech International Ltd 6-pin connectors and are the most common variant of altimeter supplied by Tritech International Ltd. There are a large variety of options available in terms of connectors and it is outwith the scope of this manual to cover every configuration possible.
  • Page 7 Not to scale, dimensions in mm. Note The standard Tritech International Ltd 6-pin connector is rated to a maximum depth of 4000m, so any deep rated altimeters (up to 6800m) will be fitted with different connectors, the Burton 5506 shown here is a representation only.
  • Page 8 Note The standard Tritech International Ltd 6-pin connector is rated to a maximum depth of 4000m, so any deep rated altimeters (up to 6800m) will be fitted with different connectors, the Burton 5506 shown here is a representation only.
  • Page 9 Specification Altimeter Product Manual LRPA 4000m 193.5 210.5 All dimensions are in mm. Not to scale. 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 10 Specification Altimeter Product Manual LRPA 6000m Note The 6000m rated units have a Subconn MCBH6F-SS series connector as standard but other connectors are also used. 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 11 Specification Altimeter Product Manual Dual Frequency Echosounder 0286-SOM-00001, Issue: 09 © Tritech International Ltd.

  • Page 12: Pa200/Pa500 Electrical & Acoustic

    Specification Altimeter Product Manual 1.3. PA200/PA500 Electrical & Acoustic Acoustic PA200 PA500 Operating frequency 200kHz 500kHz Beamwidth 20° conical 6° conical Peak Source 187dB re 1µPa @ 1m 197dB re 1µPa @ 1m Pulse Length 300µs 100µs Range 0.7 to 100m 0.3 to 50m (0.1...

  • Page 13: Lrpa Electrical & Acoustic

    Weight in air 1.3kg 4.33kg Weight in water 0.95kg 2.93kg Depth rating 4000m 6000m Materials Aluminium alloy housing Stainless Steel housing Stainless Steel housing Operating temperature -10 to 35°C Storage temperature -20 to 50°C 0286-SOM-00001, Issue: 09 © Tritech International Ltd.

  • Page 14: Dual Frequency Echosounder Electrical & Acoustic

    1.7. Dual Frequency Echosounder Electrical & Acoustic Acoustic (Altimeter) Operating frequency 200kHz 500kHz Beamwidth Peak Source Pulse Length Refer to Section 1.3, “PA200/PA500 Electrical & Acoustic” Range Digital timing resolution AHRS-1 (Accuracy) Roll/Pitch (static) 0.5° Roll/Pitch (dynamic) 0.8° RMS Yaw (dynamic) 2°...

  • Page 15: Introduction

    This manual covers the generic aspects of altimeters and shows the specifications for the standard setup with the Tritech International Ltd 6 pin connector. There are a wide range of different configurations available for Tritech altimeters so it is important to use this manual in conjunction with the original purchase order which should detail the exact configuration of the product in hand.

  • Page 16: Installation

    3.3.1. Orientation The shape of the echosounder is designed with hydrodynamics in mind. The front of the echosounder is at the opposite side to the Tritech connector which is provided protection from water flow by the mounting bracket. 0286-SOM-00001, Issue: 09...

  • Page 17: Ahrs Sensor Axes

    The axes for the AHRS within the echosounder are shown below. 3.3.3. Mounting The mounting point on the Dual Frequency Altimeter utilises as 1⅛"-14 BSW (Whitworth) thread. This interface is shared with the mounting system for the Tritech MicronNav and Gemini products. Tritech adapters are listed below: 0286-SOM-00001, Issue: 09 ©...

  • Page 18: Long Term Use

    Refer to the maintenance section for appropriate care. 3.5. Standard Pin-Out Diagrams Caution The power should be turned off before making a connection between the sonar head and surface controller (SCU or SeaHub). 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 19 Pin 5. The pin out configurations are shown below for each type. Note that the different types require different communications boards so it is not generally possible to change from one type to another without returning the unit to Tritech. RS232 Configuration...
  • Page 20 Chassis Ground cable screen Note The Dual Frequency Echosounder does not have an analogue output. This function is used for the AHRS output. Note The AHRS output on pin 5 is RS232 ONLY 0286-SOM-00001, Issue: 09 © Tritech International Ltd.

  • Page 21: Example Test Cables

    PWR 24 VDC PA ALTIMETER 0V DC ANALOGUE OUTPUT Wiring shown is suitable for a direct connection for a PA Altimeter to a Tritech SeaHub RS485 Test Cable EXAMPLE RS485 TEST CABLE Tritech Cable Face View 9 Way Face View...
  • Page 22 Installation Altimeter Product Manual Current Loop Test Cable EXAMPLE CURRENT LOOP TEST CABLE Tritech Cable Face View CURRENT LOOP +VE YELLOW CURRENT LOOP -VE BLUE BLACK GREEN PWR 24 VDC PA ALTIMETER 0V DC ANALOGUE OUTPUT Current Loop Altimeters are not loop powered. The output current is separate from the power supply.

  • Page 23: Operation

    = units label for metres <CR><LF> = carriage return and line feed terminators. NMEA $PADBT,xxx.xx,f,yyy,yy,M,zzz.zz,F*hh<CR><LF> $DBT xxx.xx is the range in feet yyy.yy is the range in metres zzz.zz is the range in fathoms 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 24 In free running mode the unit will start to output data immediately upon power up (the data rate is about 10Hz for a PA500 or 7Hz for a PA200). If the altimeter has been set to interrogate mode it will not output data until the interrogate command (Z) is received, at which point a single data string is transmitted to the surface computer.

  • Page 25: Dual Frequency Echosounder

    Tritech Pin 5 The main output from the AHRS on the Dual Frequency Echosounder is on pin 5 of the Tritech connector. In this configuration output the AHRS output is free running. Note The output from pin 5 is RS232 Tx only 0286-SOM-00001, Issue: 09 ©...

  • Page 26: Seanet Pro & Seaking Or Super Seaprince Dst Aux Port

    RS232 or RS485 serial data from a free running altimeter. The altimeter is connected via a dual 6-pin Tritech interconnect cable which has a one-to-one wiring between the pins. The DC power input of the sonar is linked through to the AUX port for the 24V DC supply to the altimeter.
  • Page 27 For the Super SeaPrince DST the Comms Mode selection is used to control the AUX port as well as the MAIN port so the protocol and baud rates for the AUX port will need to be set correctly. 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 28 In order to change the jumper settings it will be necessary to expose sensitive electronics within the SeaKing head and so appropriate measures should be taken to protect against the possibility of static discharge which may damage the sonar head. 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 29 1. From the Windows Control Panel open Regional & Language Options and set the drop down list to English (United Kingdom) and press OK for the changes to take effect. It will be necessary to restart the Seanet Pro application after this change has been made. 0286-SOM-00001, Issue: 09 © Tritech International Ltd.

  • Page 30: Using With Seaking 700 Series (Bathy)

    4.5. AltTest Software General Guidelines The AltTest program available from Tritech provides a simple way of communication with Tritech altimeters and displaying the data. It is compatible with Microsoft Windows. Altimeter data can be logged in a raw or processed format and the processed data can be imported into a spreadsheet package for post-processing.
  • Page 31 3. Hold Last Value for selecting how long the program will hold onto the last valid altitude reading. If an altitude reading falls out of the gating range of the previous reading then it 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 32 Free Running Mode Select Free Running Mode for an altimeter which has been configured to operate as a free running altimeter. The altimeter mode is set by dip switches (see Chapter 6, Configuration). 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 33 The number of data samples plotted on the chart will be the same number used to calculate the average altitude. 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 34 2. If it is desired to continue using the existing regional settings then from the Regional & Language Options dialog find the existing language settings and choose Customise. Locate the setting for Decimal Symbol and make sure it is set to "." 0286-SOM-00001, Issue: 09 © Tritech International Ltd.

  • Page 35: Maintenance

    Note Alternative configurations may have additional serviceable items, if in doubt please contact Tritech International Ltd to establish the correct service routine. The o-ring seals should be regularly inspected, cleaned and lubricated with the appropriate greasing compound. The body of the unit should also be inspected for any obvious signs of corrosion, especially in mating surfaces (such as the waterblock).

  • Page 36: Ordering Parts

    Since there are a vast amount of different configurations of altimeters the simplest way to do this is to contact Tritech International Ltd providing the serial numbers off the unit body. Serial numbers are either located on the silver label affixed to the body tube or if this has been damaged the embossed numbers on the transducer endcap, body tube and connector endcap can be used instead.

  • Page 37: Disassembly Of The Altimeter

    The threads of the altimeter should be made up and broken out by hand, or by using light pressure on a strap wrench. The application of additional force may indicate and result in damage to the unit. 0286-SOM-00001, Issue: 09 © Tritech International Ltd.

  • Page 38: Configuration

    Fixed at: 4-20mA, RS232 or RS485 - altering this would require a new communications board. Ping rate The default ping rate for free-running mode is approximately 10Hz for a PA500 and 7Hz for a PA200 (other ping rates are available). Velocity of Sound Set to either 1470m·s or 1473m·s...
  • Page 39 On SW1 settings with ID0 to ID3 are for factory use only. ID19 to ID31 and greater than ID47 relate to application specific configurations. If the altimeter has a switch setting that is not listed, please contact Tritech prior to making any changes.
  • Page 40 Altimeter Product Manual Note SW2 Dip Switch On SW2 dip switch 1, 5 and 6 are Analogue Scaling for factory use only and should not be changed without direct instruction from Tritech. 100m 0286-SOM-00001, Issue: 09 © Tritech International Ltd.

  • Page 41: Jumper Settings For Seaking With Altimeter On Aux Port

    Seanet Setup program. ARCNET Sonar with RS485 Altimeter Connection diagram COMD(F)/V3 Sonar PCB COMGV3/COMV5 Sonar PCB COMV5 Mod A Sonar PCB 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 42 Jumper Settings for SeaKing with Altimeter on AUX Port Altimeter Product Manual RS232 Sonar with RS485 Altimeter Connection diagram COMD(F)/V3 Sonar PCB COMGV3/COMV5 Sonar PCB COMV5 Mod A Sonar PCB 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
  • Page 43 4 for this function. For an RS232 altimeter to be used with a standard double ended Tritech cable the analogue output on the altimeter should be disabled and pins 4 and 5 on the SeaKing COM PCB must be shorted together.
  • Page 44 4 for this function. For an RS232 altimeter to be used with a standard double ended Tritech cable the analogue output on the altimeter should be disabled and pins 4 and 5 on the SeaKing COM PCB must be shorted together.

  • Page 45: Glossary

    (in RS232, RS485 or ARCNET) and converts it into a signal suitable for the USB port of the computer. SeaKing A specific sonar produced by Tritech International Ltd but also refers to the family of sonar equipment manufactured by Tritech International Ltd comprising of the SeaKing, SeaKing DST scanning and profiling sonars and the Hammerhead survey sonar.
  • Page 46 Glossary Altimeter Product Manual Tritech waterblock The 4000m depth rated connector developed by Tritech International Ltd for their subsea equipment. 0286-SOM-00001, Issue: 09 © Tritech International Ltd.
