MODEL CDG003 INSTALLATION INSTRUCTIONS
SELECTING THE CORRECT DOOR CLOSER TO SUIT DOOR SIZE
Minimum size 3 MUST be used on fire doors.
Hold open arms must NOT be used on fire doors.
* Minimum size for use on fire doors.
PLEASE LEAVE THESE INSTRUCTIONS WITH THE END USER
Tel: 01228 511030 Fax: 01228 511885 Web: www.carlislebrass.com

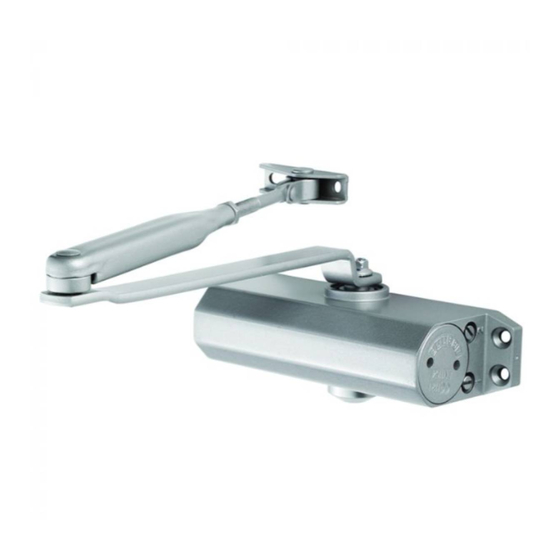

Fixed Size 3 Closer c/w Fig. 6 Bracket
CDG003
Fixed Size 3 Closer c/w Fig 6 Bracket
1121 - CPR - AD5232
EN 1154:1996 + A1:2002 + AC:2006
Fig. 1 Fitting
4
8
3
1
1
I M P O R T A N T I N F O R M A T I O N
Carlisle Brass Ltd.
Stancliffe Street, Mill Hill, Blackburn, BB2 2QR
15
Fig. 6 Fitting
3
3
8
3
1
Power Size
3*
1
3
Max. Width of Door
Max. Mass of Door
950mm
60kg
