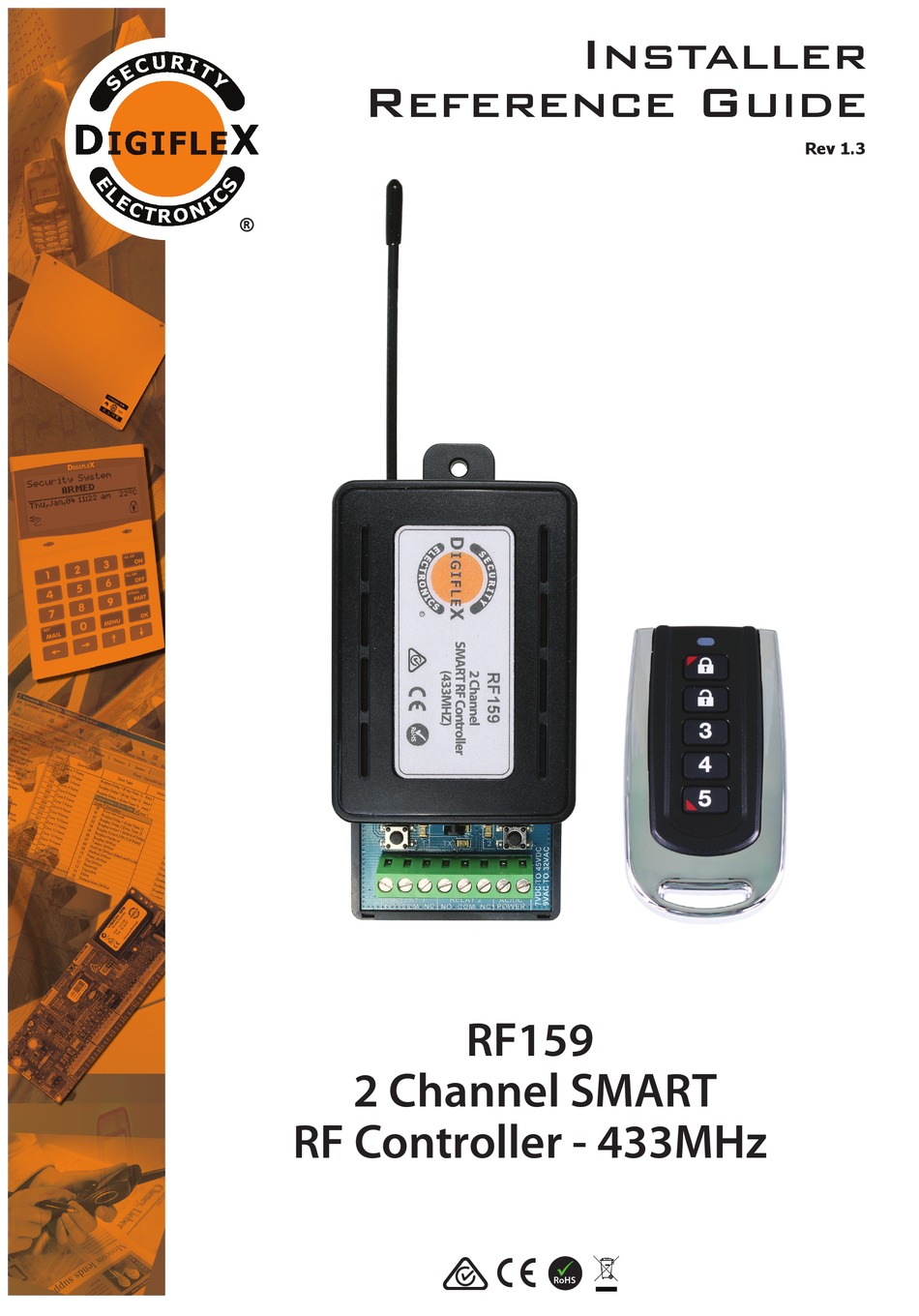

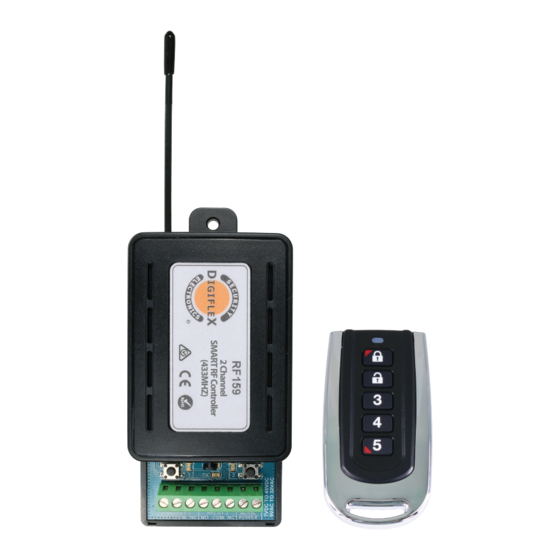

- Page 1 Installer Reference Guide Rev 1.3 ® RF159 2 Channel SMART RF Controller - 433MHz RoHS...
-
Page 2: Mounting Considerations
• the RF159 an ideal choice for controlling gates, garage If range is not achievable due to environmental or doors, lights or security systems. specification limitations then look at relocating the unit to a more appropriate location. - Page 3 Receiver Operation The RF159 will turn on the green RX LED to indicate the unit is powered and it will blink off each time a signal is re- ceived. Each time a keyfob button is pressed the corresponding relay will operate and a confirmation signal is sent to the keyfob to indicate a successful 2 way transaction.
- Page 4 Table 2: RF159 Keyfob Programming Receiver LED Indicators The RF159 2 Way Output Module includes RED and GREEN LED indicators which provide visual feedback during sys- tem operation. See Table 3 for information on the indicator colours and meanings. LED Indicators...
- Page 5 A.C. or D.C. 9 - 28 V 3rd party device. Relay 2 terminal connections are used to connect to a 3rd party device. Figure 2: RF159 Connection Diagram Copyright © 2020 E&OE P/N: RF159IRG Rev 1.3 Page ...
- Page 6 RF159 Housing The RF159 is housed in 3 piece plastic enclosure comprising a base plate , top cover and a terminal cover. The top cover is fixed to the base using a Phillips head screw. The top cover needs to be removed to install the wire antenna.
- Page 7 RF159 Specifications Part Number: RF159 - 2 Channel SMART RF Controller - 433MHz Operating Voltage: 9-28V A.C. / D.C. (70mA @ 12V D.C.) Frequency: 433.42 MHz Output Power -0.99 dBM Dimensions: 114mm (W) 128mm (W with Mounting Tab), 62mm(D), 28mm(H) Environment: 0˚...
- Page 8 IGIFLE 18 Brumby Street Seven Hills NSW 2147 AUSTRALIA Phone: (+612) 97417000 Email: sales@digiflex.com.au www.digiflex.com.au Our Vision Is Your Peace Of Mind Made in Australia Copyright © 2002-2020 Digiflex Pty Ltd P/N : RF159IRG Rev 1.3...
