SERVICE MANUAL
EN
PROV-650 - SERIES:
IMPORTANT! DO NOT DESTROY
It is the Customer's responsibility to have all operators and service personnel read and understand
this manual.
Contact your local Carlisle Fluid Technologies representative for additional copies of this manual.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS PRODUCT.
https://www.carlisleft.eu/library/details/devilbiss-pro-visor-prov-650-service-bulletin
SB-E-25.0520 R1.5 (09/2020)
www.carlisleft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DeVilbiss ProViSOR PROV-650 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Carlisle DeVilbiss ProViSOR PROV-650 Series

  • Page 1 IMPORTANT! DO NOT DESTROY It is the Customer's responsibility to have all operators and service personnel read and understand this manual. Contact your local Carlisle Fluid Technologies representative for additional copies of this manual. READ ALL INSTRUCTIONS BEFORE OPERATING THIS PRODUCT. https://www.carlisleft.eu/library/details/devilbiss-pro-visor-prov-650-service-bulletin SB-E-25.0520 R1.5 (09/2020)
  • Page 2 Providing all conditions of safe use / installation stated within the product manuals have been complied with and also installed in accordance with any applicable local codes of practice. Signed for and on behalf of Carlisle Fluid D Smith Director of Sales (EMEA)

  • Page 3: Functional Description

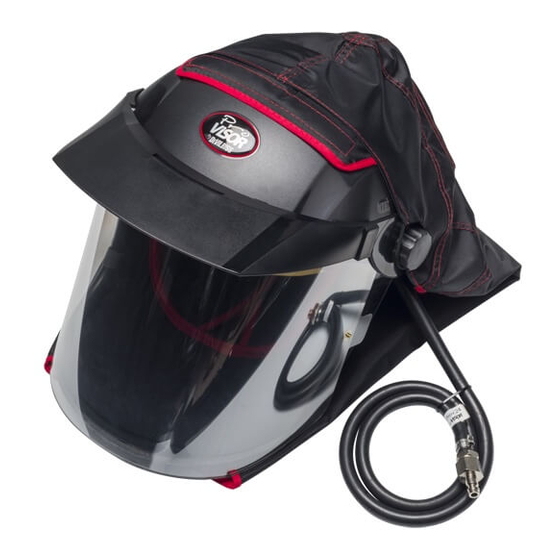

    INTRODUCTION Thank you for choosing the Pro-Visor, we hope it will give many hours of trouble free service. Please read all the following instructions carefully and keep all literature safe as it will be necessary when ordering spares. The Pro-Visor has been designed specifically for paint spraying and associated tasks. The materials used in the Pro-Visor have been carefully selected to provide a product of minimum weight and maximum safety.
  • Page 4 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasise important safety information as follows: WARNING CAUTION NOTE Hazards or unsafe practices which could result in Hazards or unsafe practices which could result in Important installation, operation or maintenance severe personal injury, death or substantial minor personal injury, product or property information.
  • Page 5 WARNING At very high work rates the pressure inside the device may become negative at peak inhalation flow. Adequate protection may not be provided by this apparatus in certain highly toxic atmospheres. The air supply hose item 23 or 24 must be used to maintain CE compliance. Only use DeVilbiss genuine spare parts, to ensure CE approval and safety is maintained.

  • Page 6: Warning Device

    WARNING DEVICE A whistle is incorporated to warn the operator that an insufficient quantity of breathing air is being supplied to the Pro-Visor. Should the whistle sound during use, the operator should vacate the spraying area immediately with the unit still on and check the air supply, i.e. look for crushed or cut supply hose. Each time the Pro-Visor is used the device should be checked in a safe area, to do this the headpiece should be worn as normal and the air supply reduced to approximately 1 bar or less, this will cause the whistle to sound, when the pressure is restored to a safe level the whistle silences.

  • Page 7: Maintenance And Cleaning

    MAINTENANCE AND CLEANING All components of the Pro-Visor may be cleaned with a damp cotton cloth and mild disinfectant. If the unit is immersed in water the foam on the visor will need time to dry. The unit or parts must be replaced when it no longer gives the operator the original designed protection i.e.

  • Page 8: Replacement Parts

    REPLACEMENT PARTS REF. PART No. DESCRIPTION PRO-VISOR COMPLETE UNIT PROV-650 PROV-37-K BELT AND REGULATOR VISOR HEAD PIECE & BREATHING AIR TUBE PROV-41-K TEAR-OFF VISORS PACK OF 10 PROV-36-K10 PROV-36-K50 TEAR-OFF VISORS PACK OF 50 RIGID ACETATE VISOR & FACE SEAL PROV-17-K BREATHING AIR TUBE COMPLETE PROV-24-K...

  • Page 9: Exploded View

    REPLACEMENT PARTS - CONTINUED REF. PART No. DESCRIPTION SPN-12-K SPANNER FOR FILTER & CAP PROV-26-K STORAGE BAG - NOT SHOWN H-6085-QD 10M AIR HOSE - 5/16"ID MALE & FEMALE QD’s - NOT SHOWN 10M AIR HOSE - 5/16"ID, ¼” BSP G SWIVEL F CONNECTORS - NOT H-6065-B SHOWN EXPLODED VIEW...
  • Page 10 HEAD WIDTH ADJUSTMENT RIGID VISOR NOTE: RIGID VISOR TO LOCATE ON SPACER SPACER BROW GUARD KNOB ADJUSTABLE HEADPIECE ITEM 11 (SEE TABLE) HEAD WIDTH ADJUSTMENT SPACER/STUD COLOUR HEAD SIZE SMALL YELLOW MEDIUM GREEN LARGE BLACK X-LARGE (NO SPACER REQUIRED) 10/12 SB-E-25.0520 R1.5 www.carlisleft.com...
  • Page 11 PRO VISOR - MAINTENANCE RECORD PART CHANGED DATE NAME 11/12 SB-E-25.0520 R1.5 www.carlisleft.com...

  • Page 12: Warranty Policy

    WARRANTY POLICY This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided, may invalidate any warranty.
