Summary of Contents for caenrfid qDock RA0005

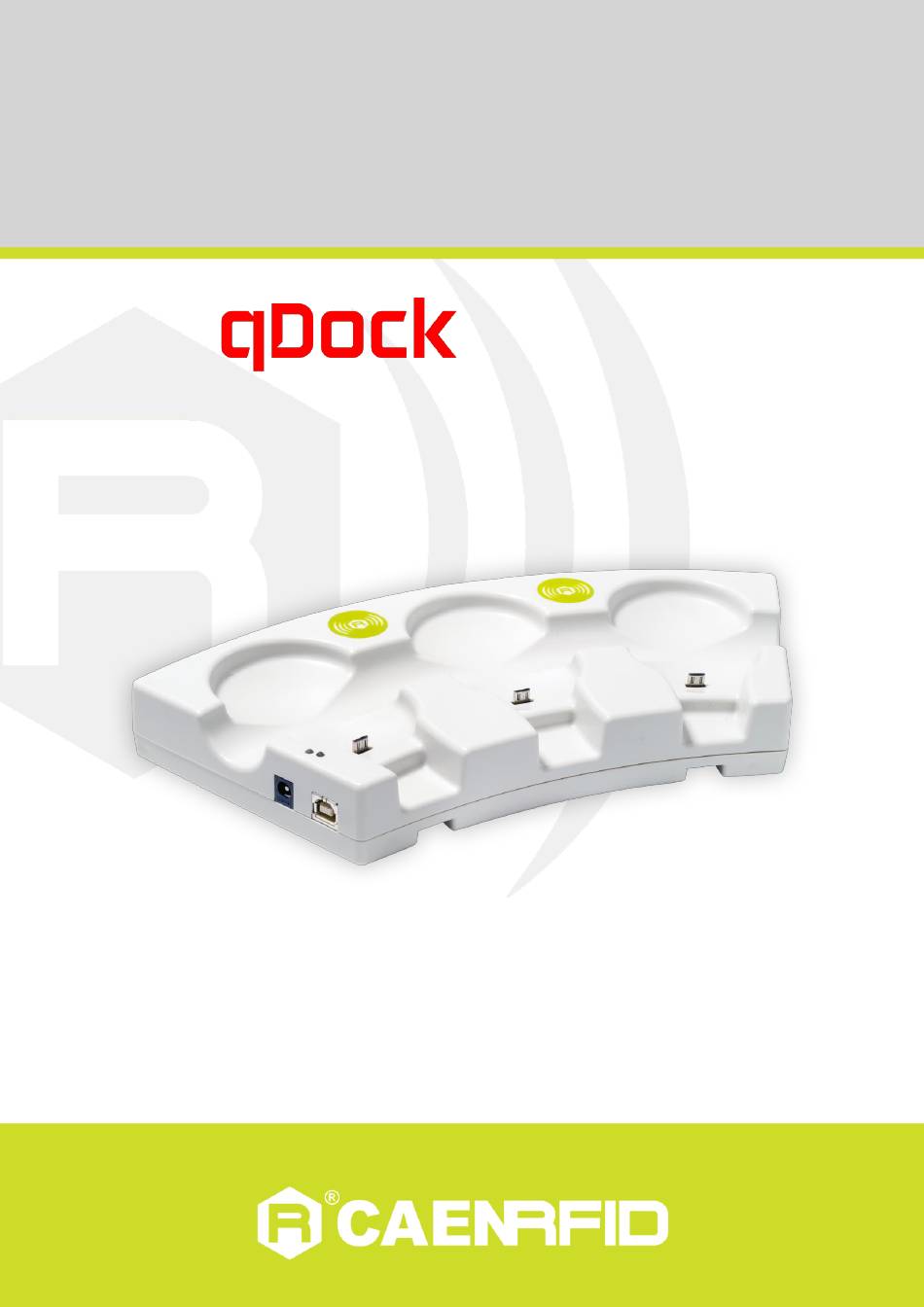

- Page 1 TECHNICAL INFORMATION MANUAL Revision 01 – 31 May 2019 RA0005 qIDmini docking station...
-
Page 2: Scope Of Manual
The information contained herein has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. CAEN RFID reserves the right to modify its products specifications without giving any notice; for up to date information please visit www.caenrfid.com. Federal Communications Commission (FCC) Notice This device was tested and found to comply with the limits set forth in Part 15 of the FCC Rules. - Page 3 Disposal of the product Do not dispose the product in municipal or household waste. Please check your local regulations for disposal/recycle of electronic products.
-
Page 4: Table Of Contents
RA0005 CE Declaration of Conformity ..........................9 qDock RA0005 FCC Grant ................................10 List of Figures Fig. 1.1: qDock RA0005 qIDmini docking station - White ........................5 Fig. 1.2: qDock RA0005 qIDmini docking station - Grey ..........................5 Fig. 1.3: qDock RA0005 Accessories ................................6 List of Tables Tab. -
Page 5: Introduction
Product Description The qDock RA0005 is a low cost, Multiple Charging Docking Station & USB 2.0 Hub that allows to charge and connect for Data & Firmware upgrade up to three qIDmini R1170I readers directly thought their micro USB connector and without cables. -
Page 6: Accessories
No. 2 small screws (ø 3 mm) Fig. 1.3: qDock RA0005 Accessories Ordering Options Code Description WRA0005XAAAA RA0005 - qDock - qIDmini docking station - White Accessories WRA0005XGAAA RA0005 - qDock - qIDmini docking station - Gray INTRODUCTION - qDock RA0005 Technical Information Manual... -
Page 7: Technical Specifications
2h (typical) Operating Temperature -10°C to +55°C IP Rating IP 40 (W)288 x (L)140 x (H)34 mm max. Dimensions (11.3 x 5.5 x 1.3 in Enclosure Tab. 2.1: qDock RA0005 Technical Specifications Table TECHNICAL SPECIFICATIONS – qDock RA0005 Technical Information Manual... -
Page 8: Regulatory Compliance
See § qDock RA0005 CE Declaration of Conformity page 9 for the qDock RA0005 CE Compliance Certificate. RoHS EU Directive qDock RA0005 docking station is compliant with the EU Directive 2011/65/CE on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS2). -
Page 9: Qdock Ra0005 Ce Declaration Of Conformity
RA0005 CE DECLARATION OF CONFORMITY qDock RA0005 CE Declaration of Conformity CAEN RFID Srl Via Vetraia, 11 55049 Viareggio (LU) Italy Tel.: +39.0584.388.398 Fax: +39.0584.388.959 Mail: info@caenrfid.com Web site: www.caenrfid.com herewith declare under our own responsibility that the products: Code:... -
Page 10: Qdock Ra0005 Fcc Grant
RA0005 FCC GRANT qDock RA0005 FCC Grant...
