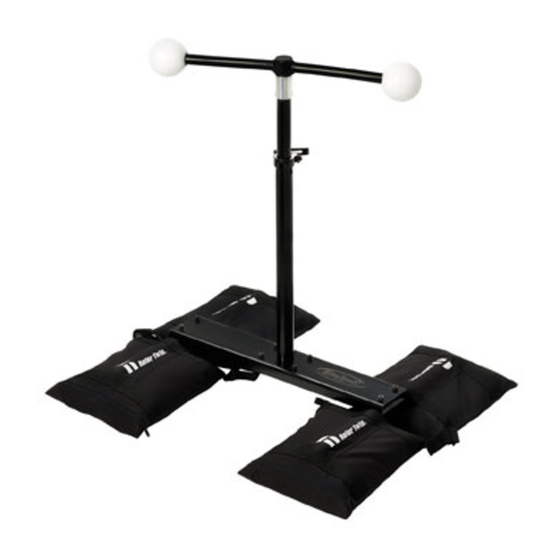

ROTOR TWIN

Assembly

Use the Hex Key and small open-end wrench (included) to tighten all bolts used to
secure both Base Plate Legs and the Base Plate Post to the Base Plate. For proper use
the Rotor Twin® Base Legs must be 'weighed down' during use (Sand Bags with
separate liners are included – sand is not included).
Warning: The Rotor Twin® is not a toy and requires the use of a bat to be used
properly as a hitting station. Appropriate care should be taken to assemble and set
up the Rotor Twin® hitting station correctly so as to not cause undue wear and tear
to the Rotor Twin® and to ensure the safety of the persons using and around the
Rotor Twin® hitting station.

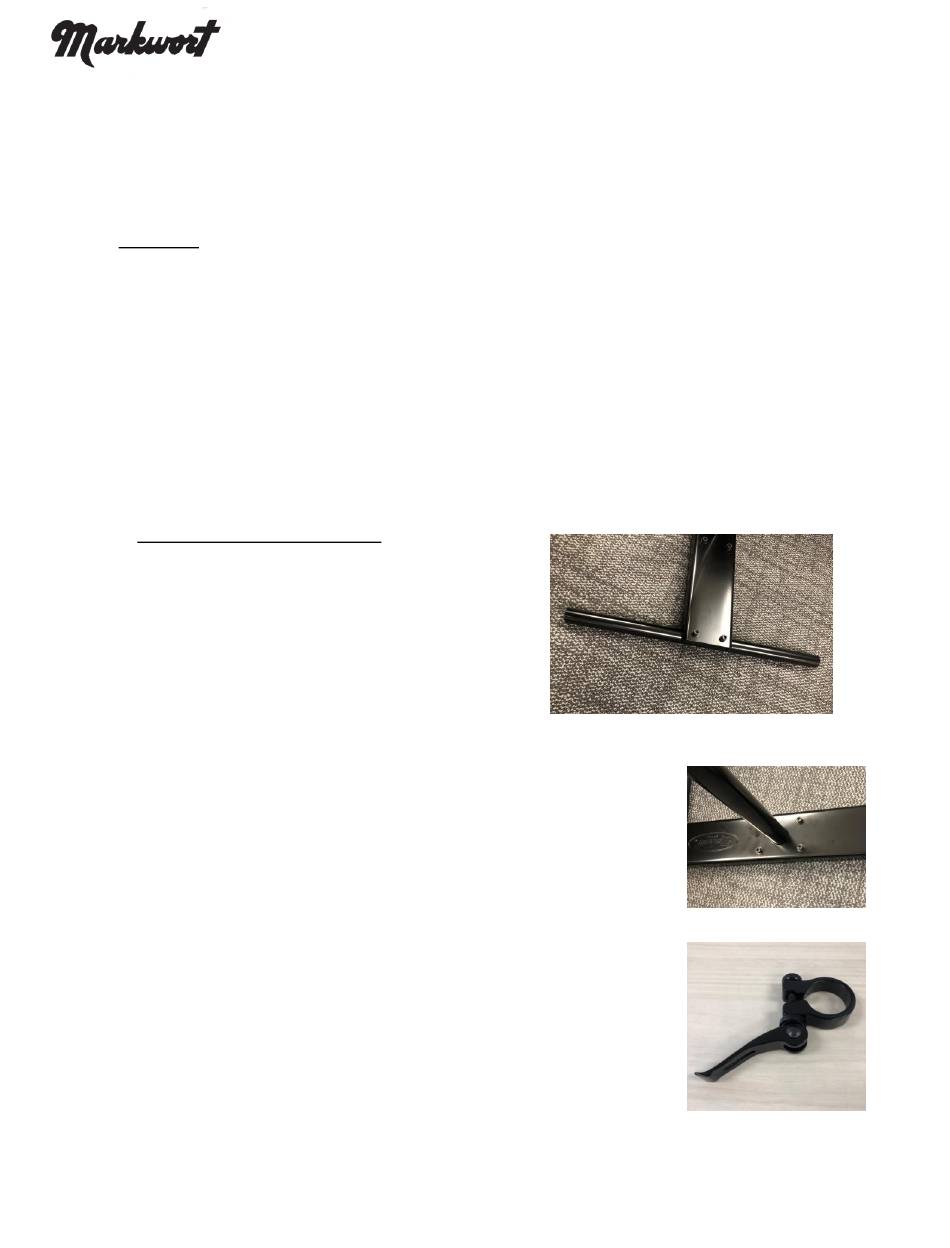

1. Attach base legs to base plate by lining up the
two holes of each leg with the holes at each end of
the base plate. Place one of the long bolts and a flat
washer through one of the holes on the end of the
base plate and screw into the appropriate hole in one
of the base legs. Repeat procedure to insert
remaining three bolts (two bolts per leg). Tighten.
2. Attach base plate post to base plate by removing
height adjustment lever and sliding the post up through the bottom of
the base plate until its base is snug against the underside of the base
plate. Place a flat washer on each of the short bolts and insert them
through the top of the base plate and through the corresponding holes
in the base plate post. Attach the lock nuts to each bolt and use the Hex
Key and open-end wrench to tighten.
3. Place the height adjustment lever into place on top of the base
plate post. Notice the adjustment screw that is used to adjust (by hand
only) the tension to hold rotor post at desired height. In order for the
Height Adjustment Lever to fit properly it must be right-side-up (see
engraved text on the Height Adjustment Lever).
®
: Swing Trainer & Hitting Station
Assembly and Use Guidelines
Item #: 100006
MARKWORT SPORTING GOODS COMPANY
1203 AMBASSADOR BLVD. SAINT LOUIS, MISSOURI 63132 USA
