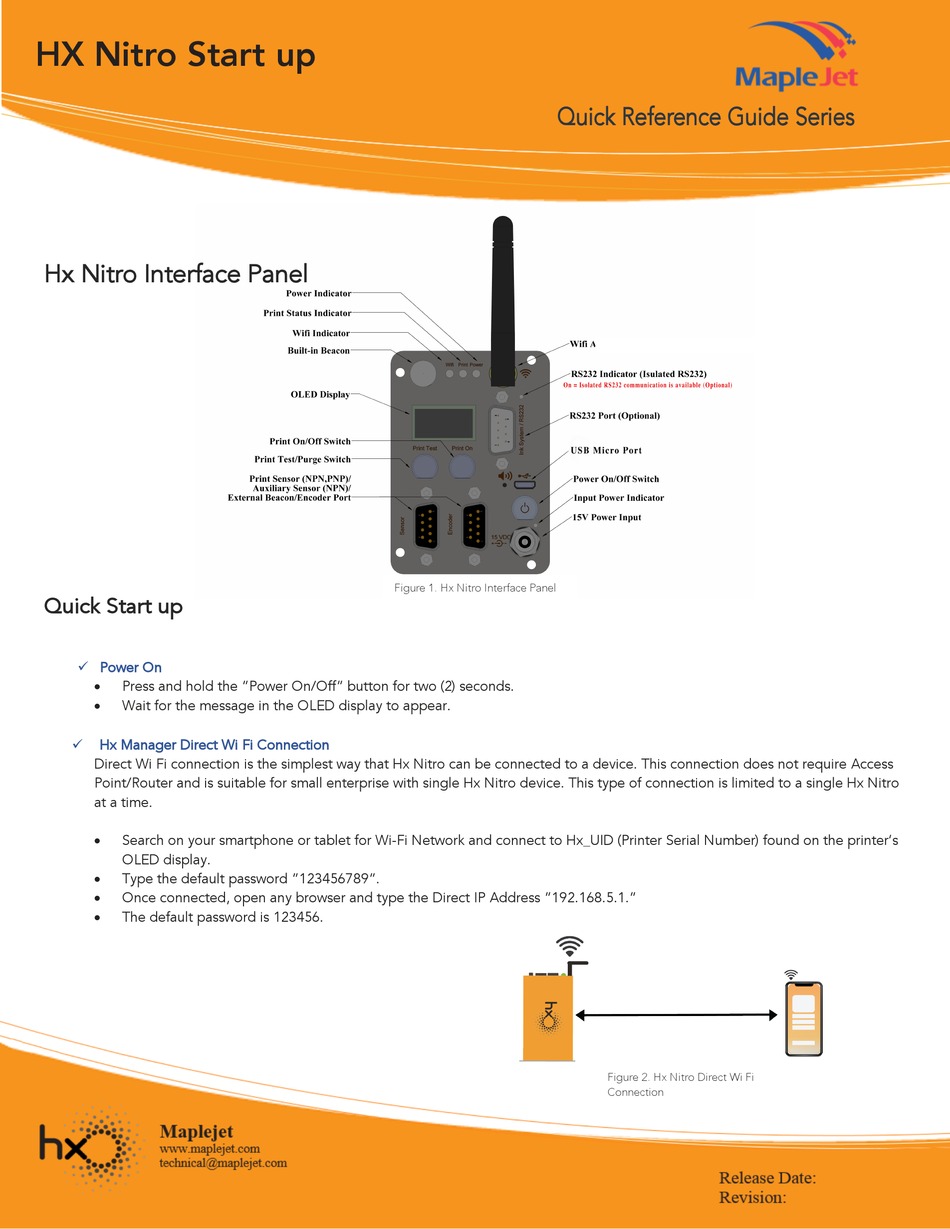

HX Nitro Start up

Hx Nitro Interface Panel

Quick Start up
ü Power On
•
Press and hold the "Power On/Off" button for two (2) seconds.
•
Wait for the message in the OLED display to appear.

Hx Manager Direct Wi Fi Connection

ü
Direct Wi Fi connection is the simplest way that Hx Nitro can be connected to a device. This connection does not require Access
Point/Router and is suitable for small enterprise with single Hx Nitro device. This type of connection is limited to a single Hx Nitro
at a time.
•
Search on your smartphone or tablet for Wi-Fi Network and connect to Hx_UID (Printer Serial Number) found on the printer's
OLED display.
•
Type the default password "123456789".
•
Once connected, open any browser and type the Direct IP Address "192.168.5.1."
•
The default password is 123456.
Quick Reference Guide Series
Figure 1. Hx Nitro Interface Panel
Figure 2. Hx Nitro Direct Wi Fi
Connection
