Summary of Contents for MakeX Starter 2020

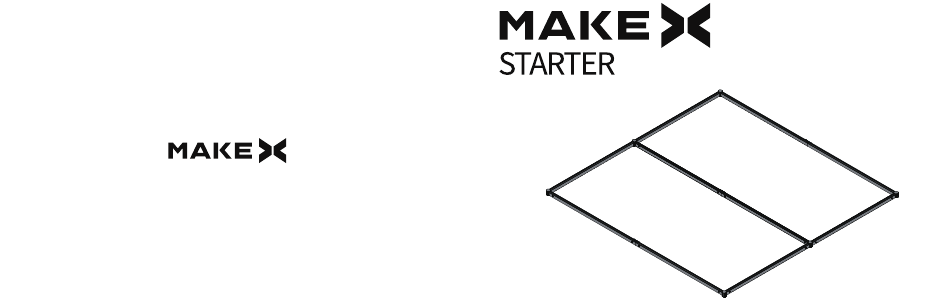

- Page 1 2020 Frame Expansion Kit Assembly Instructions 边框扩展包搭建步骤图 D1.1.1_KD000000000...
- Page 2 Parts List 零件清单 Parts and Quantities\零件及数量 Index\编号 Parts and Quantities\零件及数量 Index\编号 Parts and Quantities\零件及数量 Index\编号 Flat Beam 1126 Flat Beam Connector B Flat Beam Connector A 4× 4× 4× 扁铝1126 扁铝接驳条装配体 扁铝连接块A Flat Beam Lock Flat Beam 1173 Screw M4*8mm 8×...
- Page 3 Octagonal Pillar Components Assembly Instructions 八棱柱组件安装方式 Short Side Frame Components Assembly Instructions 短边框组件搭建方式 2× 1× 1× 2×...
- Page 4 Long Side Frame Components Assembly Instructions 长边框组件搭建方式 1× 1× 1× 1×...
- Page 5 2× 1× 3×...
- Page 6 Frame Combination Method 1 扁铝边框组合方式一 Octagonal Pillar Components Short Side Frame Components 4× 4× 八棱柱-组件 短边框-组件 Long Side Frame Components Long Side Frame Components 3× 3× 长边框-组件 长边框-组件...
- Page 7 Frame Combination Method 2 扁铝边框组合方式二 Components Short Side Frame 4× 短边框-组件 Components Long Side Frame 4× 长边框-组件...
- Page 8 Frame Combination Method 2 扁铝边框组合方式二 Components Short Side Frame 4× 短边框-组件 Components Long Side Frame 4× 长边框-组件...
- Page 10 我在这里！ I am HERE!
