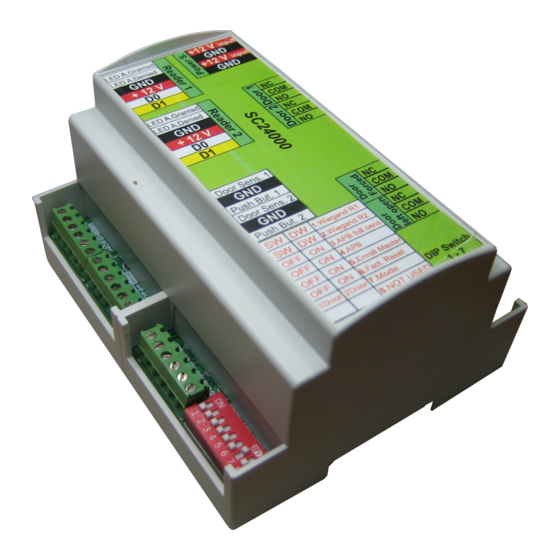

SC24000
CONTENTS:
.................................................................................................. 1
.................................................................................................. 2
.................................................................................... 3
................................................................................................. 4
.................................................................................... 4
.................................................................................... 5
.................................................................................... 7
................................................................................................. 8
12. Programming in double security mode (LCSP) ........................................... 9
1. FEATURES
• Programmable trough readers
• 4000 users (Cards)
• 2 reader inputs (Auto detect Wiegand26 / Wiegand34)
• 2 door relays (2 x 250VAC/4A)
• 2 door sensor inputs
• 2 push button inputs
• 2 Alarm relays: Output 1 (door forced alarm), Output 2
(door left open alarm)
• Programming done with Master1&2, Delete, Reset APB,
Master 1 and Master 2 card
• Adjustable Door relay time (1 - 250sec, or ON/OFF(toggle)
mode)
• Anti Pass Back option
• Normal wiegand mode (card only) and LCSP mode (card and
PIN code) on any reader
• Shadow delete card - per user or per group of users
• Max. Users in 1 groups: 4000 (each group has 1 card)
• Single door mode / 2 readers (one reader on each side of the
door)
• 2 door mode / 2 readers (one reader on each door)
• 60 sec lockout after 15 invalid cards
• Enroll sequential block of cards - max. block of 100 cards

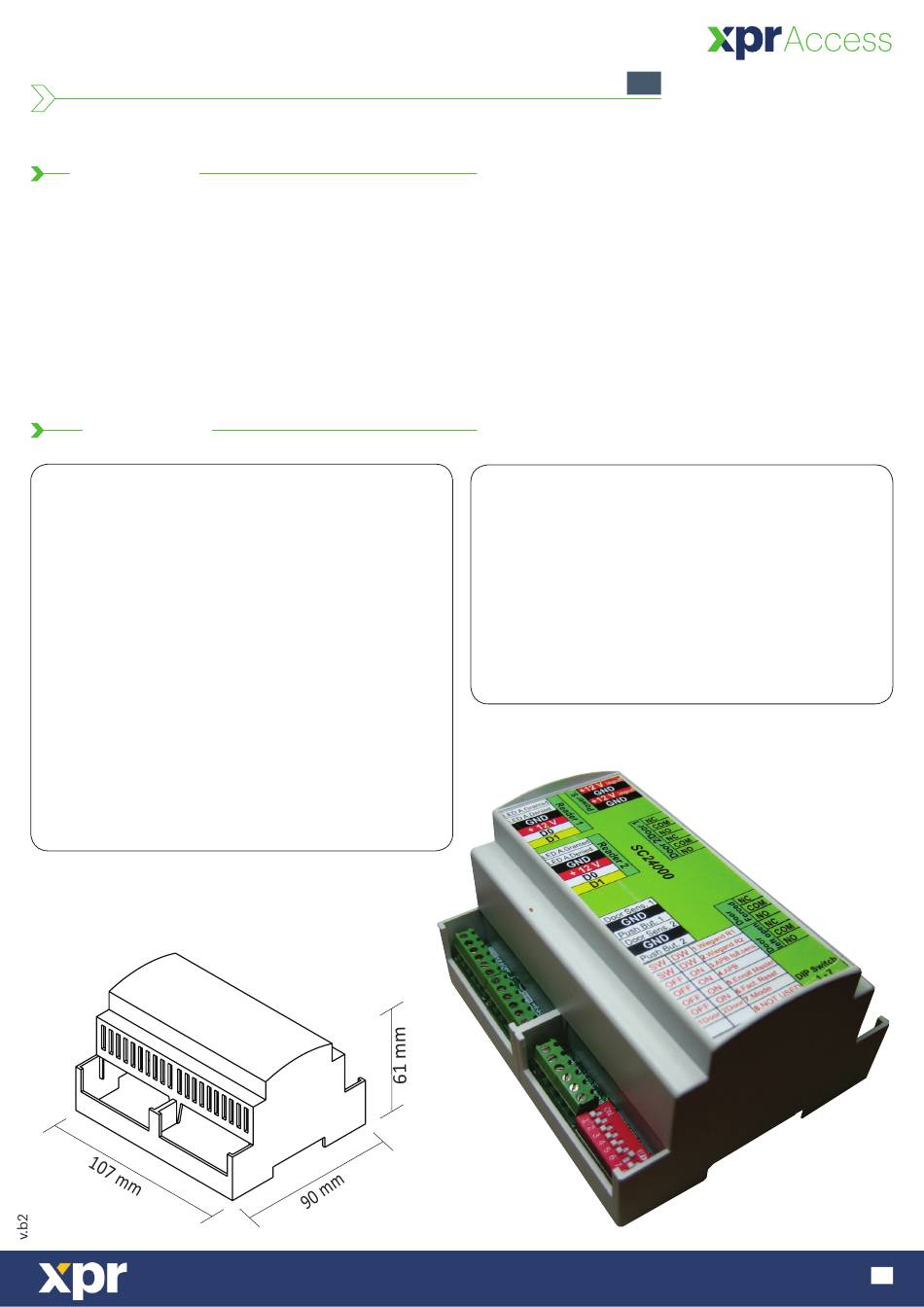

2 Door standalone access control unit
.......................................................... ............. 2
....................................................................... 3
www.xprgroup.com
EN
............. ... 8
Electrical Characteristics
Operating Voltage:
8 to 15V DC
Current consumption :
max. 180 mA (without readers)
Door Relays:
250 VAC/4A
Output Relays:
250 VAC/4A
Environmental Characteristics
Operating Temperatures :
Operating Humidity :
PCB Dimensions (mm) 102 L x 86 W
0ºC to +50ºC
0 to 95% (non-condensing)
1
Advertisement
Table of Contents
Summary of Contents for XPR Access SC24000
-
Page 1: Table Of Contents
SC24000 2 Door standalone access control unit CONTENTS: 1. Features ....................1 2.Mounting ....................2 3.Typical two door application ............... 2 4.Terminal block description ............... 3 5. DIP switch settings ..................3 6. Wiring ....................4 7. Factory reset .................. -
Page 2: Mounting
2. MOUNTING Rear view On wall 74,35mm On DIN Rail 3. TYPICAL TWO DOOR APPLICATION www.xprgroup.com... -
Page 3: Terminal Block Description
4. TERMINAL BLOCK DESCRIPTION Led Green - 12 VDC led’s Led Red - Power Supply Reader 1 12 VDC power supply 12 VDC Data0 wiegand Data1 Door 1 Relay Led Green - led’s Led Red - Reader 2 Door 2 Relay power supply 12 VDC Data0... -
Page 4: Wiring
6. WIRING 6.1 WIRING KEPADS LCSP, VKP, INOX, MTPAD-M 7. FACTORY RESET 1. Turn OFF the power Supply 2. Put DIP Switch 6 in position ON 3. Turn ON the power supply Green LED - ON, Red LED - blinking (wait for the Red LED to go OFF) 4. -
Page 5: Programming
System can work without all master cards inserted (ex. Only Master, Delete and APB can be active). Minimum master cards are two (Master1&2 and Delete) 5. Put the dip switch in position OFF (SC24000 will return to operational mode) Mark the master cards with the stickers provided in the kit... - Page 6 Enroll Sequential Block of Cards Note: Enroll a Block of 100 sequential cards assigned to Door1: There is no sequence of numbering Mifare cards. 1. Present Master1 Card Green LED- ON, Red LED - ON Note: 2. Present Shadow Card Green LED - ON, Red LED - OFF Before enrolling block of cards, 3.
-
Page 7: Anti Pass Back
Set Door1 Open Time 1. Present Master 1 Card 3 times Green LED - OFF, Red LED - ON 2. Present Delete Card Green LED - blinks twice, Red LED - ON Present the card X times for X seconds (Door open Time) 3. -
Page 8: Examples
The programming with Keypad is same as programming with proximity reader. Please refer to programming explained on pages 4 to 7, just replace the word “Card” with “PIN Code” Keypad settings Set the keypad to be compatible with SC24000 Standalone Controller Press B+000000 to enter the menu Press 6... -
Page 9: Programming In Double Security Mode(Lcsp)
System can work without all master cards inserted (ex. Only Master, Delete and APB can be active). Minimum master cards are two (Master1&2 and Delete) 5. Put the dip switch in position OFF (SC24000 will return to operational mode) Mark the master cards with the stickers provided in the kit... - Page 10 Enroll a User 1. Present Master Card ANY 4 digit Code Green LED - ON, Red LED - ON 2. Present Shadow Card ANY 4 digit Code Green LED - ON, Red LED - OFF 3. Present User Card ANY 4 digit Code Green LED - blinks twice on each user card (or multiple User cards + ANY 4 digit Code) 4.
- Page 11 Delete ALL Users 1. Present Delete Card + ANY 4 digit Code Green LED - ON, Red LED - ON 2. Present Master 1&2 Card + ANY 4 digit Code 3 times Green LED - ON, Red LED - ON, Orange LED blinks once 3.
- Page 12 Set door left open Alarm To set 40 seconds for door left open time: 1. Present Master1&2 Card + ANY 4 digit Code 3 times Green LED - OFF, Red LED - ON 2. Present Delete Card + ANY 4 digit Code 4 times Green LED - blinks twice, Red LED - ON (4 x 10 sec.
