Summary of Contents for bluefin BrightSign Built-in Series

  • Page 1 BrightSign Built-in Manual & Specifications Version 2.1 / July 25 , 2018...
  • Page 2: Table Of Contents

    Table of Contents Overview ............3 BrightAuthor and Configuration ......4 BrightAuthor Setup ..................... 4 BrightSign Player Setup ..................... 5 BrightSign Player Publishing ..................6 BrightSign Firmware Update ..................7 Controlling the LED’s ....................8 Screen Menu ............. 9 Ports .............. 10 Player Specifications ........
  • Page 3: Overview

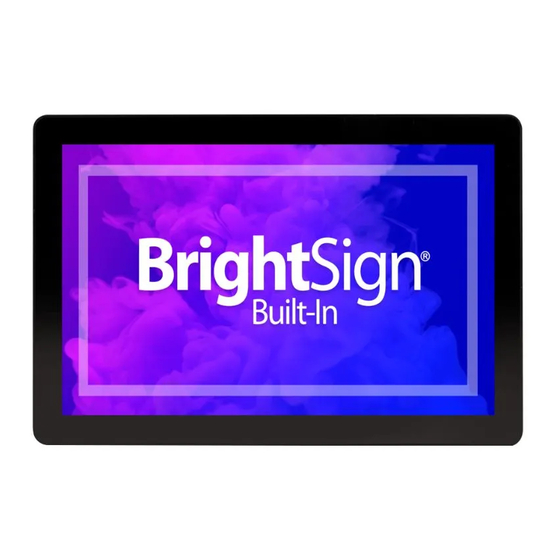

    Overview The BrightSign Built-In series of players offers the power of a BrightSign HD media player and the dependability of an industrial style LCD screen in a single unit built for convenience. BSBI players are available in sizes between 10.1...
  • Page 4: Brightauthor And Configuration

    BrightAuthor and Configuration BrightAuthor Setup BrightAuthor is a free content management and publishing desktop application which can be used to configure players and upload playlists of scheduled content to one, or a network, of players. To download Brightauthor, visit: https://www.brightsign.biz/downloads/dsm-series And download the most recent official release.
  • Page 5: Brightsign Player Setup

    BrightSign Player Setup To set up a BSBI player, navigate to Tools from the menu, and select Setup BrightSign Unit. Under Name Specification, select a name for your player. Select “Use name only” to display only the selected name during local network publishing, or “Append unit ID”...
  • Page 6: Brightsign Player Publishing

    BrightSign Player Publishing To publish a BrightAuthor presentation, navigate to the Publish Tab. Select your publishing method from directly underneath the Publish tab, either Local Storage, Local Network, or Simple File Network Browse to the folder containing your project. Select your project from the list. By default, the selected presentation will display always, indefinitely.
  • Page 7: Brightsign Firmware Update

    BrightSign Firmware Update For players which have not been published to before, or if you have downloaded a new version of BrightAuthor, select “Specify Firmware Update” below your publishing options. Ensure the Update type at the top is set to “Standard” Navigate to the top left-hand section labeled LS423, HD223, HD1023, HS123, HO523, HD1423 Select “Production Release”...
  • Page 8: Controlling The Led's

    Controlling Screen LED’s These Instructions only apply to the BSBI Room Scheduler Screen. The Room Scheduler unit comes with four LED strips on the sides of the screen, which can display in green or red. These LED’s can be controlled via the GPIO commands in BrightAuthor.
  • Page 9: Screen Menu

    Screen Menu The screen menu provides configuration options for the monitor outside of BrightSign’s configurations. This includes color correction, brightness, and CEC controls. To enter the menu, press the MENU key four times. (Note: If you received your screen before August 2018, the sequence may be MENU UP UP UP) Use the UP and DOWN buttons to navigate up and down, and the VOL- and VOL+ to navigate left and right respectively.
  • Page 10: Ports

    Ports Power in CN1: DC 12V Molex 4 pin input DEFINATION DESCRIPTION +12V DC Power supply Ground +12V DC Power supply Ground Ethernet RJ45 ethernet. POE+ power input on applicable screens up to 19.5’’. POE++ power input on applicable screens up to 32.0’’...
  • Page 11 Micro SD Micro SD card slot. Protective cover on Finished units. 2x USB 2.0 host port Status LEDs Power, Error, Busy, Update SVC, PS_ON, RST Service, Power Signal, Reset Wi-Fi / Bluetooth M.2 (E) Keyed Wi-Fi/Bluetooth connector External antenna connector optional Audio 3.5mm Audio Out (Analog and Digital) Power out /LED...
  • Page 12 Upgrade Update port for video chipset GPIO CON4: general input and output with power supply PIN1-6 from left to right have the following definition. DEFINATION DESCRIPTION 3.3V 3.3V GPIO GPIOX0 GPIO GPIOX1 GPIO GPIOX2 GPIO GPIOX3 Serial port 3.5mm RS-232 Serial Port BrightSign infrared remote-control input SPK L Amplified audio L output to 3W speaker...
  • Page 13: Player Specifications

    Player Specifications Video Engine Decoder: Single 1080p60 video decoding Media Formats: Video Codecs: H.265, H.264 (MPEG-4, Part 10) MPEG-2, MPEG-1 Video Containers: .ts, .mpg, .vob, .mov, .mp4, .m2ts, .wmv Images: BMP, JPEG, PNG Audio: MP2, MP3, AAC, WAV (AC3 Pass Through) HTML5: Mainstream Support Hardware Capable Interfaces: External micro SD Slot.
  • Page 14: Specifications

    Specifications Parameters Type Description Power Supply +12V/24V @2A-5A Audio Out 3.5mm Digital and Analog Ethernet 1000BASE-T SD/microSD 4-bit transfers, UHS-1 up to DDR50 USB 2.0 x High Speed USB 2.0 LCD resolution 1920x1080 Brightness >250 nits Viewing angle >85 Absolute maximum ratings Parameters Value Unit...
  • Page 15: Support

    Bluefin, will, at its option, repair or replace products at no additional charge to the purchaser, if • the defect is related to the Bluefin manufactured product, such as Power Supplies, Disk Drives, CPU Boards, Backplanes, Video Cards and other Peripheral Boards.
  • Page 16 Bluefin for warranty and non-warranty servicing. If during servicing the contents of the hard disk or any other data storage media are altered, deleted, modified or lost, Bluefin will not be held responsible. It is solely the customers/purchaser’s responsibility to back up any software programs, data, or information stored on any storage media or any part of a product returned for servicing.
