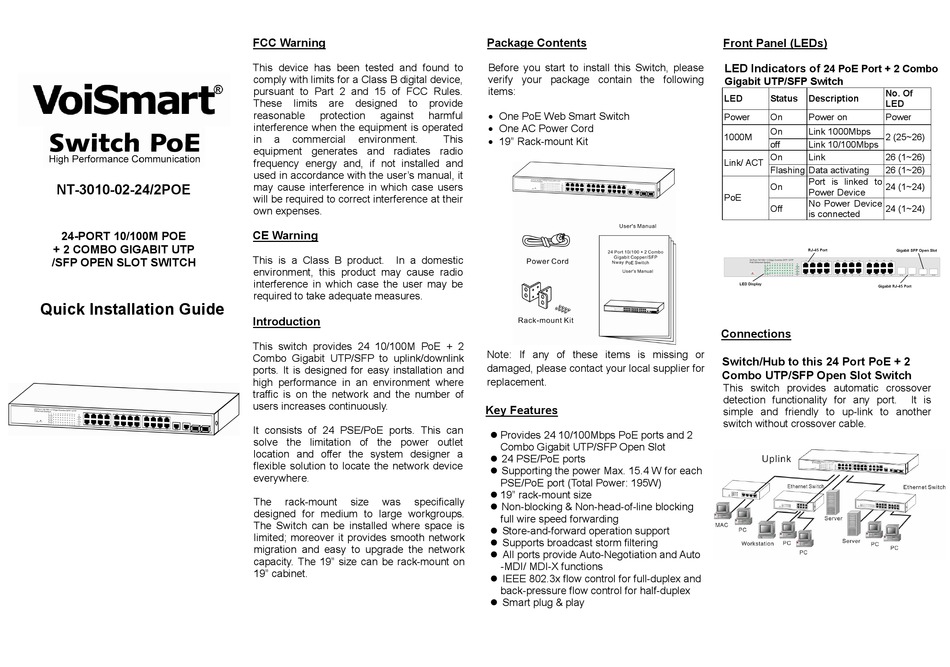

VoiSmart NT-3010-02-24/2POE Quick Installation Manual

NT-3010-02-24/2POE
24-PORT 10/100M POE
+ 2 COMBO GIGABIT UTP
/SFP OPEN SLOT SWITCH
Quick Installation Guide
FCC Warning
This device has been tested and found to
comply with limits for a Class B digital device,
pursuant to Part 2 and 15 of FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment.
equipment generates and radiates radio
frequency energy and, if not installed and
used in accordance with the user's manual, it
may cause interference in which case users
will be required to correct interference at their
own expenses.
CE Warning
This is a Class B product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.
Introduction
This switch provides 24 10/100M PoE + 2
Combo Gigabit UTP/SFP to uplink/downlink
ports. It is designed for easy installation and
high performance in an environment where
traffic is on the network and the number of
users increases continuously.
It consists of 24 PSE/PoE ports. This can
solve the limitation of the power outlet
location and offer the system designer a
flexible solution to locate the network device
everywhere.
The rack-mount size was specifically
designed for medium to large workgroups.
The Switch can be installed where space is
limited; moreover it provides smooth network
migration and easy to upgrade the network
capacity. The 19" size can be rack-mount on
19" cabinet.
Package Contents
Before you start to install this Switch, please
verify your package contain the following
items:
 One PoE Web Smart Switch
 One AC Power Cord
This
 19" Rack-mount Kit
Note: If any of these items is missing or
damaged, please contact your local supplier for
replacement.
Key Features
 Provides 24 10/100Mbps PoE ports and 2
Combo Gigabit UTP/SFP Open Slot
 24 PSE/PoE ports
 Supporting the power Max. 15.4 W for each
PSE/PoE port (Total Power: 195W)
 19" rack-mount size
 Non-blocking & Non-head-of-line blocking
full wire speed forwarding
 Store-and-forward operation support
 Supports broadcast storm filtering
 All ports provide Auto-Negotiation and Auto
-MDI/ MDI-X functions
 IEEE 802.3x flow control for full-duplex and
back-pressure flow control for half-duplex
 Smart plug & play
Front Panel (LEDs)
LED Indicators of
24 PoE Port + 2 Combo
Gigabit UTP/SFP Switch
No. Of
LED Status Description
LED
Power On Power on Power
On Link 1000Mbps
1000M 2 (25~26)
off Link 10/100Mbps
On Link 26 (1~26)
Link/ ACT
Flashing Data activating 26 (1~26)
Port is linked to
On 24 (1~24)
Power Device
PoE
No Power Device
Off 24 (1~24)
is connected
Connections
Switch/Hub to this 24 Port PoE + 2
Combo UTP/SFP Open Slot Switch
This switch provides automatic crossover
detection functionality for any port.
simple and friendly to up-link to another
switch without crossover cable.
It is
