Summary of Contents for XtraVac CM300

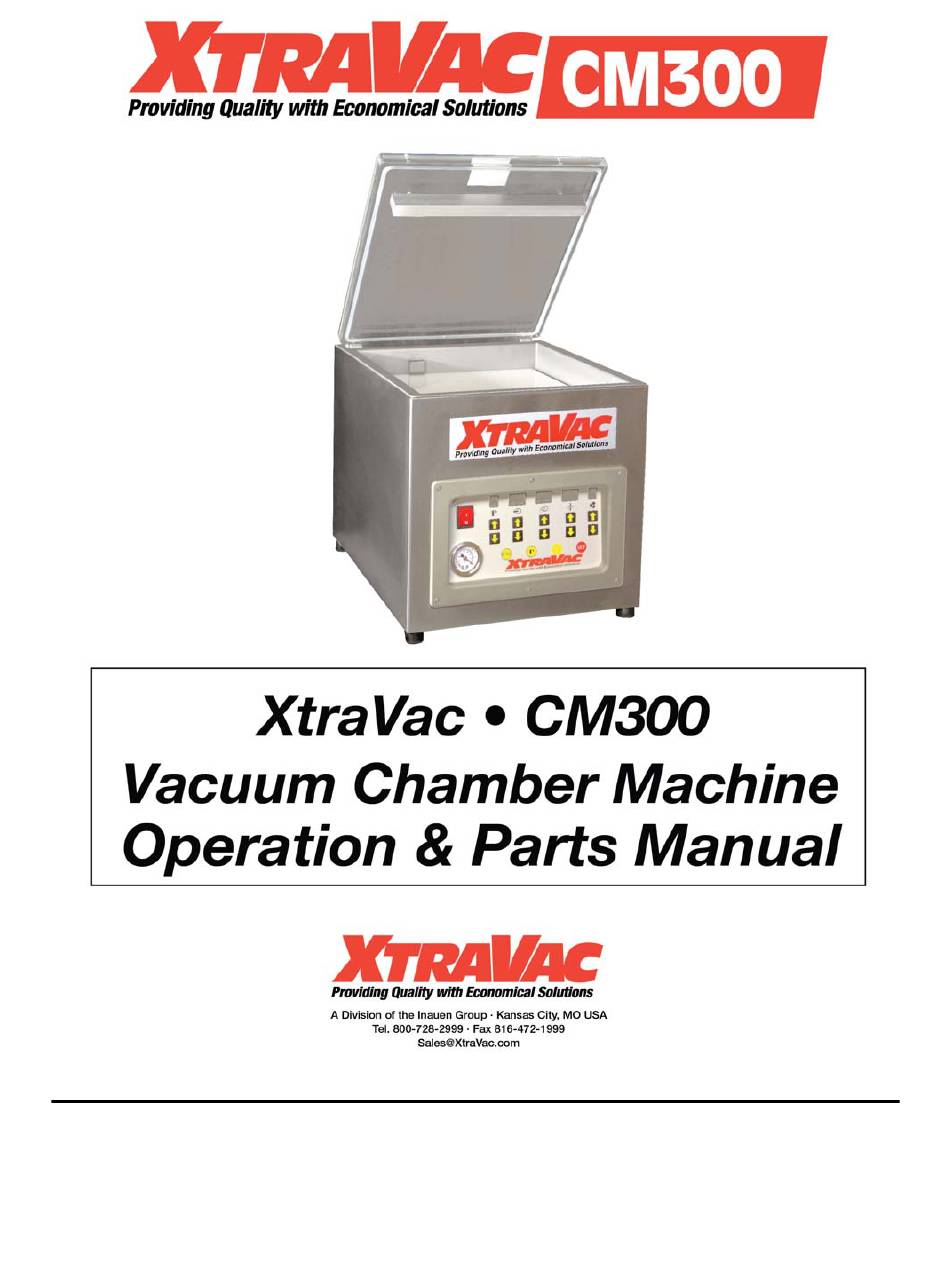

- Page 2 XtraVac CM300 Chamber Machine Operation and Parts Manual XtraVac CM300 Safe Operation Practices General Operation ．Read, understand, and follow all instructions in the manual and on the machine before starting. Keep this manual in a safe place for further and regular reference and for ordering replacement parts.
-
Page 3: Table Of Contents
XtraVac CM300 Chamber Machine Operation and Parts Manual Content Chapter 1：Safety precautions 1.1 Precautions of transportation, installation and packing 1.2 Precautions before and after machine starting Chapter 2：Overall description of the machine 2.1 Features of the machine 2.2 Function of the machine 2.3 Product proper for this machine... -
Page 4: Precautions Of Transportation, Installation And Packing
XtraVac CM300 Chamber Machine Operation and Parts Manual V1.00 Chapter 1：Safety precautions 1.1 Precautions of transportation, installation and packing 1.1.1 Preparations before installation 1.1.1.1 Power requirement: Voltage: Look at the nameplate Current: Look at the nameplate Frequency: 50/60Hz Phase: 1Ø... - Page 5 XtraVac CM300 Chamber Machine Operation and Parts Manual XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM300 Chamber Machine...
-
Page 6: Precautions Before And After Machine Starting
XtraVac CM300 Chamber Machine Operation and Parts Manual 1.1.2 Preparations during transportation 1.1.2.1 The weight of this machine is 42kg, so that the loading capacity of any handling device is recommended to be more than 150kg. If you are not sure of the safe loading capacity, please contact the manufacturer of such handling device. - Page 7 XtraVac CM300 Chamber Machine Operation and Parts Manual 1.2.1.3 Confirm that whether the electric power and its rating is sufficient. 1.2.1.4 Check that whether all the safety related devices are normal, and notice that whether anyone within the danger zone.
-
Page 8: Chapter 2：Overall Description Of The Machine

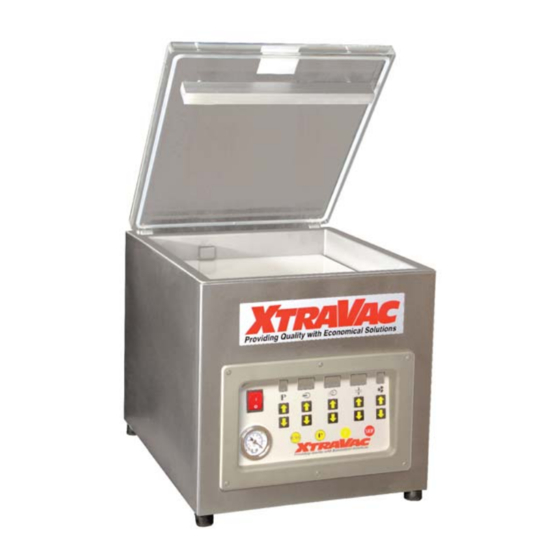

XtraVac CM300 Chamber Machine Operation and Parts Manual Chapter 2：Overall description of the machine 2.1 Features of the machine 2.1.1 The machine main body is made of stainless steel with features of pretty appearance, well endurance and easy cleaning. 2.1.2 The machine adopts high vacuum pump specific for food packaging and micro- computerized auto control system with 10 sets of friendly memory function and independent display. - Page 9 XtraVac CM300 Chamber Machine Operation and Parts Manual 2.4.1 Nameplate: stuck on the right/upper side of the machine 2.4.2 Warning sign: stuck on the rear side of the machine XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com...
-
Page 10: Specification Of The Machine
XtraVac CM300 Chamber Machine Operation and Parts Manual 2.5 Specification of the machine Type XtraVac300 Machine dimension 362 x 450 x 385 mm Vacuum chamber 315 x 345 x 100 mm dimension Sealing line dimension 300 mm Optional accessory Nitrogen filling function... -
Page 11: Chapter 3：Function Description Of The Pushbuttons On The Panel
XtraVac CM300 Chamber Machine Operation and Parts Manual Chapter 3：Function description of the pushbuttons on the panel Ｐ Ｐ STOP REPROG Memory set display (10 sets) Vacuum time display Nitrogen filling time display Sealing time display Cooling time display Memory release key... - Page 12 XtraVac CM300 Chamber Machine Operation and Parts Manual 3.1 Memory set display(A): display the current memory set (e.g. ”3” means the 3 set) 3.2 Vacuum time display(B): display the current setting of vacuum time (unit: 1/s) 3.3 Nitrogen filling time display(C): display the current setting of nitrogen filling time (unit: 1/s) 3.4 Sealing time display(D): display the current setting of sealing time (unit: 0.1/s)
-
Page 13: Chapter 4：Instructions Of Operation, Maintenance And Troubleshooting
XtraVac CM300 Chamber Machine Operation and Parts Manual Chapter 4：Instructions of operation, maintenance and troubleshooting 4.1 Operation sequence: 4.1.1 Press power switch (057), then the indicator of the display screen is lit. 4.1.2 Press “memory release” key, then the display screen starts flashing. - Page 14 XtraVac CM300 Chamber Machine Operation and Parts Manual 4.2.5 The disposal of discarded material should be in accordance with the local environmental regulations. 4.2.6 Detail drawing of the oil pump 1. Oil filling hole 2. Air release hole 3. Oil sight glass 4.
-
Page 15: Chapter 5：Related Environment And Accessories Of The Machine
XtraVac CM300 Chamber Machine Operation and Parts Manual Chapter 5：Related environment and accessories of the machine 5.1 Accessory: 5.1.1 Standard accessory: 5.1.1.1 Heat-resistance cloth: 1 piece 5.1.1.2 Heating wire: 1 pieces 5.1.2 Optional accessory 5.1.2.1 Nitrogen filling function 5.1.2.2 Nitrogen container: 6000 liters. - Page 16 XtraVac CM300 Chamber Machine Operation and Parts Manual XtraVac300 XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM300 Chamber Machine...
- Page 17 XtraVac CM300 Chamber Machine Operation and Parts Manual XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM300 Chamber Machine...
- Page 18 XtraVac CM300 Chamber Machine Operation and Parts Manual XtraVac300 Component Description Description Component No. XVT462166 XVT468001 Foot pad PE pad XVT463016 XVT462167 Gland Fixing nut XVT466404 XVT466522 Upper lid Rubber pad XVT467838 XVT45515 Hex. Screw screw XVT467821 XVT468004 06-1 Hex. Screw...
- Page 19 XtraVac CM300 Chamber Machine Operation and Parts Manual XtraVac300 Description Component No. Description Component No. XVT467851 XVT465889 Inner Hex. Screw Gland XVT75519 XVT458073 Panel frame Spring XVT464113 XVT458078 Limit switch Vacuum gauge XVT467854 XVT458317 Flat head screw Power switch XVT75520...
- Page 20 XtraVac CM300 Chamber Machine Operation and Parts Manual XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA + +1 800 728 2999 Sales@XtraVac.com CM300 Chamber Machine...
