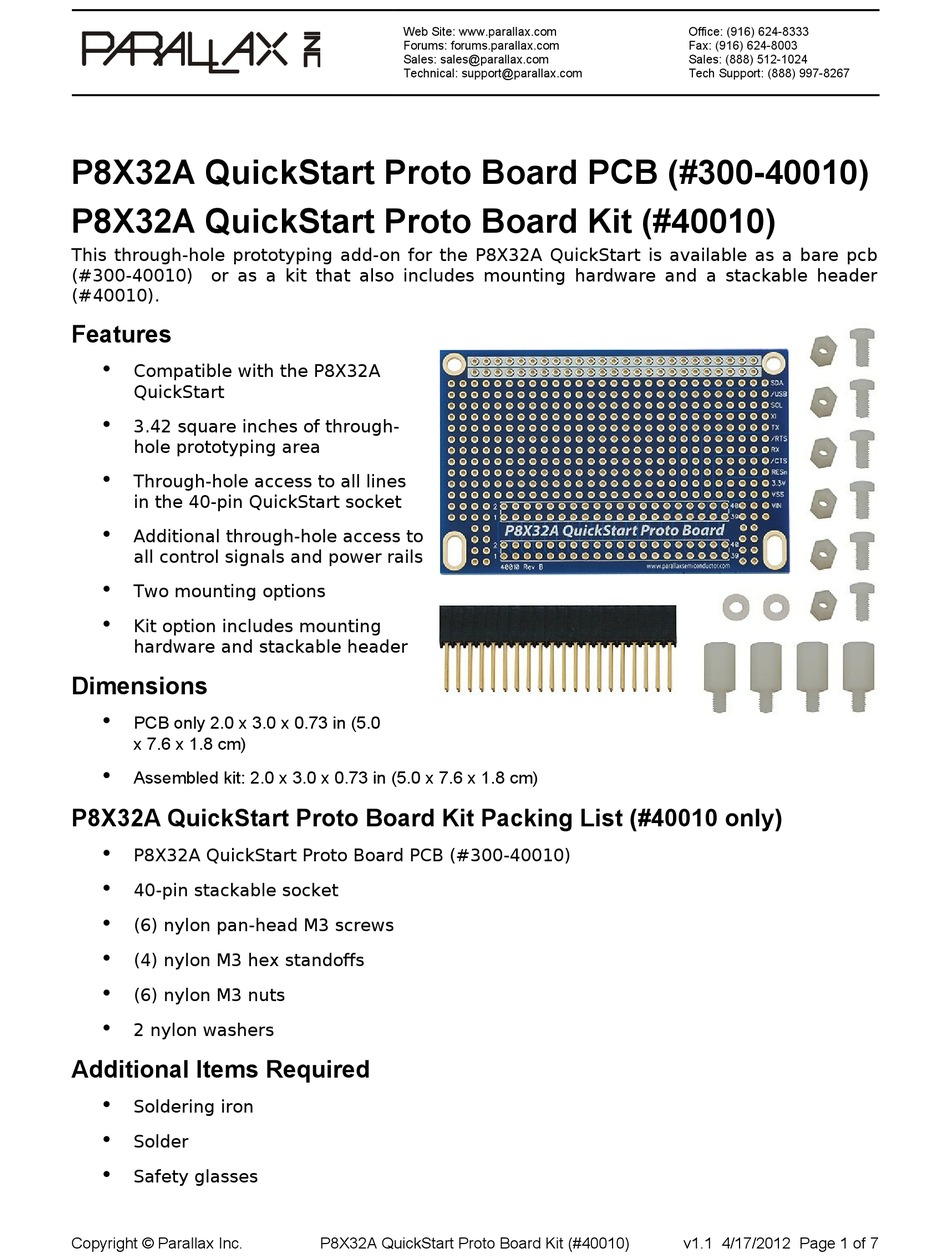

P8X32A QuickStart Proto Board PCB (#300-40010)
P8X32A QuickStart Proto Board Kit (#40010)
This through-hole prototyping add-on for the P8X32A QuickStart is available as a bare pcb
(#300-40010) or as a kit that also includes mounting hardware and a stackable header
(#40010).
Features
Compatible with the P8X32A
QuickStart
3.42 square inches of through-
hole prototyping area
Through-hole access to all lines
in the 40-pin QuickStart socket
Additional through-hole access to
all control signals and power rails
Two mounting options
Kit option includes mounting
hardware and stackable header
Dimensions
PCB only 2.0 x 3.0 x 0.73 in (5.0
x 7.6 x 1.8 cm)
Assembled kit: 2.0 x 3.0 x 0.73 in (5.0 x 7.6 x 1.8 cm)

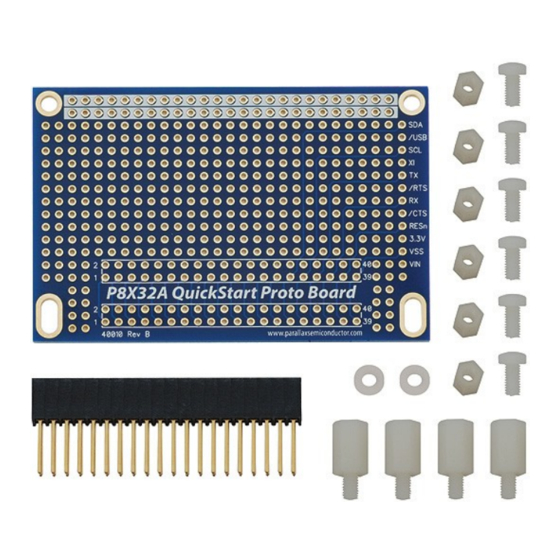

P8X32A QuickStart Proto Board Kit Packing List (#40010 only)
P8X32A QuickStart Proto Board PCB (#300-40010)
40-pin stackable socket
(6) nylon pan-head M3 screws
(4) nylon M3 hex standoffs
(6) nylon M3 nuts
2 nylon washers
Additional Items Required
Soldering iron
Solder
Safety glasses
Copyright © Parallax Inc.
Web Site: www.parallax.com
Forums: forums.parallax.com
Sales: sales@parallax.com
Technical: support@parallax.com
P8X32A QuickStart Proto Board Kit (#40010)
Office: (916) 624-8333
Fax: (916) 624-8003
Sales: (888) 512-1024
Tech Support: (888) 997-8267
v1.1 4/17/2012 Page 1 of 7
Advertisement
Summary of Contents for Parallax P8X32A
- Page 1 P8X32A QuickStart Proto Board PCB (#300-40010) P8X32A QuickStart Proto Board Kit (#40010) This through-hole prototyping add-on for the P8X32A QuickStart is available as a bare pcb (#300-40010) or as a kit that also includes mounting hardware and a stackable header (#40010).
- Page 2 Kit Assembly Instructions The P8X32A QuickStart Proto Board Kit can be permanently assembled to either overlap the P8X32A QuickStart or to overhang one edge. The overlapping configuration requires less space, and the overhanging configuration provides access to the LEDs, touch buttons, and reset button on the P8X32A QuickStart.
- Page 3 For the overhanging configuration, the text “P8X32A QuickStart Proto Board” “PARALLAX SEMICONDUCTOR” should be should be visible from the solder side. visible from the solder side. Copyright © Parallax Inc. P8X32A QuickStart Proto Board Kit (#40010) v1.1 4/17/2012 Page 3 of 7...
- Page 4 P8X32A QuickStart and tighten each the P8X32A QuickStart, closest to the 40- into a nut. pin socket, and tighten each into a nut. Install pan-head screws into the remaining holes and tighten each into a nut.
-
Page 5: Pin Definitions
Downloads and Resources Check for the latest version of this document, free software, and example programs from the P8X32A QuickStart Proto Board product page. Go to www.parallax.com and search for 40010. Pin Definitions Name... -
Page 6: Additional Connections
For the overhanging configuration, use the labels on the same side of the board as the "P8X32A QuickStart Proto Board" text. The labels on the opposite side of the board will not match the pins functions. -
Page 7: Revision History
Revision history Version 1.0 Original document Version 1.1 Fixed incorrect labeling information in “Additional Connections” section Copyright © Parallax Inc. P8X32A QuickStart Proto Board Kit (#40010) v1.1 4/17/2012 Page 7 of 7... - Page 8 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Parallax 40010 300-40010...
