Installation manuel Cooler
This product may be used by children aged 12 years and over, persons with
reduced mental capacity, physical limitations or lack or experience and knowledge if
they are supervised or have been instructed in the use the product safely and are
aware of the possible hazards. Children should not play with the product. Cleaning
and maintenance by the user may not be carried out by children without supervision
Advertisement
Table of Contents
Summary of Contents for HomEvap Cooler
- Page 1 Installation manuel Cooler This product may be used by children aged 12 years and over, persons with reduced mental capacity, physical limitations or lack or experience and knowledge if they are supervised or have been instructed in the use the product safely and are aware of the possible hazards.
- Page 2 Foreword Safety measures This instruction manual is instructional to the The construction of the HomEvap Cooler makes it installation and maintenance of the HomeEvap Cooler. impossible to be in contact with moving or voltage wearing parts, if used normally and when handled The aim of this instruction manual is: aimlessly.

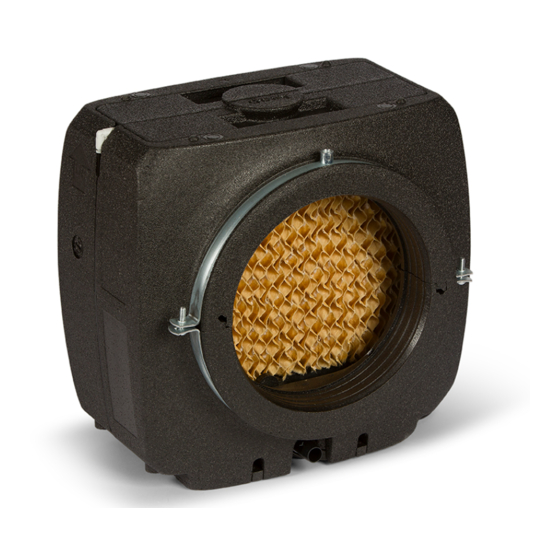

- Page 3 DANGER: Voltage on parts under the lid. The casing Careful handling is advised, remove plug from The casing of the HomEvap Cooler is made of EPP socket before removal of the lid. (expanded polypropyleen) with a circular 200mm ductconnection on each side. The perks of this material Symbol warns for contact and access while are that it is waterproof, lightweight and recyclable.
- Page 4 Instruction Manual HomEvap Cooler Technical specifications HomEvap Cooler Dimensions LxWxH 258 x 344 x 335 mm Maximum humidifying- 4 liter capacity Maximum cooling- 1950 watt capacity Electricity use 20 VA Maximum water usage 5 liter per uur Watersupply duct 4 mm...
- Page 5 5 bar. 6) The unit is delivered with a 16mm drainhose The cooler needs to be connected to a conform NEN6526 (50 cm). Carefully press the hose on the white water drainage point. link of the drain. Lock the connectin by twisting...
- Page 6 Instruction Manual HomEvap Cooler Figuur 1: schematic display of the cooler...
