W100 and W600 Analog Output Card Troubleshooting
This document is a guide for troubleshooting the analog output(AO) card if you are measuring 0mA as
the value of the analog output signal.
Controller Model

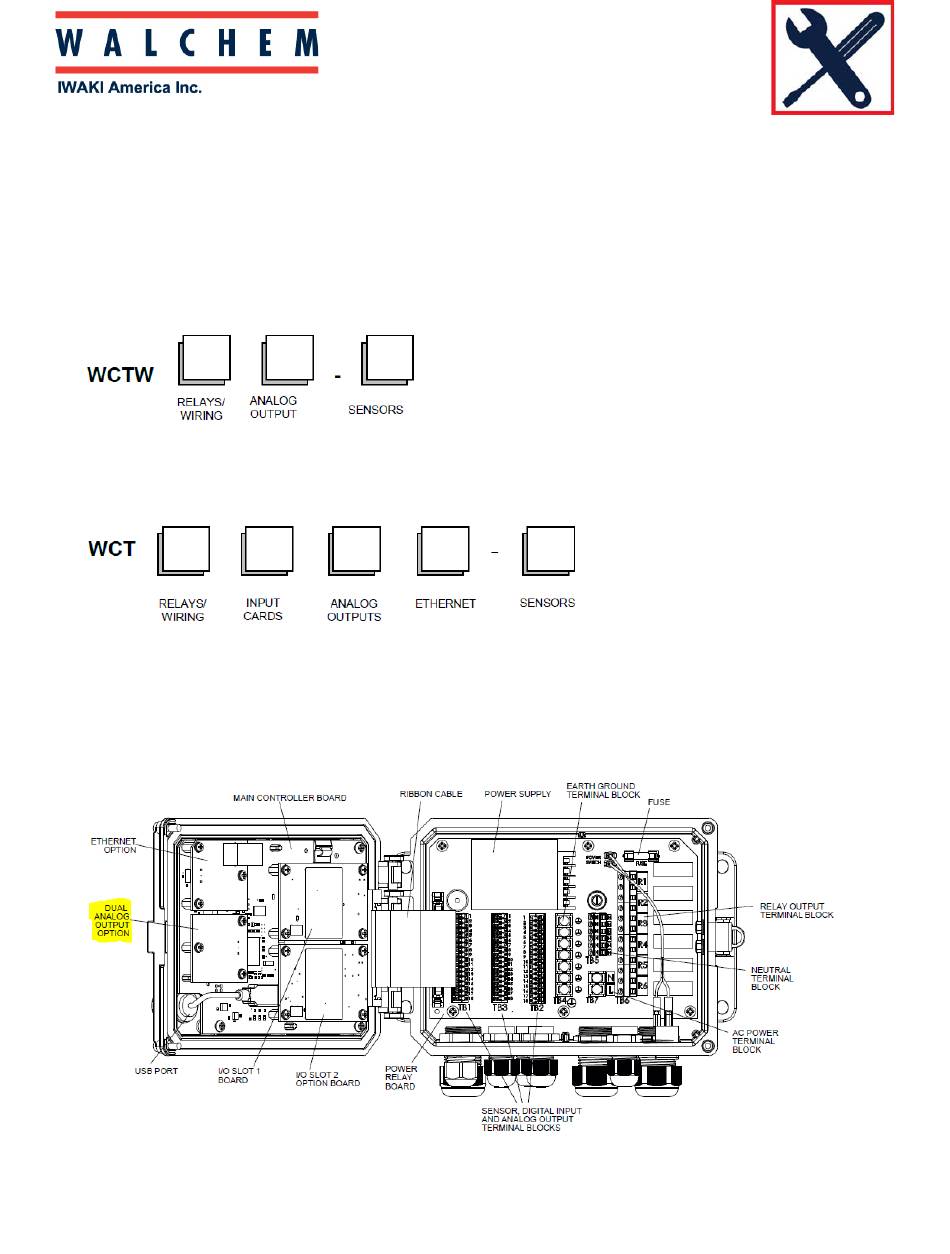

To determine if your controller has the analog output card installed, for the W100 controller, the model
number must contain an "A" in the Analog Output block shown below. The analog output option can
only be factory installed for the W100 controllers, it is not field upgradeable.
For the W600 controller, there are 2 ways to determine if the controller has the analog output card. The
model number must contain an "A" in the Analog Outputs block shown below.
Or, the analog output card may have been installed in the field, and therefore the model number will
not reflect that it is installed. So, open the front door of the controller, and visually inspect the back of
the front door. If the analog output card is installed it will be located as shown below. It is a single card,
but can output 2 analog signals (dual analog output option).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for IWAKI WALCHEM W100
- Page 1 W100 and W600 Analog Output Card Troubleshooting This document is a guide for troubleshooting the analog output(AO) card if you are measuring 0mA as the value of the analog output signal. Controller Model To determine if your controller has the analog output card installed, for the W100 controller, the model number must contain an “A”...
- Page 2 W100 and W600 Analog Output Card Troubleshooting Programming the Analog Output card W100 Menu Alarm Menu Inputs Menu (Sensor, Digital inputs) Outputs Menu (Relays, Analog Output) Configurations/Settings menu Press the key below the icon to get to the main menu selections In this example, I will program the analog output (A1) to send out 50% (12 mA) when put in HAND mode to prove if the AO card is working.
- Page 3 W100 and W600 Analog Output Card Troubleshooting W100 continued Press to scroll down until Hand Output is highlighted. Press to enter the Hand Output menu and enter 50%. Press to accept this value. Power down the controller. If the AO signal wires are connected to the controller (TB2 terminals 1 and 2), please disconnect them.
- Page 4 W100 and W600 Analog Output Card Troubleshooting Programming the Analog Output card In this example, I will program the analog output (A1) to send out 50% (12 mA) when put in HAND mode to prove if the AO card is working. Go to the Main Menu and press to go to Outputs.
- Page 5 W100 and W600 Analog Output Card Troubleshooting Connect your multimeter as shown below. Then power up the controller If you do not read 12mA (approximately), then power down the controller. Please make sure the grey ribbon cable is installed with the red stripe on the bottom (as shown above) and the ribbon cable is securely seated on both ends.
