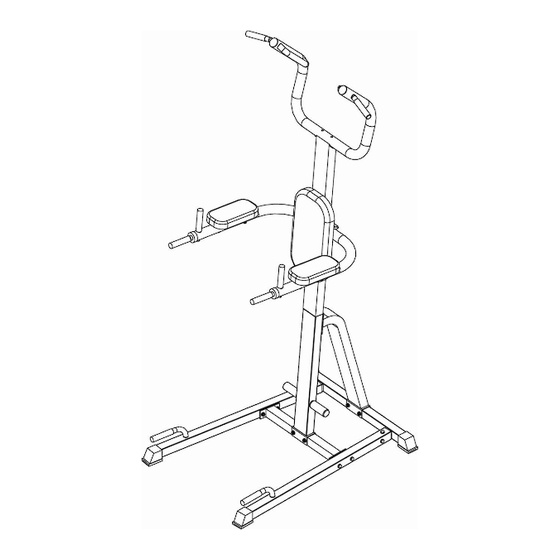

POWER TOWER
USER MANUAL

Advertisement

loading

Summary of Contents for Flex Fitness Power Tower

  • Page 1 POWER TOWER USER MANUAL...

  • Page 2: Parts List Drawings

    PARTS LIST DRAWINGS...
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 1 1. Attach the Base Frame (6) to the Rear Base (7), using six M10X15mm Hex Bolts (24) and six M10 Washers (30). 2. Attach the Connect Tube (8) to the Base Frame (6), using four M10X70mm Hex Bolts (26), eight M10 Washers (30) and four M10 Nylon Nuts (28).
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 2 1. Insert the Upper Main Frame (3) into the Lower Main Frame (5). 2. Attach the Rear Support Frame (4) to the Upper Main Frame (3) and the Lower Main Frame (5), using four M10X15mm Hex Bolts (24) and four M10 Washers(30). 3.
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 3 1. Remove two M10X25mm Hex Bolts (25) and two M10 Arc Washers (20) from two Handle Bars (10). 2. Attach two Handle Bars (10) to the VKR Frame (1), using two M10X25mm Hex Bolts (25) and two M10 Arc Washers (20). 3.
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 4 1. Attach the Back Cushion (11) to the Upper Main Frame (3), using two M8X65mm Hex Bolts (27) and two M8 Washers (29). 2. Attach two Arm Cushions (12) to the VKR Frame (1), using four M8X65mm Hex Bolts (27) and four M8 Arc Washers (22).

  • Page 7: Folding Instructions

    FOLDING INSTRUCTIONS 1. Draw the Safety Hook (21) out and fold the VKR Frame (1) up. 2. Insert the Safety Hook (21) in place and make sure the VKR Frame (1) is fixed well.

  • Page 8: Exploded Drawing

    EXPLODED DRAWING...
