NEX ROBOTICS NR-BLIC-02 Quick Manual

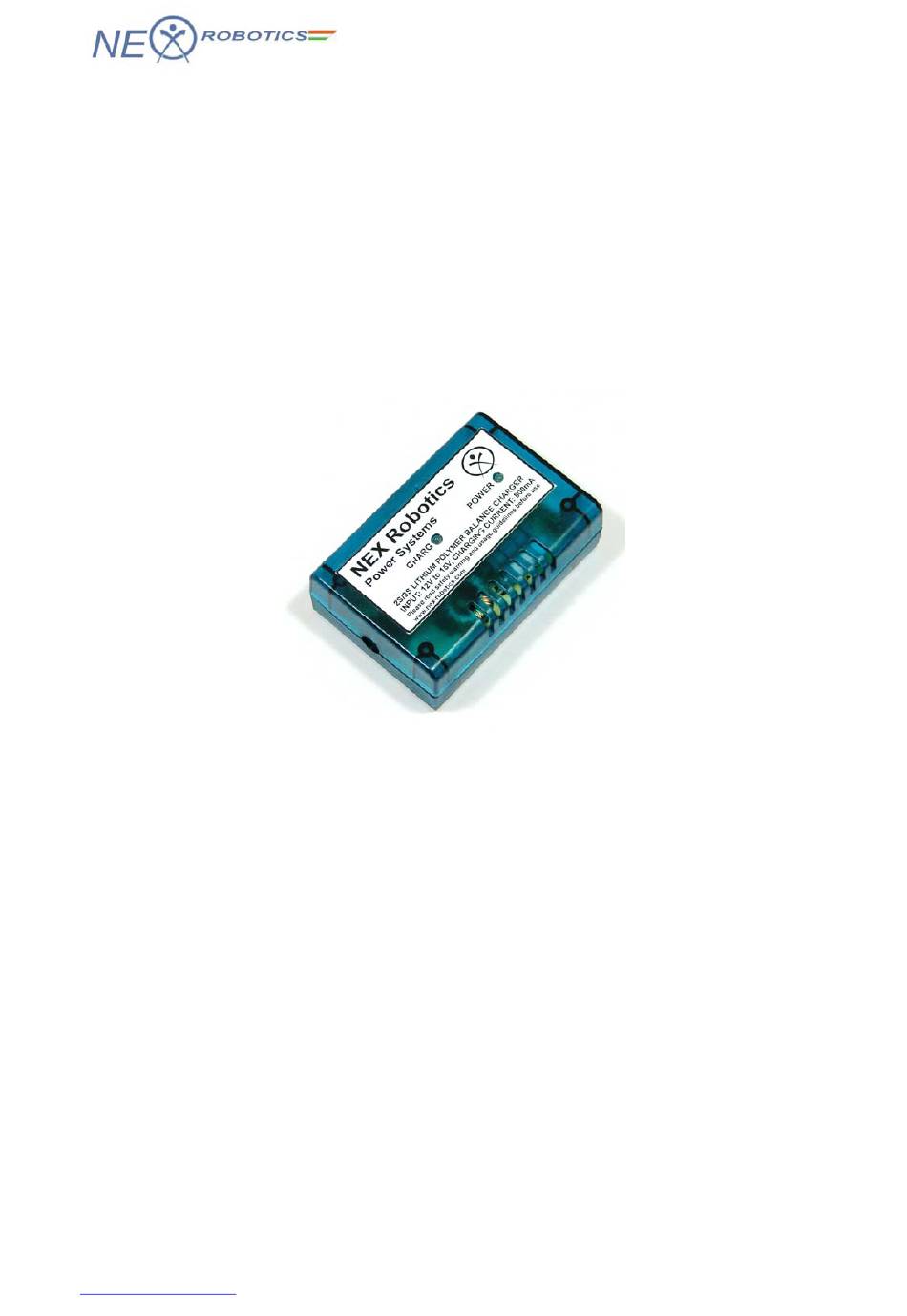

Lithium Polymer Balance Charger NR-BLIC-02 (12-15V DC)

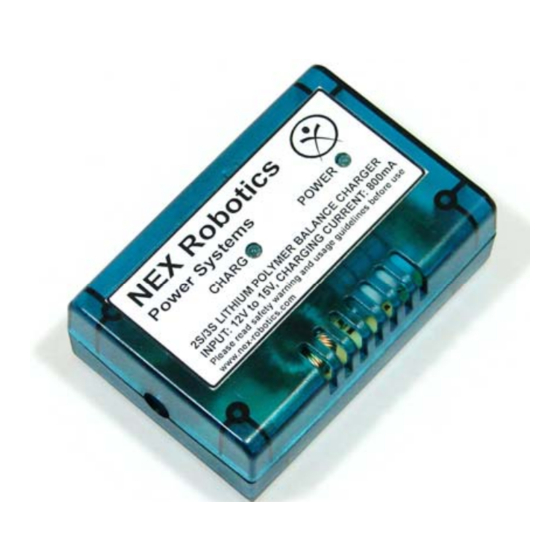

NR-BLIC-02 is a smart Balance Charger from the NEX Robotics which works on 12 to 15V DC. It can charge
2 cell and 3 cell lithium polymer battery packs. It can charge NR-BLiPo-3-500, NR-BLiPo-2-500, NR-BLiPo-
2-1300, NR-BLiPo-3-1300, NR-BLiPo-3-1800 and NR-BLiPo-3-2650 and any other Lithium Polymer Batteries
from NEX Robotics unless specified.
In multi-celled Lithium Polymer battery pack, it is possible for the individual cells to develop differences in
there charge levels. Since Lithium Polymer batteries are very sensitive to overcharging, it is important that cells
inside the battery pack should be kept at the equal levels when charging. NR-BLIC-02 balance charger form the
NEX Robotics does this by monitoring individual cell voltages of the battery pack and it adjusts the rate of
charge to the individual battery to do balance charging.
Please note that Lithium Polymer batteries can catch fire of explode if not charged or handled correctly. So take
necessary precautions while charging the battery.

Specifications

•
Power: Well regulated 12V to 15V DC
•
Charge method: Balance Charging
•
Batteries Supported: Lithium Polymer, 2 cell and 3 cell battery packs
-NR-BLiPo-2-500 (2 Cell, 11.1V, 500mAh, Charging time: 1Hour. 20 Mins.)
-NR-BLiPo-3-500 (3 Cell, 11.1V, 500mAh, Charging time: 1Hour. 20 Mins.)
-NR-BLiPo-2-1300 (2 Cell, 7.4V, 1300mAh, Charging time: 2Hours)
-NR-BLiPo-3-1300 (3 Cell, 11.1V, 1300mAh, Charging time: 2Hours)
-NR-BLiPo-3-1800 (3 Cell, 11.1V, 1800mAh, Charging time: 2Hours. 50 Mins.)
-NR-BLiPo-3-2650 (3 Cell, 11.1V, 2650mAh, Charging time: 3Hour. 40 Mins.)
-Any other battery on the NEX Robotics website with mentioned support.
•
Maximum Charge current: 800mA
•
Connectors for battery charging: JST-XH (male) (4 pin for 3cell and 3 pin for 2 cell battery packs)
•
Power input: 12V to 15V DC
•
Indicators: Power and Charge status
•
Dimensions: 75mm x 50mm x 25mm
•
Accessories: Power connector wire with crocodile pins at the other end
NEX Robotics Pvt. Ltd.
www.nex-robotics.com
Lithium Polymer Balance Charger NR-BLIC-02
th
28 March 2010
