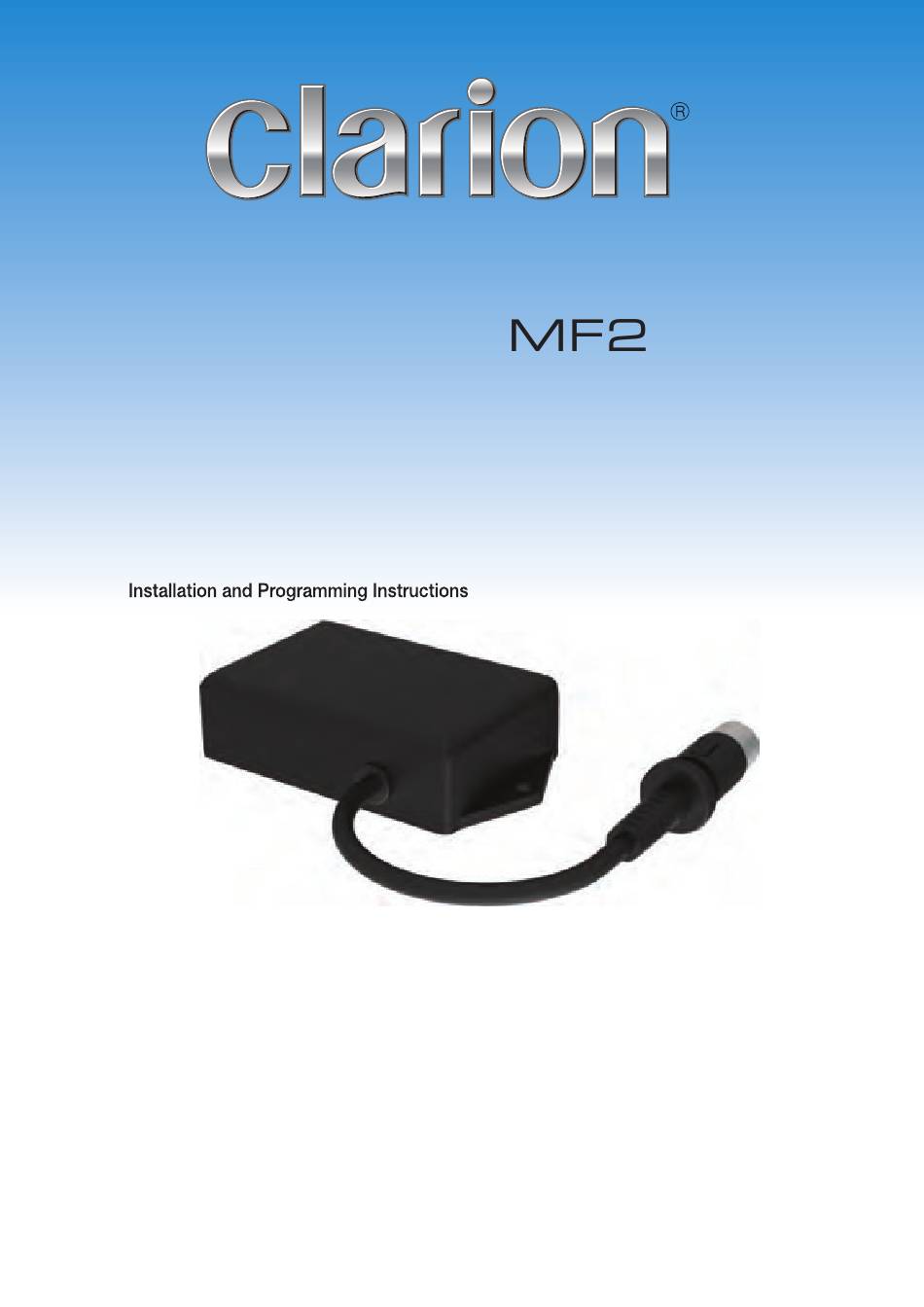

Clarion MF2 Installation And Programming Instructions

Clarion MF2 Installation And Programming Instructions

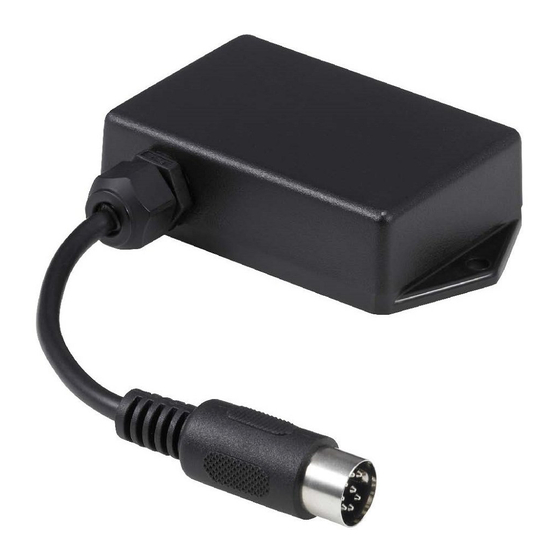

Marine wi-fi remote module with app control

Advertisement

• Wi-Fi Remote

• Some buttons on the remote may not
have any functions or control different
functions on certain radios
• Please visit clarion for latest
application chart for compatibility with
your radio model

Marine Radio Models with 8-pin DIN Connector

With the radio turned off, connect the 8-pin male DIN remote connector to the MF2 reciever module into the
"Wired Remote Connector" at the back of the radio. No other connections are necessary.
Power and ground will be supplied through the DIN connector.

Wi-Fi Connection Instructions

1. Turn on the Clarion marine radio.
2. To configure the Wi-Fi network from your iOS device, enter the Wi-Fi settings menu
3. Turn on your Wi-Fi feature.
3. Once Wi-Fi is on, your device will automatically search and display the available MF2 Wi-Fi network *SSID.
4. Tap the name of the Wi-Fi SSID associated to the Clarion MF2.
5. When your device is connected to the Wi-Fi network, a checkmark will appear to the left of the network name.
6. To confirm connection, rotate the volume knob on the Clarion marine radio prior to using the MF2 app.
Note: Should your phone lose its Wi-Fi connection with the MF2 or fails to connect, go to your
Wi-Fi Settings and attempt reconnecting to your wireless network.
*SSID (Service Set Identifier) : Name used for user group to share files over any network, wired or wireless.
Marine Wi-Fi
Remote Module with APP
Control

8-P DIN to radio
