Platné od: 7.3.2017
Installation guidelines
RGS 60/120-H
EI 60/120 DP1 with engine
FS.15/20, 25/20 and 50/20
Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko
IČ: 29260159, DIČ: CZ29260159
tel: +420 547 427 011, www.somati-system.cz
12/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RGS 60-H and is the answer not in the manual?

Questions and answers

Summary of Contents for Somati system RGS 60-H

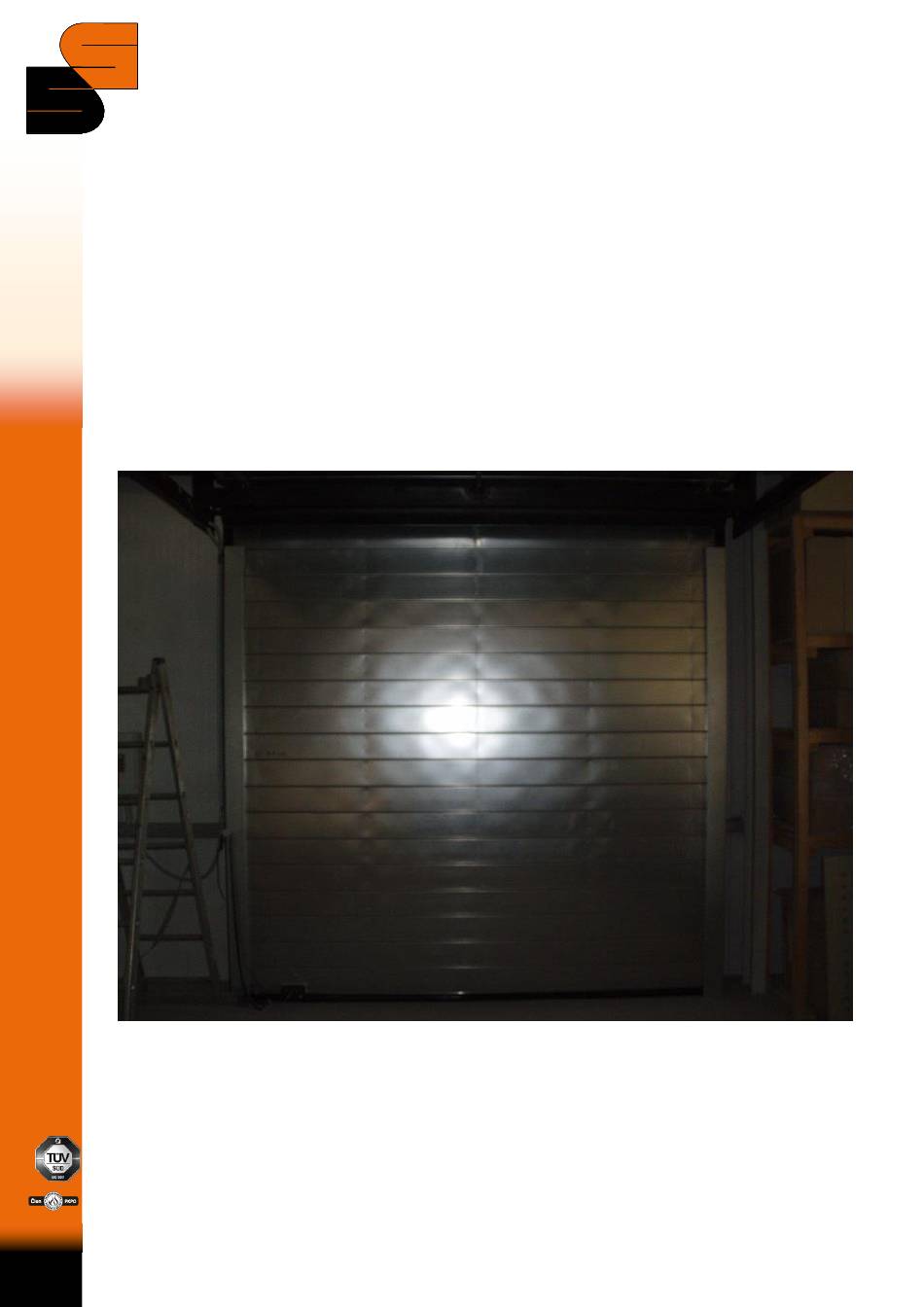

  • Page 1 Platné od: 7.3.2017 Installation guidelines RGS 60/120-H EI 60/120 DP1 with engine FS.15/20, 25/20 and 50/20 Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz 12/2015...

  • Page 2: Table Of Contents

    12. CONNECTION OF CONTROL PANEL ..........18 13. UNPACKING LAMELLAS ..............19 14. INSTALLATION OF THE SIDE GUIDES - COVER ........ 20 15. GUARANTEE CONDITIONS ............... 21 Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz 12/2015...

  • Page 3: Notification Before Installation

     Drill  Grinder  Set of keys  Optical leveling device  Aku screwdriver  Taps (for mounting on a steel structure) Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 4: Control The Completeness Of Delivery

    Appropriate number of isolated 1.9. lamellas according to assembly (1 bottom lamella) 1.10. Output shaft pens 1.11. Connecting material Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...
  • Page 5 Cabel Fe FS engine 4.6. Connecting material 5. Guides 5.1. Set of left guide 5.2. Set of right guide 5.3. Connecting material Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...
  • Page 6 Steel Screw + nut + washer Tex 6,3 Anchoring through Porottern the wall - distributing Fischer FUR Plynosilikat pads under the console Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 7: Building Control By A Particular Model Kits

    (less than or as large as in the documentation) Stan dard heig uppe m for RGS- center of the access meter horizontal guideline width – ordered size W Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 8: Installation Of The Top Frame

    The upper frame as standard mounted on the ceiling or through the steel columns, which can also order by type of order. 1 view of the skeleton to be mounted on the ceiling Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...
  • Page 9 Uppe beam In the case of the greater upper beam than 450 mm, scotch the supporting consoles or order atypical. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...
  • Page 10 1/2 + 190 1/2 + 190 Upper beam left beam frame right beam frame width of the pitch consoles control size according to assembly Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...
  • Page 11 The whole construction of the skeleton must be installed in vertical and horizontal plane and must be leveled (not to be skewed). Measure and compare diagonal structure at right angles Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 12: Installation Of The Side Guides

    1. Part A – body of guide (part on the wall) 2. Part B – guide cover 3. Connection screws  M 6 Part B Part A Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...
  • Page 13 10 (in the standard cases) Nominal width of the hole Inner pitch of the guide according to assembly Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 14: Establishment Of The Horizontal Labyrinth

    Promat by the contact adhesive Plant labyrinth on the side lines (must match and build on the side guide). Labyrinth Side guide Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 15: Installation Of Bearings And Actuator

    The main roller with parts of the lamellas mount on top of the skeleton, which is already attached to the ceiling. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 16: Complete The Console With The Brake

    1. Screw CSN EN 24018-1 (2 pcs) 2. Washer CSN 021702_A-1 (2 pcs) 3. Gravity brake FG-1 (FG 80-40) 4. Matrix (2 pcs) Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 17: Installation Of The Pressing Roller

     Fixed tighten the screws of bearings 2 external side of the bearing body 3 internal side of the bearing body Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 18: Installation Of The Engine

    5 external side 1. Screw CSN EN 24018-18(4 pcs) 2. Motor FS 15.20-1 3. Flats UNI 1 (4 pcs) – inside the track console Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 19: Installation Gear Wheels And Chain On The Shaft

     Fit the chain  Shortcut the chain i fit necessary  Contact by the connector Regulation for chain tensioning: http://www.haberkorn.cz/retezy/ http://www.haberkorn.cz/data/files/file/pohonne-systemy/pohony-retezy/retezy/05_Retezy_web_3- 14.pdf http://www.pkservis.com/cz/retezy/valeckove-retezy-din-8187-a-8188 http://www.retezy-vam.com/cs/pro-konstruktery/vypocet-dopravniho-retezu.html Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 20: Connection Of Control Panel

    Platné od: 7.3.2017 12. CONNECTION OF CONTROL PANEL Viz. Manual electrical control panel Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 21: Unpacking Lamellas

    Get lamellas by the snaps together at an angle of 90 degrees, snap lamellas are connected and straight. insert turn over 6 separate installation of lamellas on the roller 7 closed door Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...

  • Page 22: Installation Of The Side Guides - Cover

    You can install before, but since it works with the guides, it is good to have uncovered guides to the end and the whole installation to add the remaining guides bevelled top. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159...

  • Page 23: Guarantee Conditions

     Repairs carried out by unqualified persons  Use of parts of foreign origin Removing or defaced product number replaced parts become the property of the manufacturer. Somati system s.r.o., Jihlavská 510/2c, 664 41 Troubsko IČ: 29260159, DIČ: CZ29260159 tel: +420 547 427 011, www.somati-system.cz...
