Regent Lighting Tula Installation Instructions

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Tula Bulkhead
save These Instruction for Future Reference
Electrical products can cause death, injury, or damage to
property. Installation of this product must be carried out by a
qualified electrician, in compliance with SANS 10142 or
corresponding regulations of the country of installation. On
completion of installation, the Certificate of Compliance must
be updated.
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION OF WAHL
INDUSTRIES.
September 2017
www.regentlight.co.za

WARNING

WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
Electronic Control Device
serviced by trained
personnel only.
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1

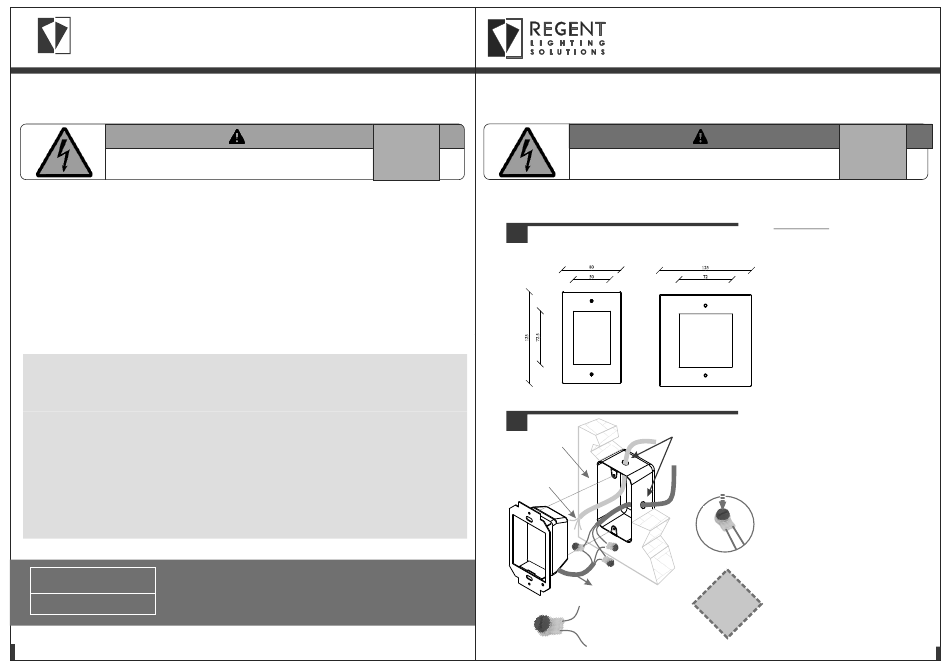

2x4 Tula 4x4 Tula
Screw mount facia version shown
2
2
Cable entry points
A
Flush electrical box
with wall
B
Strip the cable
before connecting
Supplied electrical
cable tail
Light source (L) Brown/
(N) Blue/
(E) Green/yellow
(L) Brown/
(N) Blue/
Main supply
(E) Green/yellow
Tula Bulkhead
WARNING WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.

Requirements:

Be sure the electricity to the
system you are working on is
isolated.
Two counter sunk screws/wall
plugs, if required*. Otherwise
magnets will be supplied.
Standard 2x4 or 4x4 electrical
connector box, either PVC or
galvanised steel. Ensure the
connector box is positioned
correctly.
1. Select the required position for
the luminaire, and recess the
correct connector box into the
mounting surface.
2. A. Feed the electrical cable
through the connector box. Ensure
the correct cable entry is selected.
B. Strip the main power supply
Press down to release
the gel resin, to retain the
cable (Live, neutral and earth),
IP rating once the cables
are securely fastened
before connecting. Separately
into the connector.
connect the Live, Neutral and
C
Earth from the mains power supply
to the electrical cable tail supplied
o n t h e f i t t i n g u s i n g 3 r e s i n
connectors (Connector: 3M -
J000788) to maintain the IP rating.
C. Inset the two corresponding
Connector: 3M - J000788
x3 per bulkhead
c a b l e s c o m p l e t e l y i n t o t h e
connectors. Push the button on the
c o n n e c t o r ( i n d i c a t e d i n
DO NOT PLUG
red/orange) to release the gel
(CONNECT) WHEN
resin once the electrical cables
LIVE AS IT WILL CAUSE
DAMAGE TO THE
are secure.
LUMINAIRE.
