Summary of Contents for Zoltrix Eagle Cam

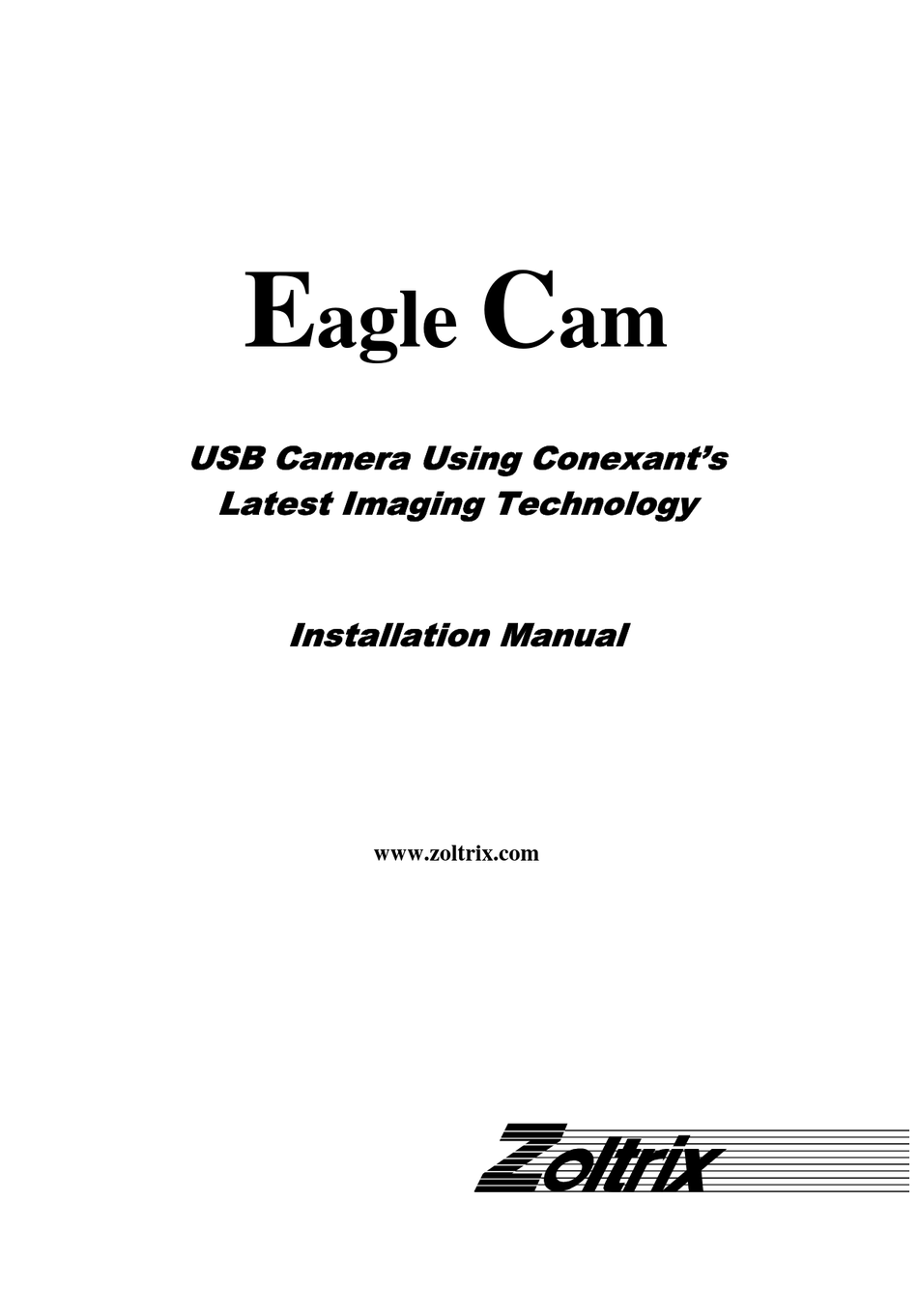

- Page 1 86%&DPHUD8VLQJ&RQH[DQW·V /DWHVW,PDJLQJ7HFKQRORJ\ ,QVWDOODWLRQ0DQXDO www.zoltrix.com...
- Page 2 Microsoft Corporation in the United States and/ or other countries. Internet CommSuite is a trademark of Smith Micro Software, Inc All rights reserved. Zoltrix, the Zoltrix logo, and the Zoltrix products referred to herein are either the trademarks or the registered trademarks of Zoltrix. All other trademarks are the property of their respective owners.
- Page 3 Camera Installation The “Eagle Cam” provides you flexibility in mounting the camera either on top of your monitor or on your notebook computer. Please refer to the following diagrams. a. Mounting on monitor: Remove the protective label from the camera base before mounting.
- Page 4 User’s Manual Eagle Cam Installation Mount the camera to the camera base as shown. To use the camera, simply slide the cover to the right. The center ring can be rotated to adjust picture’s sharpness.
- Page 5 User’s Manual Eagle Cam Installation b. Mounting on notebook computer: Mount the notebook camera base onto the corner of the notebook cover and lock the base by pressing the attached clip as shown. Mount the camera to the notebook camera base as shown.
-
Page 6: Drivers Installation
Connect the camera cable to your computer. The following screen will appear and press “Next” to proceed.(Note: If you have enabled CD “Auto Insert Notification”, you should see the Eagle Cam Installation Screen appears. If so, you can select “Cancel” to the following drivers... - Page 7 User’s Manual Eagle Cam Installation Select “Search for the best driver for your device” and press “Next”. When Windows prompts for drivers’ location, select CD-ROM drive or specify a location where your CD-ROM drive is located.
- Page 8 User’s Manual Eagle Cam Installation Drivers should now be found and press “Next” to install. Press “Finish” to complete the driver installation process.
- Page 9 User’s Manual Eagle Cam Installation Setting up the Eagle Cam Run D:\setup.exe (Replace D: with the drive letter of your CD-ROM drive if necessary. The following screen will appear and press “Next” to proceed.
-
Page 10: Software Installation
Setup is now finished and restart the computer to complete. Software Installation The “Eagle Cam” has come with a unique and affluent software package that includes Internet Comm Suite™, Microsoft® Internet Explorer™ with NetMeeting™ and Video Editing Software. You can use them to make Video Conference Calls, Video Emails, Security Camera and more. - Page 11 User’s Manual Eagle Cam Installation Fine Tuning and Adjustment The following is the video format settings. By default, the resolution is 352x288. The following settings allow you to adjust image quality. In the frame rate section, select compression on to achieve best motion video quality. Or select off...
- Page 12 Select “Sun or non-fluorescence” if you are using light bulb or in outdoor environment. Uninstalling the “Eagle Cam” Go to Windows Control Panel>Add/Remove Programs, select “Zoltrix Eagle Cam” and click Add/Remove button. Then click “Yes’ to confirm removal.
- Page 13 User’s Manual Eagle Cam Installation Go to Windows Control Panel>System>Device Manager, select “USB Video Camera for Conexant” under Imaging Device. Then click “Remove” and “OK” to confirm removal.
