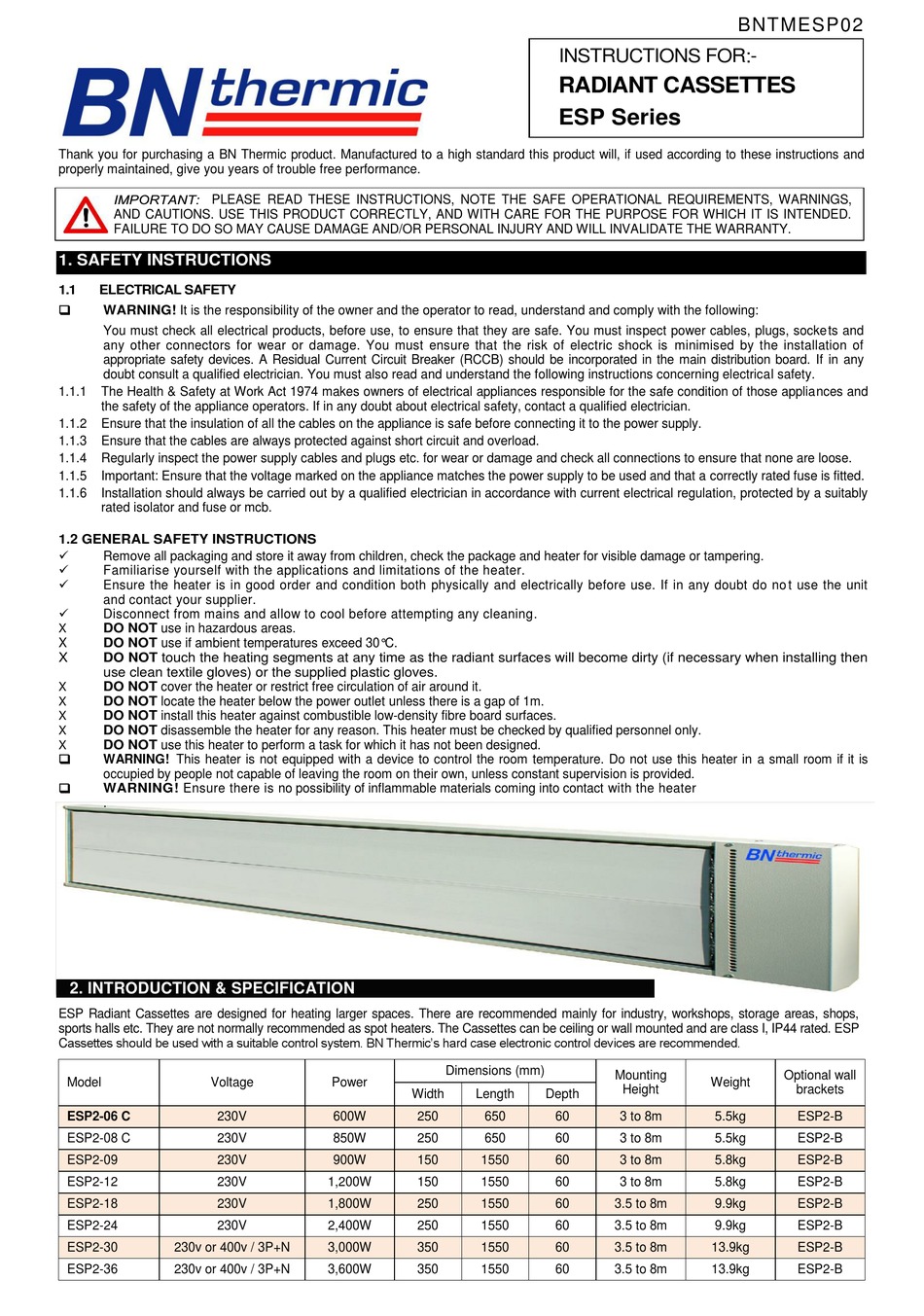

BN Thermic ESP Series Instructions

Thank you for purchasing a BN Thermic product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
PLEASE READ THESE INSTRUCTIONS, NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS,
AND CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED.
FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.

1. SAFETY INSTRUCTIONS

1 . 1

ELECTRICAL SAFETY


WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and
any other connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. If in any
doubt consult a qualified electrician. You must also read and understand the following instructions concerning electrical safety.
1.1.1 The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances and
the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.2 Ensure that the insulation of all the cables on the appliance is safe before connecting it to the power supply.
1.1.3 Ensure that the cables are always protected against short circuit and overload.
1.1.4 Regularly inspect the power supply cables and plugs etc. for wear or damage and check all connections to ensure that none are loose.
1.1.5 Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that a correctly rated fuse is fitted.
1.1.6 Installation should always be carried out by a qualified electrician in accordance with current electrical regulation, protected by a suitably
rated isolator and fuse or mcb.

1.2 GENERAL SAFETY INSTRUCTIONS


Remove all packaging and store it away from children, check the package and heater for visible damage or tampering.

Familiarise yourself with the applications and limitations of the heater.

Ensure the heater is in good order and condition both physically and electrically before use. If in any doubt do no t use the unit
and contact your supplier.

Disconnect from mains and allow to cool before attempting any cleaning.
DO NOT use in hazardous areas.
X
X DO NOT use if ambient temperatures exceed 30°C.
X DO NOT touch the heating segments at any time as the radiant surfaces will become dirty (if necessary when installing then
use clean textile gloves) or the supplied plastic gloves.
DO NOT cover the heater or restrict free circulation of air around it.
X
DO NOT locate the heater below the power outlet unless there is a gap of 1m.
X
DO NOT install this heater against combustible low-density fibre board surfaces.
X
DO NOT disassemble the heater for any reason. This heater must be checked by qualified personnel only.
X
DO NOT use this heater to perform a task for which it has not been designed.
X

WARNING! This heater is not equipped with a device to control the room temperature. Do not use this heater in a small room if it is
occupied by people not capable of leaving the room on their own, unless constant supervision is provided.

WARNING! Ensure there is no possibility of inflammable materials coming into contact with the heater
.
2. INTRODUCTION & SPECIFICATION

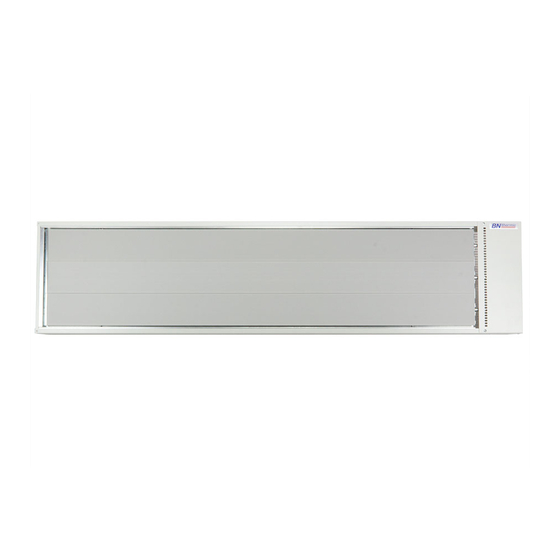

ESP Radiant Cassettes are designed for heating larger spaces. There are recommended mainly for industry, workshops, storage areas, shops,
sports halls etc. They are not normally recommended as spot heaters. The Cassettes can be ceiling or wall mounted and are class I, IP44 rated. ESP
Cassettes should be used with a suitable control system. BN Thermic's hard case electronic control devices are recommended.
Model Voltage
ESP2-06 C 230V
ESP2-08 C 230V
ESP2-09 230V
ESP2-12 230V
ESP2-18 230V
ESP2-24 230V
ESP2-30 230v or 400v / 3P+N
ESP2-36 230v or 400v / 3P+N
Dimensions (mm)
Power
Width Length
600W 250 650
850W 250 650
900W 150 1550
1,200W 150 1550
1,800W 250 1550
2,400W 250 1550
3,000W 350 1550
3,600W 350 1550
INSTRUCTIONS FOR:-
RADIANT CASSETTES
ESP Series
Mounting
Weight
Height
Depth
60 3 to 8m 5.5kg
60 3 to 8m 5.5kg
60 3 to 8m 5.8kg
60 3 to 8m 5.8kg
60 3.5 to 8m 9.9kg
60 3.5 to 8m 9.9kg
60 3.5 to 8m 13.9kg
60 3.5 to 8m 13.9kg
BNTMESP02
Optional wall
brackets
ESP2-B
ESP2-B
ESP2-B
ESP2-B
ESP2-B
ESP2-B
ESP2-B
ESP2-B
