ekwb EK-FC980 GTX CSQ Installation And Mounting Manuals

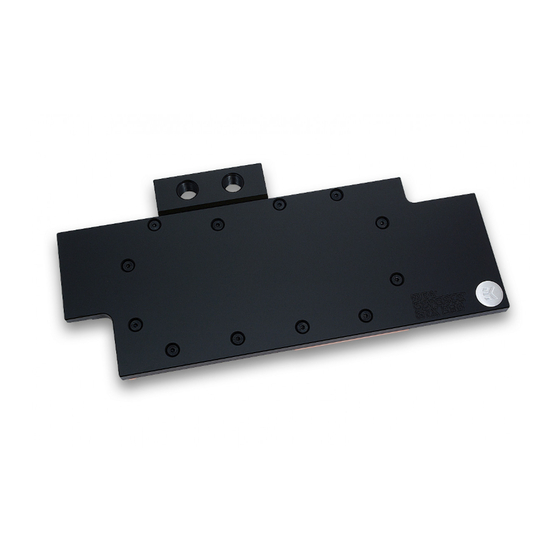

Installation and mounting manual for EK-FC980 GTX CSQ water block
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets.
4. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.
STEP 1: GENERAL INFORMATION.
STEP 2 cont.: PREPARING YOUR GRAPHIC CARD
1 cont.. REMOVING STOCK COOLER.
screws attaching the backplate and VRM heatsink to the circuit board as well as two screws attaching the
I/O bracket to the HSF.
3. APPLYING THERMAL COMPOUND.
remains (by using non–abrasive cloth or
original thermal compound until the
components and circuit board are
completely clean. Apply thermal
NVIDIA
compound: lightly coat GPU
chip with enclosed EK-TIM Ectotherm
thermal grease. EKWB recommends to
apply thermal grease in cross form for
best performance (see sample picture).
STEP 3: INSTALLING THE WATER BLOCK
1. PLACING THERMAL PADS ON PCB.
chips so that numbers on chips match size of thermal pads. EKWB
made sure users have more than enough pads to cover all surfaces
that need to be covered to make block fully functional). EKWB
recommends using small drops of electrically non-conductive (for
example: EK-TIM Ectotherm, Arctic Cooling MX-2 ™, MX-4 ™ or
GELID GC-Extreme™) thermal grease on each phase regulator (that
is being covered with thermal pad) in order to even further improve
the thermal performance of the EK-FC980 GTX series water block.
1 1
1
1
All disclosures, notices and warranty conditions are being written on the EKWB website. Please read terms of use.
Sample picture of GeForce 980 GTX series graphics card.
Remove the stock GPU HSF assembly. Remove all encircled
4. CUTTING THERMAL PADS.
have to be cut to smaller chunks in order to cover all the VRM components such as MOSFETs and drivers. PLEASE
Wipe off the
REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION.
q-tip
) of the
Replacement thermal pads: Thermal Pad D – 0.5mm (RAM 8x), Thermal Pad B – 0.5mm (75x50mm), Thermal Pad C – 1.5mm (25x25mm).
1: Thermal pad D – 0.5mm
(for memory IC):
1: Thermal pad D – 0.5mm
(for memory IC):
Place thermal pads on
1
2
3
1
1
2
1
STEP 2: PREPARING YOUR GRAPHIC CARD.
2. CLEANING THE PCB.
after removing all screws securing it to the board. Wipe off the
remains (by using non–abrasive cloth or
photo) of the original thermal compound until the components and
circuit board are completely clean. EKWB recommends the use of
denatured alcohol for removing TIM leftovers.
Your block comes with thermal pads, some of which are already pre-cut. Others
2. PLACING THE BLOCK ON TO THE GRAPHICS CARD
with preinstalled 2.5mm standoffs on to the graphics card. During this process please make sure
you align mounting holes on the PCB with holes on the water block (same applies for other tops).
Also pay attention not to use too much force by pressing the block down to the PCB. Chip dies are
prone to cracking.
www.ekwb.com
1. REMOVING STOCK COOLER: Remove encircled
screw on the bracket (required only on certain
models):
Carefully detach the original stock cooler
q-tip
, as shown on sample
2: Thermal pad B – 0.5mm
(for VRM/MOSFET):
. Carefully position the water block
th
Released on 18¸ of Sebtember, 2014. Revision 1.0
for updates. Before
