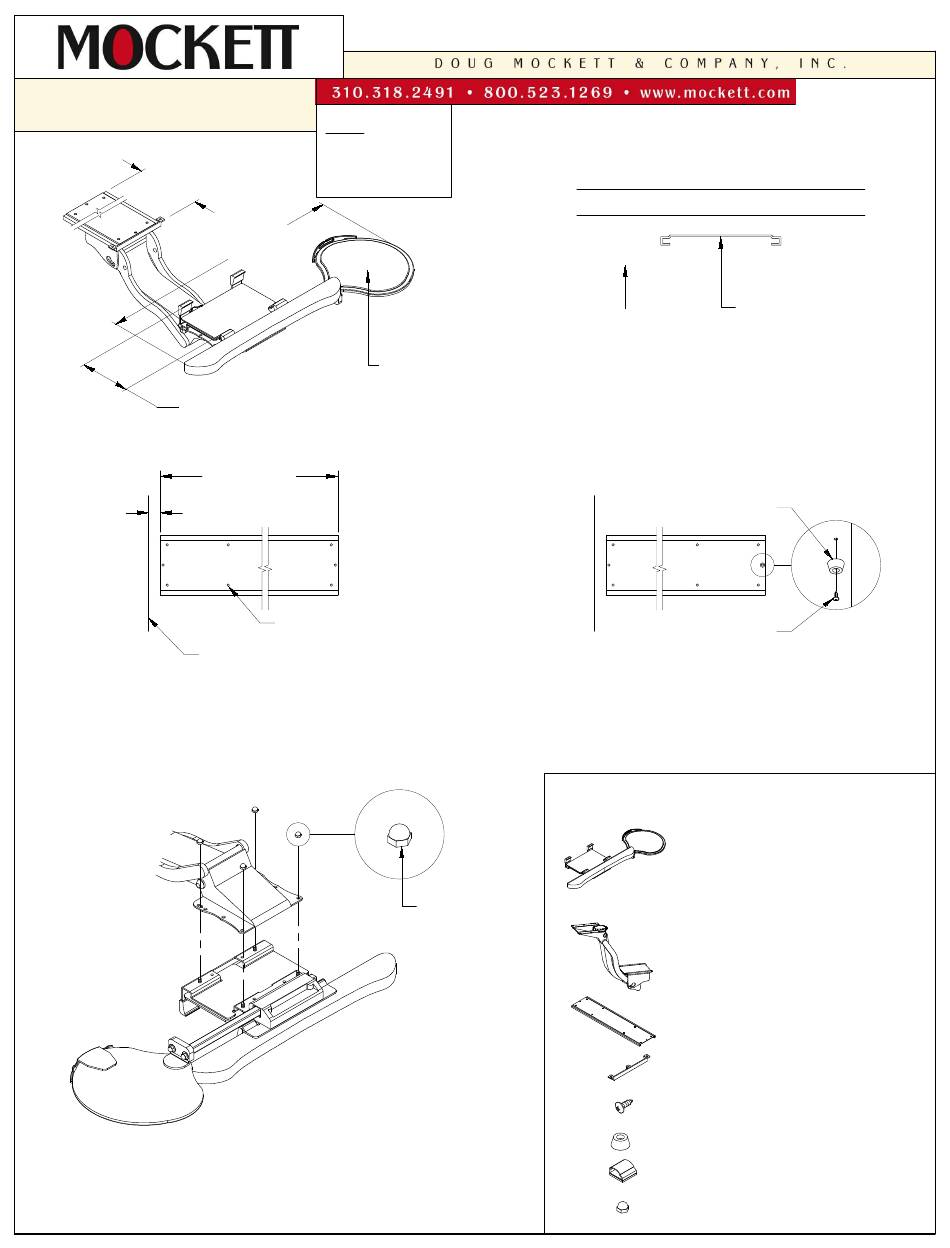

PART #
KP6/M2
23-1/8"
w/ Track Guard
5-1/4" MIN.
8-3/4" MAX.
2
5/8" MAX.
Mount the track on the underside of the work
surface using (8) #8 wood screws.
4
Attach the mechanism to the underside of the KP6 tray.
Secure the mechanism to the tray with (4) acorn nuts.
NOTE:
Work surface
must be at least
24" deep.
22-1/4" MIN.
28-1/4" MAX.
23"
(TRACK ONLY)
8 X #8 x 5/8"
Wood screws
EDGE OF WORK SURFACE
1
8" X 8-25/32"
MOUSE PAD
Place the track 5/8" MAX. from the edge
w/ CATCHER
of work surface.
3
Install the bumper at the back end of the
track using a #8 wood screw.
TABLE OF CONTENTS:
ACORN NUT
PAGE 1 of 2
TRACK
BUMPER
#8 x 5/8"
Wood screw
....................1 X KP6 TRAY &
MOUSE PAD
....................1 X MECHANISM
...................1 X TRACK
...................1 X TRACK GUARD
...................20 X #8 x 5/8"
WOOD SCREWS
...................1 X BUMPER
...................1 X CORD CLIP
...................4 X ACORN NUT
Advertisement
Related Manuals for Mockett KP6/M2
Summary of Contents for Mockett KP6/M2
- Page 1 PART # KP6/M2 NOTE: Work surface must be at least 23-1/8" 24" deep. w/ Track Guard 22-1/4" MIN. 28-1/4" MAX. TRACK 8" X 8-25/32" MOUSE PAD Place the track 5/8" MAX. from the edge w/ CATCHER of work surface. 5-1/4" MIN.
- Page 2 PART # KP6/M2 NOTE: Remove shipping pin only after mechanism and tray are inserted into the mounted track. SHIPPING Slide the KP6 tray and mechanism into the mounted Tip front of the KP6 tray up and begin to lower track.
