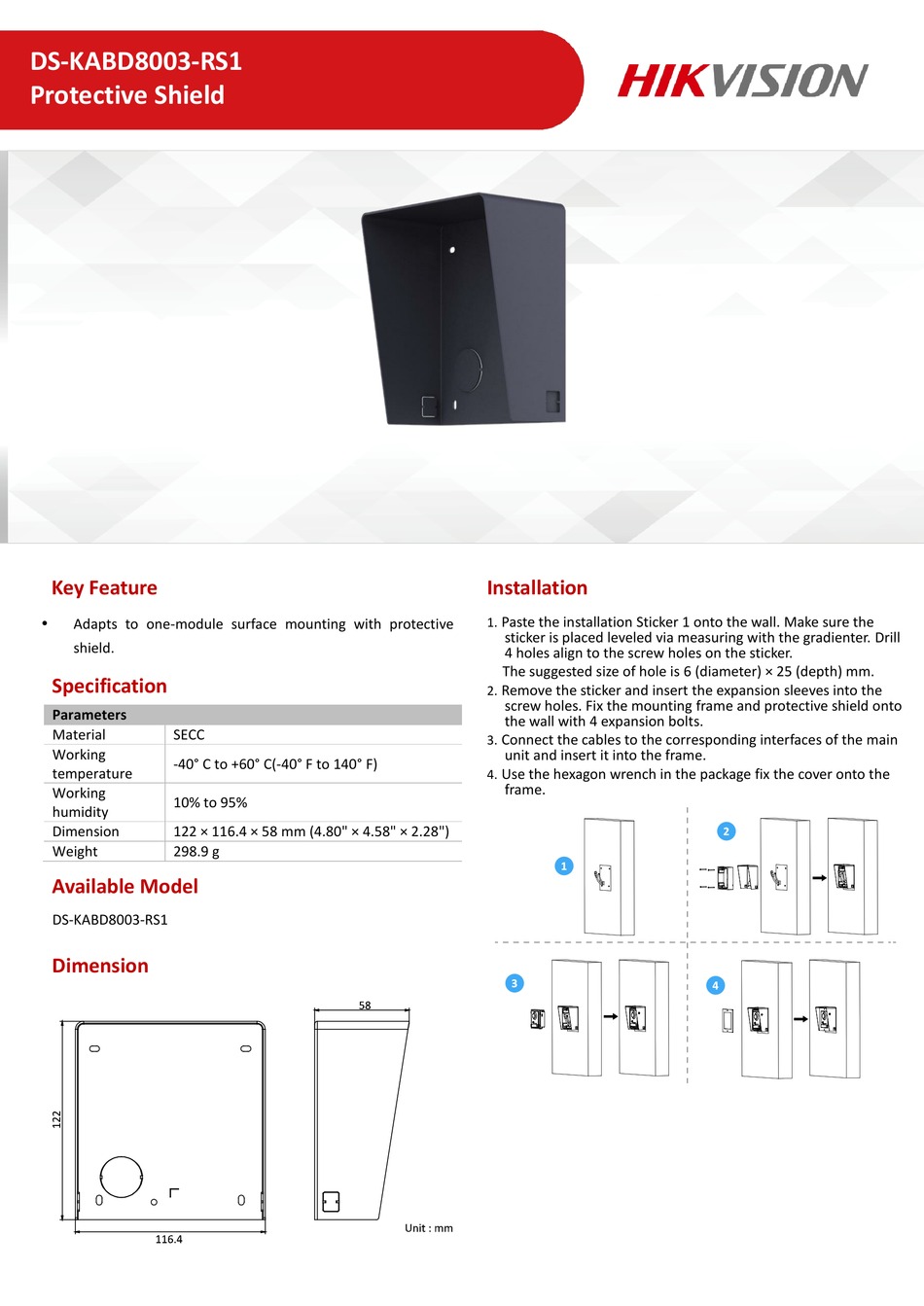

HIKVISION DS-KABD8003-RS1 Quick Start Manual

DS-KABD8003-RS1

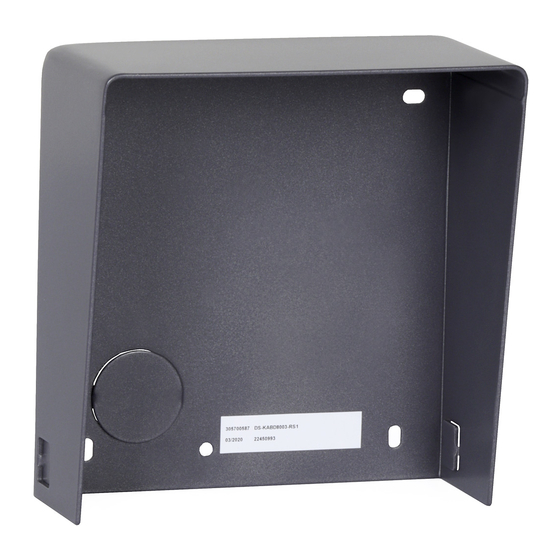

Protective Shield
Key Feature

Adapts to one-module surface mounting with protective
shield.
Specification
Parameters
Material SECC
Working
-40° C to +60° C(-40° F to 140° F)
temperature
Working
10% to 95%
humidity
Dimension 122 × 116.4 × 58 mm (4.80" × 4.58" × 2.28")
Weight 298.9 g
Available Model
DS-KABD8003-RS1
Dimension
Installation
Paste the installation Sticker 1 onto the wall. Make sure the
1.
sticker is placed leveled via measuring with the gradienter. Drill
4 holes align to the screw holes on the sticker.
The suggested size of hole is 6 (diameter) × 25 (depth) mm.
Remove the sticker and insert the expansion sleeves into the
2.
screw holes. Fix the mounting frame and protective shield onto
the wall with 4 expansion bolts.
Connect the cables to the corresponding interfaces of the main
3.
unit and insert it into the frame.
Use the hexagon wrench in the package fix the cover onto the
4.
frame.
