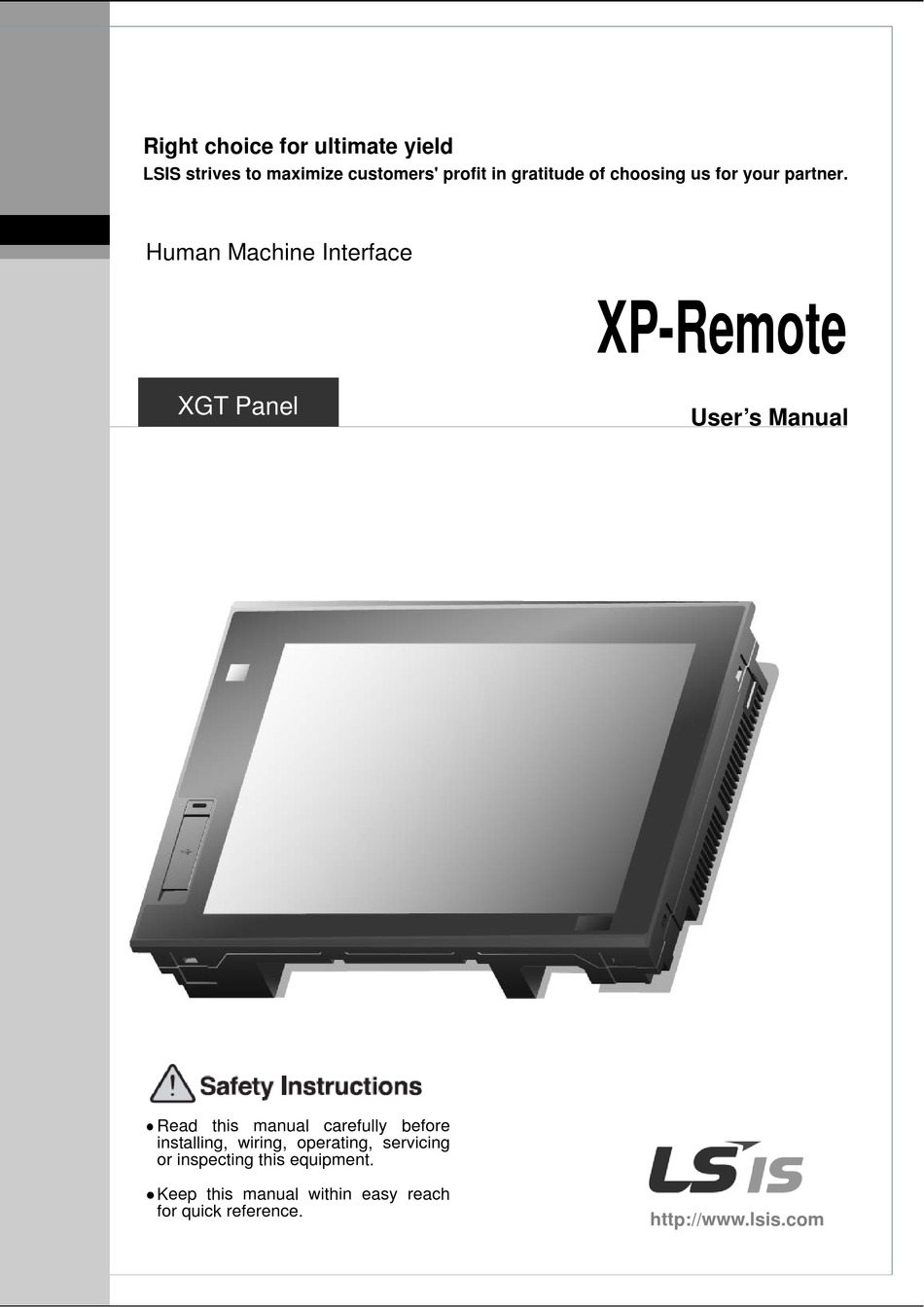

Right choice for ultimate yield
LSIS strives to maximize customers' profit in gratitude of choosing us for your partner.
Human Machine Interface
XGT Panel
Read this manual carefully before
installing, wiring, operating, servicing
or inspecting this equipment.
Keep this manual within easy reach
for quick reference.
XP-Remote
User's Manual
http://www.lsis.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XGT Panel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LSIS XGT Panel

  • Page 1 Right choice for ultimate yield LSIS strives to maximize customers' profit in gratitude of choosing us for your partner. Human Machine Interface XP-Remote XGT Panel User’s Manual Read this manual carefully before  installing, wiring, operating, servicing or inspecting this equipment.
  • Page 2 Before using the product… To use the product safely and effectively, please read this instruction manual thoroughly before use. ► Please keep to the safety precaution, for it is to prevent accidents and potential danger from occurring. ► Safety precaution is classified into ‘Warning’ and ‘Caution’ and their meanings are as follows. Warning Violating the instruction may result in serious personal injury or death.
  • Page 3 ’11 10 1. The initial edition issued V 1.32 ’15 06 1. Add Fix Screen Size to XGT Panel Size 2. Add Adjust Screen Size to Frame Size 3. Add Full Screen 4. Add XP-VNC control caution 5. Revise Restriction 54, 55 ※...
  • Page 4 List of Relevant Manuals Manual Title Manual Contents Manual Number User’s Manual on XGT Panel communication describing XGT Panel Circuit Diagram to connect XGT Panel products with Communication 10310000758 control devices such as PLC and inverter and their User’s Manual communication setting User’s Manual on XP-Builder software describing screen...

  • Page 5: Table Of Contents

    2.2.1 Execution of the XGT Panel Monitor ................... 15 2.2.2 Monitoring with the XP-Remote ....................15 2.2.3 Controlling the XGT Panel with the XP-Remote ................18 Chapter 3 The XP-Remote Configuration ................19 ~ 23 3.1 Screen Configuration ..........................19 3.2 Menu Configuration ..........................
  • Page 6 5.3 Obtain the Control Right ......................... 37 5.4 Return the Control Right ......................... 39 5.5 Obtain the Control Right From the XGT Panel ..................40 Chapter 6 Screen ........................41 ~ 49 6.1 Go to the XGT Panel’s Current Screen ....................41 6.2 Go to the Starting Screen ........................

  • Page 7: Chapter1 Starting

    Chapter 1 Starting 1.1 Special Features of the XP-Remote XP-Remote is a tool to monitor and control the XGT Panel installed in the office or in the plant. The XGT Panel can be monitored by several people at the same time.
  • Page 8 (8) Multiple users can monitor one XGT Panel.

  • Page 9: System Requirements For Executing The Xp-Remote

    1.2 System Requirements for Executing the XP-Remote (1) Personal Computer and Memory A computer with memory of at least 512MB or higher in the CPU of Pentium 4 or higher (2) Communication Port Ethernet ports (3) Hard Disc XP-Remote installation file size is about 40MB, it needs available area of at least 100MB or above to install.

  • Page 10: Installation Of The Xp-Remote

    1.3 Installation of the XP-Remote [Installation Sequence] (1) Execute installation files (2) Select a language to be installed (3) Prepare for installing the installation wizard as follows:...
  • Page 11 (4) Starting the XP-Remote Installation’ is displayed as seen in the following screen. Press the [Next] button to continue installation. (5) After inputting the user information, press the Next button.
  • Page 12 (6) Specify a folder location to install the XP-Remote. About 100MB installation space is needed for the XP-Remote. Check if there is sufficient space in the folder subject to installation. If the installation space is not sufficient, warning message will appear and proceeding to the next step is impossible. Press the [Next] button after selecting a folder.
  • Page 13 (8) Installation progress is displayed. (9) Press the End button to end installation normally.
  • Page 14 (10) Execute the XP-Remote from the [Start] Menu or execute ‘Go To Directly’ generated on the Desktop to start the task. [Deleting Sequence] (1) To remove the XP-Remote, select [Remove XP-Remote] from the [Start] Menu or use the Control edition’s [Add/Delete Program] function.

  • Page 15: Chapter 2 Introduction And Demonstration Of The Xp-Remote

    2.1.1 What is the XP-Remote? The user can remote monitor and control the XGT Panel by using the XP-Remote. The user can perform the XGT Panel’s functions above with the office computer not with the site’s XGT Panel. The user does not perform works under poor site conditions any more.

  • Page 16: Demonstration

    The XP-Remote shall be executed to monitor the XGT Panel from any remote computer. [Sequence] (a) Execute [XP-Remote 1.00] from the widows’ starting program (b) Select XP-Remote Menu [Tools]-[Options]-[Online] tap. (c) Select a network adopter with the same band with the XGT Panel’s IP band and close the dialog box by pressing Confirm.
  • Page 17 Note (1) ‘The same band with the XGT Panel’s IP band’ means that it is the same IP band if the XGT Panel’s IP Address is “165.244.149.113 and the PC’s IP is “165.244.149.113 (In case of Subnet Mask is 255.255.255.0) (d) Select XP-Remote Menu [Project]-[Reconnect] and input the XGT Panel’s IP Address.
  • Page 18 (f) The XGT Panel’s data connected with the XP-Remote will be synchronized. (g) The XP-Remote monitor will start.

  • Page 19: Controlling The Xgt Panel With The Xp-Remote

    (b) Press the [Enable control by XP-Remote] button and allow the XP-Remote to control. Note (1) When displaying the Status Bar by pressing the XGT Panel’s empty space once again, this button is displayed in [Disable control by XP-Remote]. (c) Press the XP-Remote Menu [Online]-[Obtain the Control Right] to obtain a control right.

  • Page 20: Chapter 3 The Xp-Remote Configuration

    Chapter 3 XP-Remote Configuration 3.1 Screen Configuration The XP-Remote screen consists of the following components: (1) Screen...
  • Page 21 [Window Description] Item Description Project name + XGT Panel Machine Type [XGT Panel’s IP Address] + XP-Remote is Title Bar(a) displayed. It appears on the window’s working window. Menu Bar(b) Basic menu for programs. Tool Bar(c) Button to execute commands directly from the menu.

  • Page 22: Menu Configuration

    Always show the same screen with the XGT Panel. Screen Non-Sync Mode Show different screen from the XGT Panel. Obtain the Control Right Press the mouse’s left button and the XGT Panel’s switch to control. The control right is returned to the XGT Panel. Controlling is not available Return the Control Right any more.
  • Page 23 Go to the Current Screen No +1 Convert to the screen that adds 1 to the current one. Fix Screen Size to XGT Panel Size Fix XP-Remote screen size to XGT Panel screen size. Adjust Screen Size to Frame Size Adjust XP-Remote screen size to frame Size.

  • Page 24: Toolbar Configuration

    Image Description Close the opened project and connect with the XGT Panel Reconnect again. Open a saved project and connect with the XGT Panel. Save Save the opened project. Screen Sync Mode Always show the same screen with the XGT Panel.

  • Page 25: Chapter 4 Project

    (1) Select Menu [Project]-[Reconnect] (2) Select Option [Connect to Next IP Address] (3) Input IP Address or press the [Search] button to search and select the XGT Panel on the network. (4) Press the [Connect] button to connect with the XGT Panel.
  • Page 26 Note (1) In case that communication with the XGT Panel is failed, the following message will appear. Check communication errors and attempt reconnection. (2) For detailed solutions in case of communication failure, refer to “Annex 1 Problem Solving”...

  • Page 27: Connect After Finding And Opening A Project

    4.1.2 Connect After Finding and Opening a Project [Sequence] (1) Select Menu [Project]-[Reconnect]. (2) Select Option [Connect After Finding and Opening a Project]. (3) Press the [Connect] button. (4) A dialog box to find a file appears. After finding a file, press the [Open] button.
  • Page 28 (5) After opening the selected file by pressing the [Open] button, connect with the XGT Panel with the saved IP Address. [Dialog Box Description] Item Description Connect After Finding Find and open a XP-Remote file among the saved files. Find a XRT file. XRT files and Opening a are XP-Remote project files.

  • Page 29: Connect After Opening Recent Projects

    Project List(b) Display the Project List that has been opened before. View All Paths(c) Show the entire path on which files are located. After opening a selected file, connect it with the XGT Panel with the saved Connect (d) IP Address.
  • Page 30 Note (1)For detailed solutions in case of communication failure, refer to “Annex 1 Problem Solving.” (2) If there is no selected project, the following error message will appear. (3) The same list with the Menu [Project]’s latest Project List is displayed.

  • Page 31: Close

    4.2 Close Close the opened project. [Sequence] (1) Select Menu [Project]-[Close]’ (2) In case that any opened project is closed without being saved or the connected XGT Panel’s drawing is revised, it checks whether to save changes or not.

  • Page 32: End

    Close the opened project and end the XP-Remote. [Sequence] (1) Select Menu [Project]-[End]. (2) In case that any opened project is closed without being saved or the connected XGT Panel’s drawing is revised, it checks whether to save changes or not. (3) The XP-Remote will be ended.

  • Page 33: Chapter 5 Online

    (1) If the current mode is the Screen Sync Mode, Menu [Screen Sync Mode] has been already checked. (2) In case that it is in the Screen Non-Sync Mode and a different screen from the XGT Panel is displayed, it converts into the same screen with the XGT Panel if the Screen Sync Mode is selected.

  • Page 34: Convert Screen By The Xgt Panel

    5.1.1 Convert Screen by the XGT Panel When a screen is converted by the XGT Panel, a screen is converted also on the XP-Remote. Convert screen by the channel number 2. Screen sync Screen sync complementation...

  • Page 35: Convert Screen On The Xp-Remote

    5.1.2 Convert Screen on the XP-Remote When the XP-Remote owns the control right, a screen is converted also on the XGT Panel as a screen is converted on the XP-Remote. Convert screen by the channel number 2. Screen sync Screen sync...

  • Page 36: Screen Non-Sync Mode

    Window2 can be seen differently. Even a screen is converted on the XGT Panel, the current screen is continuously displayed on the XP-Remote. In contrary, in case that a screen is converted on the XP-Remote, the XGT Panel continuously displays the current screen.

  • Page 37: Convert Screen By The Xgt Panel

    5.2.1 Convert Screen by the XGT Panel Even though a screen is converted by the XGT Panel, any screen is not converted on the XP-Remote. Convert screen by the channel number 2. Convert 5.2.2 Convert Screen on the XP-Remote Even though a screen is converted on the XGT Remote, any screen is not converted on the XP-Panel.

  • Page 38: Obtain The Control Right

    5.3 Obtain the Control Right At the first implementation, the XP-Remote does not own the control right. Therefore, the XGT Panel’s switches cannot be controller. Only after a control right is obtained from the XGT Panel, they can be controlled. [Sequence] (1) Press non-screen of the XGT Panel’s screen about 2 seconds.
  • Page 39 (2) The [Enable control by XP-Remote] button will be changed into the [Disable control by XP-Remote]one. (3) Select XP-Remote Menu [Online]-[Obtain the Control Right]. (4) When the XP-Remote obtains the control right, the XGT Panel can be controlled by pressing switches. Note (1) If the XP-Remote obtains the control right, [Online]-[Obtain the Control Right] Menu will be inactive.

  • Page 40: Return The Control Right

    In case that controlling is not needed any more on the XP-Remote or other XP-Remote needs the control right, the control right shall be returned to the XGT Panel. After the control right is returned, switches cannot be controlled from XP-Remote.

  • Page 41: Obtain The Control Right From The Xgt Panel

    5.5 Obtain the Control Right From the XGT Panel When the XGT Panel does not have the control right and it is urgently needed for the XGT Panel to control, the XP-Remote’s control right can be forcefully taken. Since then, the XP-Remote loses the control right.

  • Page 42: Chapter 6 Screen

    Screen Sync Mode Available If the XP-Remote has the control right and it is in the sync mode, the XGT Panel screen is also convertible on the XT Panel when the screen is converted. 6.1 Go to Screen of XGT Panel If the XP-Remote is in the Screen Non-Sync Mode, it is an available function when a different screen is displayed from the XGT Panel’s screen.

  • Page 43: Go To The Starting Screen

    6.2 Go to Start Screen A designated screen in a drawing file of the XGT Panel is converted to the starting screen Note (1) Starting screen: The basic screen in bold font in the XP-Builder project window is the starting screen.

  • Page 44: Go To The Previous Screen

    (1) Select XP-Remote Menu [Screen]-[Convert to the Previous Screen]. (2) Converting to the previous screen is performed. Note (1) If the connected XGT Panel upon the start of the XP-Remote has converted screens before, it is possible to convert to the previous screen.

  • Page 45: Go To The 1 Minus Screen

    6.4 Go to Current Screen No -1 The current screen is converted to the screen that subtracts 1 from the current one. [Sequence] (1) Select XP-Remote Menu [Screen]-[Convert to the 1 minus Screen]. (2) Convert to the screen that subtracts 1 from the current one. Note (1) No.

  • Page 46: Go To The 1 Plus Screen

    6.5 Go to Current Screen No +1 The current screen is converted to the screen that adds 1 to the current one. [Sequence] (1) Select XP-Remote Menu [Screen]-[Convert to the 1 plus Screen]. (2) Convert to the screen that adds 1 to the current one. Note (1) No.

  • Page 47: Screen Conversion Combo Box

    6.6 Screen Conversion Combo Box Screen Conversion Combo Box exists on the XP-Remote Tool Bar. Immediate converting to a particular screen number is possible. [Sequence] (1) Select an arrow of screen number combo box to unfold the combo. A screen number list is displayed in the drawing. (2) Select a screen number you want to move from the list.

  • Page 48: Fix Screen Size To Xgt Panel Size

    6.7 Fix Screen Size to XGT Panel Size Screen of XP-Remote is fixed as same size of XGT Panel. [Sequence] (1) Select menu [Screen] - [ Fix Screen Size to XGT Panel Size]. (2) It is not possible to resize the frame of XP-Remote.

  • Page 49: Adjust Screen Size To Frame Size

    6.8 Adjust Screen Size to Frame Size Screen of XP-Remote can be resized automatically as the frame. [Sequence] (1) Select menu [Screen] - [ Adjust Screen Size to Frame Size].

  • Page 50: Full Screen

    6.9 Full Screen Screen of XP-Remote is expanded to monitor size. [Sequence] (1) Select menu [Screen] - [ Full screen]. (2) Screen of XP-Remote will be returned to the original size if push the button [Close full Screen] or ESC.

  • Page 51: Chapter 7 Tools

    Chapter 7 Tools 7.1 Screen Capture A screen displayed on the XP-Remote is saved in a bitmap file. [Sequence] (1) Select XP-Remote Menu [Tools]-[Screen Capture]. (2) A dialog box of saving as other name appears. (3) Input a file name and press the Save button to save the file.

  • Page 52: Options

    Select a network adopter mounted on the computer. Data are sent or received via for communication(g) the selected network adopter to the XGT Panel. Note (1) Select a network adopter whose IP band adopter is the same with that of the XGT Panel to reduce communication error.

  • Page 53: Control

    (c) Note (1) PLC Control might be malfunctioning when any different screen script from that of the XGT Panel and that of the XP-Remote is implemented in non-sync mode. That is why Screen Script is not used.

  • Page 54: General

    Display new connection Set up whether to display a dialog box of reconnection when the XP-Remote dialog box when starting(c) starts. Fit frame to screen size after After the XP-Remote is connected with the XGT Panel, screen size is connection(d) automatically adjusted.

  • Page 55: Chapter 8 Restriction

    Chapter 8 Restriction 8.1 Restriction The following functions are not available on the XP-Remote even though they are available on XGT Panel while using the XP-Remote. function Description Global Script Global script in the drawing does not move. Screen script in the drawing does not move. But, it moves if [Options]-[Control] Screen Script [Implement Screen Script in the Screen Non-Sync Mode] option is selected.

  • Page 56: Difference In Movement Between Xp-Remote And Xgt Panel

    Window, which appears upon the window switch, is not displayed on the XP- Local Window Remote even though it is displayed on the XGT Panel. Ex) Input Tenky Window If language conversion is not caused by devices, different languages may be Convert Language displayed on the XGT Panel and the XP-Remote.
  • Page 57 Since the time of data collection is different, it can be displayed in a different Distribution Graph graph. Special switches of below list do not operate with XGT Panel. [History Alarm Viewer] Function [History Alarm Row Scroll] Function [Logging Viewer] Function...

  • Page 58: Annex 1 Problem Solving

    2) Connect the XGT Panel’s ethernet cable. 3) Check the wiring status of the ethernet cable and check its movement. In case that the XGT Panel and the PC are directly connected and they use cross cable hub, use direct cables.

  • Page 59: Annex1.2 Control Right Problems

    1) The control right is forcefully taken from the XGT Panel by pressing the [Disable control by XP-Remote] button by somebody. <Solution> 1) After checking if there is the control right by asking the site operator who is near the XGT Panel, and if not, obtain it again.
  • Page 60 Oceania +82-2-2034-4394 kacho@lsis.com (Kendra Cho) LOB 19-205, JAFZA View Tower, Jebel Ali Free Zone, Dubai, United Arab Emirates ■ North/Latin America +82-2-2034-4286 hkchung@lsis.com (Hank Raul Chung) Tel : 971-4-886-5360 Fax : 971-4-886-5361 E-Mail : shunlee@lsis.com ■ Southwest Asia/Africa +82-2-2034-4467 myleed@lsis.com (Henry Lee) ■...
