eLEDing EE818plus User Manual

SMART Solar Light ... Built with
IMPORTANT ....
Read this User Manual Before Installing...!!!
Included in this package:
1 – eLEDing Solar Light Body
1 – Wall Mounting Plate w/hardware

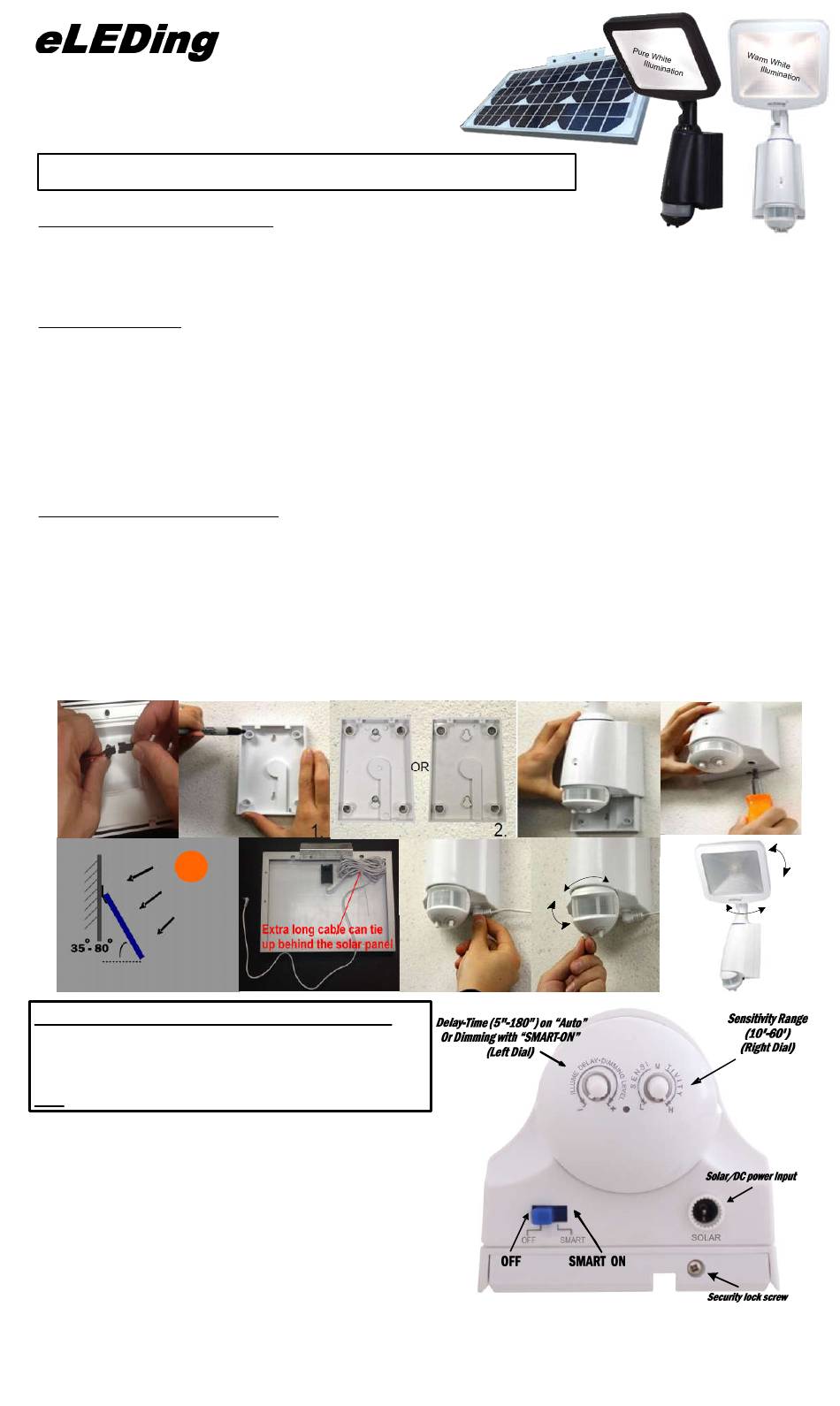

Initial Installation Set-up (
Connecting the Battery before setting up
1. The battery has been pre-charged before shipping and the light is ready for use
2. Make sure the main switch is in the OFF position
3. Open the battery cover on the back of the light and plug the battery into the connector and carefully make sure the plug position is
correct then replace the cover (Fig. 1-1)
4. Initially check the light and battery by moving the switch to SMART (ON), it should light up, then turn the switch back to
OFF for installation
Mounting the Light Body
1. The light body must only be mounted in a vertical position and it should be mounted at least 6 to 10 feet above the ground
2. Choose a flat and safe mounting surface. Mark the screw positions through the mounting plate screw holes onto the mounting surface
Use 2 or 4 hole mount, (Fig. 1-2 & 1-3)
3. For wood, vinyl and metal surfaces mount the back plate directly with provided screws. Drill clearance holes using a 3/16" masonry bit
for surface of concrete, brick or stucco. Insert the anchors provided with screws then position the mounting plate and screw the
fasteners in securely
4. Attach the light body unit to the wall mounting plate:
Slide the whole light body onto the wall mount plate from top going down with the light body "hinged" to the mounting plate (Fig. 1-4)
Then secure the mounting with the small securing screw on bottom of the light body (Fig. 1-5)
5. With the light body firmly secured in it's mounting position, the Pan & Tilt adjustment features can be used to adjust the direction of the
motion detector and the light head directions for optimal performance and coverage. The direction and angle of the motion detector can
be adjusted (Fig. 1-9). The LED light head can also be adjusted horizontally 180
Mounting and Connecting the Solar Panel
1. The solar panel must be mounted in a non-obstructed position where it will receive an average of at least 4 hours daily of direct sunlight
all year round. It should be mounted with a tilt of 35°- 80° degrees (Fig 1-6). A sturdy mounting location such as a wall, roof, on top of
patio, under the eaves, secure pole, or floor/ground base. This is required to make sure the solar panel is fastened down properly for all
weather conditions.
2. For Northern hemisphere installations the solar panel should be mounted with a Southerly facing position and visa-versa for Southern
hemisphere installation should face to the North (Australia, South Africa, South America e. g.)
3. Attach the hardware mounting bracket to the solar panel. Determine what length of the 10' connecting wire cord is needed to reach
the position of the light body and then tie the unused cord behind the solar panel with the plastic zip-tie that is provided (Fig. 1-7)
4. Then mark the screw holes through the mounting bracket and secure the solar panel in position with the provided hardware
5. Firmly plug the solar panel plug into the bottom of the light body (Fig. 1-8). The RED-LED indicator (inside the motion ball) will
begin to double flash (Fig. 1-8) indicating that charging status is active during a normal daytime sunny, partially sunny or cloudy day. If
this does not happen please check that the plug is fully plugged into the light body or if there is a problem with the wire.
Connect
the battery
before
1.
using!
Just "One Easy Step" to Begin Using the Light
After the battery is connected and the light fixture and solar panel
are mounted you may immediately begin using the light by just
moving the main switch to the SMART (ON) position. Using the
factory pre-set profile is recommended (Fig.2).
Note: NO FURTHER ADJUSTMENTS ARE NECESSARY
"eLEDing" Solar Lights are SMART lights and they have an
embedded intelligent microprocessor control chip. The light has two
operating modes, 'SMART-ON MODE' and 'AUTO MODE'. Both are
SMART modes of operation and utilize stored energy capacity for the
most optimum lighting efficiency.
The "settings" for Sensitivity/Range of motion, length of illuminating
time, levels of brightness and dimming are set and controlled with
adjustable dials (Fig. 2)
The family of eLEDing SMART solar lights use an exclusive
Intelligent Power Management (IPM) embedded feature for
managing and optimizing the Lithium based battery for a full range of
operation. This optimizes the battery's life cycle to adapt to most
environmental conditions allowing both the battery and light to perform
for many years.
®
Model EE818plus User Manual
CREE
Ultra-Bright LED
1 – Rechargeable Li-Poly Battery 1 – Tempered Glass Solar Panel
2 – Hardware Package with Screws and Anchors
Refer to Fig. 1)
2 Screws
2.
6.
o , forward and backward 120
4 Screws
3.
3.
7.
8.
Battery will charge with the switch in either OFF or SMART ON position
Fig. 2 – Main Switch & Control Settings
o (Fig. 1-10)
4.
P
Pan & Tilt
T
Pan & Tilt
9
9.
Rev. EE818plus 01122016 Page 1
Or
5.
T
p
10.
