Summary of Contents for Ascot Low Boy

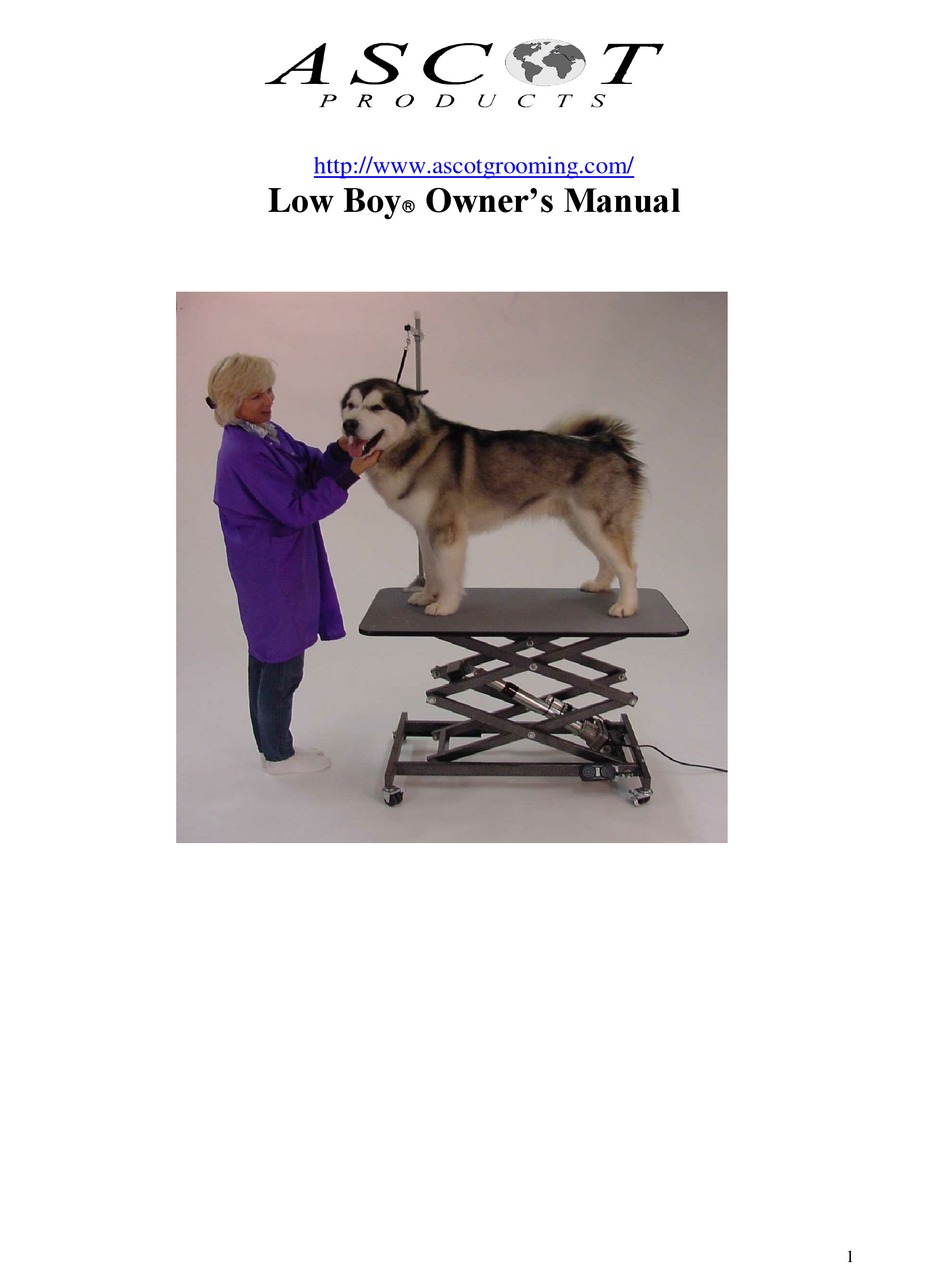

  • Page 1 Owner’s Manual Low Boy ...
  • Page 2 Exercise care when rolling the lift, especially when there is an animal being groomed. ▲ Securely bolt table to the floor of mobile grooming units. ▲ Only use Ascot's grooming arm and clamp to prevent damage to the raising mechanism of table.
  • Page 3  Raising and Lowing Your Low Boy table is designed to be fully adjustable from a starting height of only six inches to a maximum height of forty-two inches (without casters). The Low Boy table is raised by applying pressure to the left side of the foot switch, and lowered by applying pressure on the right.
  • Page 4  Maximum Capacity It is important that you never exceed the recommended maximum capacity of your Low Boy. The recommended maximum capacity of your Low Boy lift is 200 pounds (91 kilograms).
  • Page 5  Electric Actuator The electric Actuator requires little maintenance. A light application of lubricant can be applied at each end point pivot attachments.  Bearing Race Adjustment The upper bearing races can be adjusted or tightened with two 9/16” open-end wrenches. For information contact us at info@ascotproducts.com...
