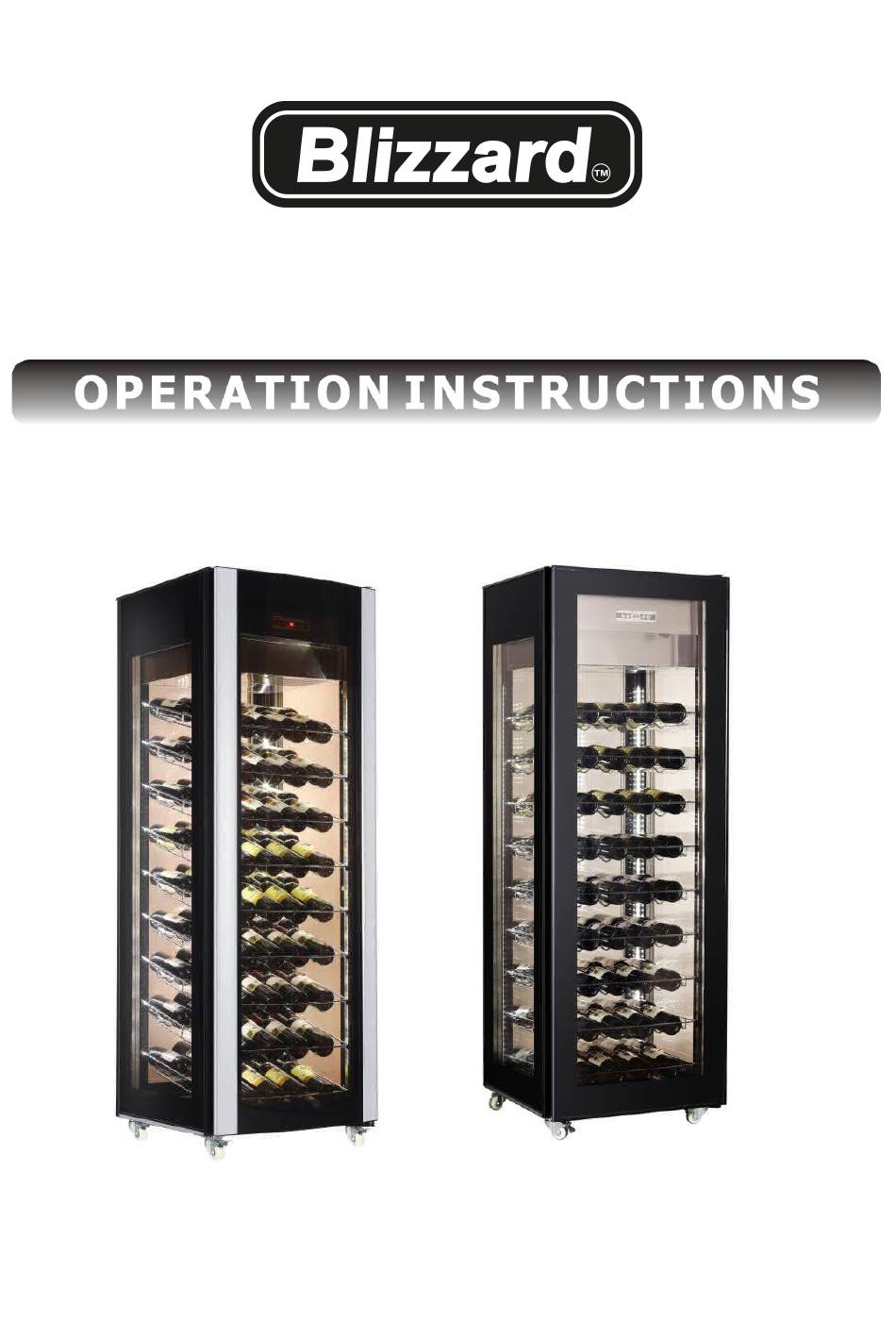

- Page 1 Wine Cooler...
-
Page 2: Table Of Contents
Thank you for choosing and purchasing our product. Please carefully read the operation instructions before use for a correct application and satisfactory effect. This appliance compliance with the requirement of directive 2006/42/EC. Contents General Structure and Parts Handle and Erection Preparation and Power Supply Use and Caution Maintenance... -
Page 3: General
General 1. Top brand fully enclosed compressor is used on the standing refrigerator. The refrigerant R290 is of an environmentally friendly agent. It features a rational configuration of refrigeration system with blower forced air cooling. The temperature is quite even inside the refrigerator. 2. -
Page 4: Handle And Erection
Handle and Erection Handle with care Unplug the wall socket first. Never tilt it over 45 degree during handling Dry place Always locate the refrigerator at a dry place. Sufficient space The distance from both sides and back of refrigerator to wall or other substance must not less than 10cm.The refrigeration capability might be decreased if its surround space is too small to circulate air. -
Page 5: Preparation And Power Supply
No hole making Never make hole on the refrigerator. Never install other matter on the refrigerator. Stable location To avoid the unexpected noise and vibration, Unpacking and locate the refrigerator on a flat and solid place. Preparation and Power Supply Exclusive power socket Normally, the power supply should be 220-240V, single phase AC with exclusive single phase three pin receptacle (250V 10A) and fuse (6A).The power receptacle must have a reliable earth connection. -
Page 6: Use And Caution
Prevent from flammables and explosive Never put any flammable or explosive inside the refrigerator such as ether, gasoline, alcohol, adhesive and explosive. Never put dangerous product nearby the refrigerator. No spray To spray the flammables such as paint or coating nearby the refrigerator is not allowed, otherwise fire might be resulted After power break After power break or unplugging the refrigerator, always wail at least 5 minutes and then you may plug... - Page 7 Front Panel Operation 1、 Set temperature Press „set“ button, the set temperature is displayed. Press button to modify and store the displayed value. Press „set“ button to exit the adjustment and display the cold-room temperature. 2、 If no more button is pressed within 10 seconds, the cold-room temperature will be displayed. 3、...
-
Page 8: Maintenance
The climatic class of the appliance is 4,the Units are suggested to be used at 16℃-32℃ ambient temperature. To avoid damages or other problems, this product can not be put or stored with any corrosive food . WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. -
Page 9: Trouble Shooting
Trouble Shooting Trouble Cause and Remedy Is the plug in socket well? No refrigeration Is the fuse broken? Is there no power? Is it under the sunshine?Is there any heat source nearby? Unsatisfactory Is the surrounding ventilation bad? refrigeration Does the door close well?Does door open for a long time? Is the door seal strip deformed or damaged? Is food congested or too much? Does food block the air suction or outlet? -
Page 10: Major Parameters
Circuit Diagram Major Parameters BZ-WD400 Model Rated Input Power (W) 500/385 Refrigeration temperature(ºC) 5-18 Rated Frequency(Hz) Rated Current (A) 2.9/2.5 Refrigerant & Injection(g) R290(120)/R134a(200) Type of Climate Protected Mode Lamp Power (W) 1.5*4(LED) Rated Voltage(V) 220-240~ Storage Volume(L) 81 pcs... - Page 11 When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal. Pentland Wholesale Ltd Blizzard House Unit17 Walker Industrial Estate Walker Road Blackburn, BB1 9QE Tel;...
