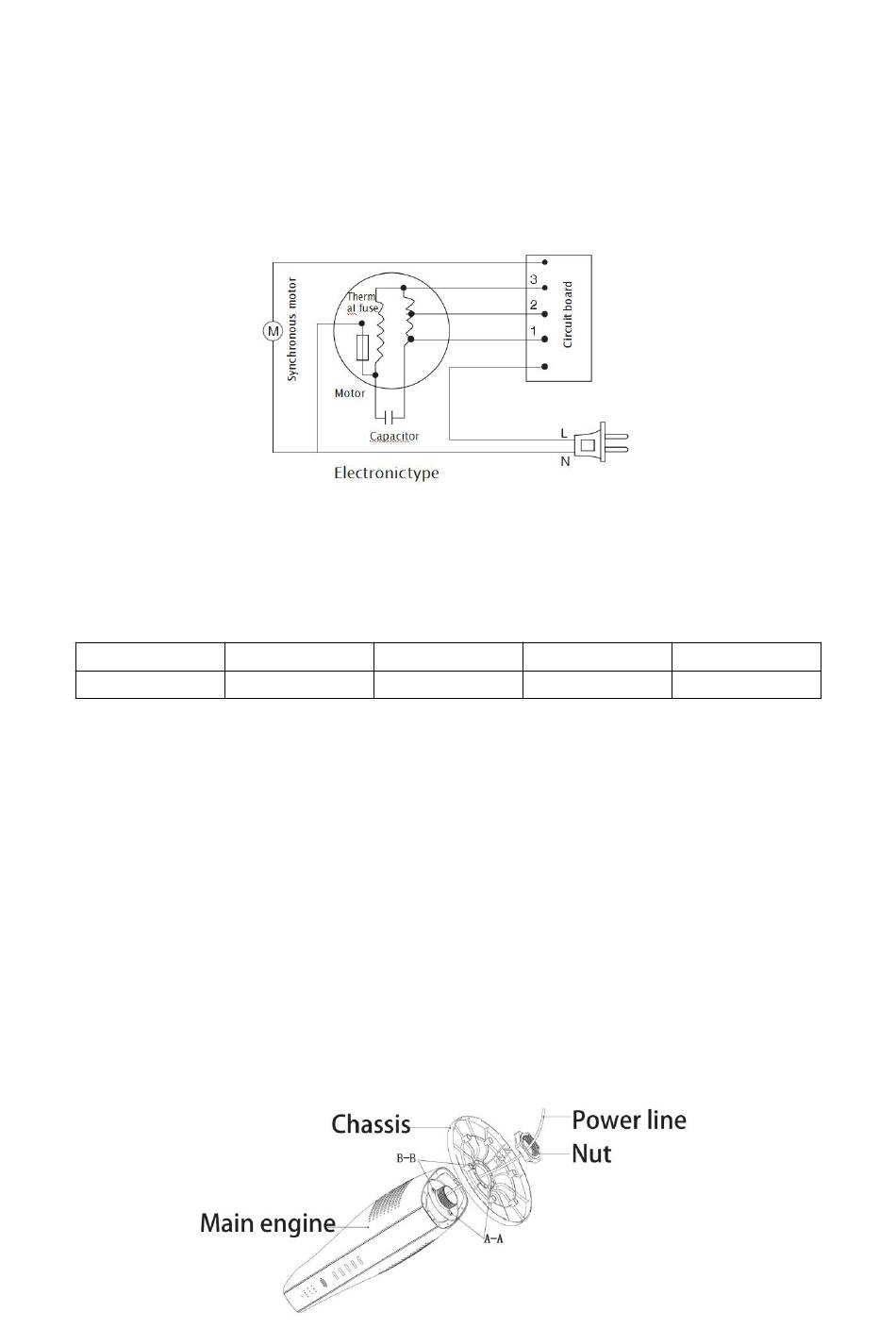

I. Circuit Diagram
TECHNICAL PARAMETERS
Model
Rated Voltage
BLF-YH05
AC120V
INSTALLATION
1. Open the packing box and place the product on a flat surface or table. Check
whether the goods in the box are in line with packing list.
2. Thread the power line into chassis, nut and machine engine and screw the nut in
place according to the clockwise direction (the chassis dismantlement order is
reverse to the above mentioned order) after corresponding positioning according to
(A-A) and (B-B). (As shown in Figure I) (It is not necessary to install the chassis for
BLF-YH05). Organize the power line and put it into the chassis trunking according to
its flat position direction. (Figure II)
Installation Manual
Rated Frequency
60Hz
1
Rated Power
Control Type
50W
Electronic
Figure I
Advertisement
Table of Contents
Related Manuals for Trustech BLF-YH05
Summary of Contents for Trustech BLF-YH05
- Page 1 (A-A) and (B-B). (As shown in Figure I) (It is not necessary to install the chassis for BLF-YH05). Organize the power line and put it into the chassis trunking according to its flat position direction. (Figure II)
- Page 2 Figure II 3. Installation of main engine: Align six snap joints on the machine body of the air outlet with six snap joint holes on the machine engine, and push the air outlet toward the panel, until it is aligned with the panel. Then, the whole machine is installed (the method to dismantle the machine body of the air outlet is reverse to the above mentioned order).
