Summary of Contents for BA Pumps & Sprayers TSX400 Series
-

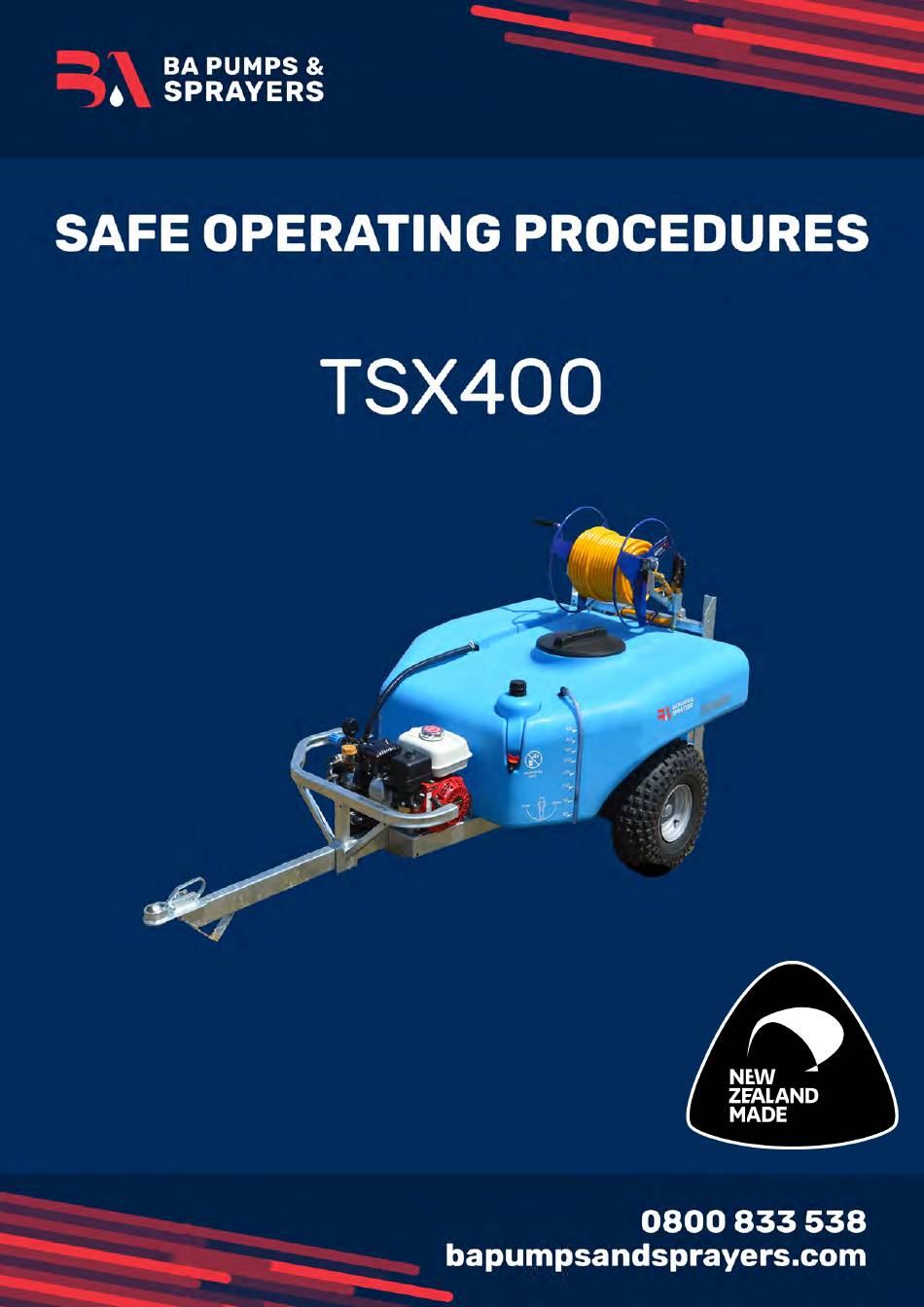

Page 2: Safe Operating Procedures
SAFE OPERATING PROCEDURES TSX400 AN IMPORTANT MESSAGE FOR OWNERS & OPERATORS OF TSX SPRAYERS Safety is our primary concern in the design, manufacture, sale and use of BA Sprayers. BA Pumps & Sprayers would like to remind you of the safety rules when operating one of our sprayers or it’s accessories. - Page 3 The safety of all chemicals used in agriculture is under the jurisdiction of a government agency, ie NZ Ministry for the Environment. Further local government laws may apply. BA recommend the use of a safety roll bar on your UTV. BA recommend that TSX sprayers are used on a suitable UTV providing UTV manufacturers guidelines are fully observed.
-
Page 4: Conditions Of Warranty
BA Pumps & Sprayers Warranty Policy All products Private Domestic Use 12 months Private and Commercial Agriculture 12 months Agricultural Contractors 6 months All Non-Agricultural Applications 3 months The warranty period begins on the date the product is delivered to the first retail purchaser. BA Pumps &... - Page 5 BA Pumps & Sprayers Warranty Policy Environmental Conditions and Application: Deteriorated or failed components such as diaphragms, O'rings, hoses, seals, electrical wiring and connections damaged by corrosive chemicals dirt and sand, excessive heat or moisture. Owners should ensure the type and strength of chemicals used in the sprayer are compatible with the design of the unit.
-
Page 6: Model Specifications
To the Owner of this Sprayer Our sprayers have been designed and manufactured with the discerning operator in mind. BA Pumps & Sprayers provides long-term durability by using the finest materials in the construction of our products. This booklet deals with the Warranty, Operation and Trouble Shooting of the TSX range of sprayers. -
Page 7: Installation
TSX400 PA430 Tank: 400 litre UV stabilized and impact resistant polyethylene tank. Pump: Bertolini PA430 pump, 40 lpm and 580 psi Engine: Honda GX160 Hose & Reel: 50 metre maxi reel Spray Gun: SPOT300 Filter: Arag 32mm, 50 Mesh Filter Controls: Karin two tap pressure regulator with 40 BAR spring Recommended Operating Pressure: Spot Spraying: 100-400 psi Boom: 1-6BAR XP Kit: 1-3 BAR... - Page 8 TSX400 POLY2030 SPOT300 Gun Hose Reel Pressure Regulator Honda Engine Bertolini Pump Filter Hose Reel On/Off Pressure Adjustment & Spare tap for Boom or XP Kit Gauge MAX 215 PSI Drain Tap & Pump Suction Engine Oil Dip Stick Hose Reel Lock should not should not Pump Sight Glass (Oil...
- Page 9 TSX400 PA430 SPOT300 Gun Hose Reel Pressure Regulator Honda Engine Bertolini Pump Filter Hose Reel On/Off Spare tap for Boom or XP Kit Pressure Adjustment & Gauge MAX 580 PSI Pump Sight Glass. Check oil level Engine Oil Dip Stick Hose Reel Lock on pump when running.
- Page 10 Honda Engine - Before Operation Checks It is essential you read the Honda Manual before operation of your sprayer for the first time. Improper use can result in serious injury or death. For your safety, and to maximize the service life of your equipment, it is very important to take a few moments before you operate the engine to check its condition.
- Page 11 Honda Engine - Operation Before operating the engine for the first time, please review the SAFETY INFORMATION in the Honda Manual. Warning! Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you. Avoid any areas or actions that expose you to carbon monoxide. Operation Instructions: 1.
- Page 12 Bertolini Pump - Before Operation Checks It is essential you read the Bertolini Manual before operation of your sprayer for the first time. Improper use can result in serious injury or death. For your safety, and to maximize the service life of your equipment, it is very important to take a few moments before you operate the pump to check its condition.
- Page 13 Oil Change: Change oil after the first 500 hours as follows: - Remove the tank plug and the drain plug - Rotate the shaft to remove excess oil - Wash inside the parts with Diesel oil - Refill pump with oil through the glass and rotate the shaft to distribute oil and fill to the proper level - Start pump and let run for a few minutes at zero to facilitate the correct lubrication of inside parts...
-
Page 14: Troubleshooting
(Diaphragm Pumps) Trouble Shooting TROUBLES CAUSES REMEDY The pump - Valves have worn seats - Check valves doesn’t reach - Suction hose with air - Check hose the required pockets or irregular elbows - Check nozzles pressure - Worn nozzles or with wrong - Clean strainer diameter - Clogged strainer... -
Page 15: Chemical Application
Operating Instructions Fill the sprayer with clean water. Check suction line strainer for dirt or damage. Connect pump and ensure it primes correctly, holding the spray lance trigger on until it sprays steadily. Check all pipes, hoses, hose clamps and connections for leaks or damage. Check pump and engine oil levels Ensure the tank lid is securely closed If you own a TSX2030 or 430 model (petrol model) - When starting up the pump, turn the... -
Page 16: General Guidance
Care of Protective Clothing Protective clothing should be properly cared for. Rinse heavily contaminated clothes in the open before washing in the laundry. Wash and dry these clothes every day and keep them separate from other washing. Respirators need special care. Clean the respirator after spraying. Use soapy water then rinse and allow to dry completely before storing in a clean plastic bag. - Page 17 TSX400 PARTS LIST www.bapumpsandsprayers.com 0800 833 538...
- Page 18 TSX400 PARTS EXPLODED www.bapumpsandsprayers.com 0800 833 538...
