Front (cab)
PARTS INCLUDED IN YOUR KIT
•
1 x Hard folding cover assembly
•
3 x D Shaped cab bumpers
(taped to cover)
•
1 x Bulkhead seal
(¾ x ¾ x truck width)
•
2 x Black drain tubes
1
3
Remove tie
downs from
rail. Don't worry
they will be
re-installed later.
BAK Industries • 1100 N. Glenstone Ave. Suite 140, Springfield, MO 65802 • 844-779-8986 • bakindustries.com

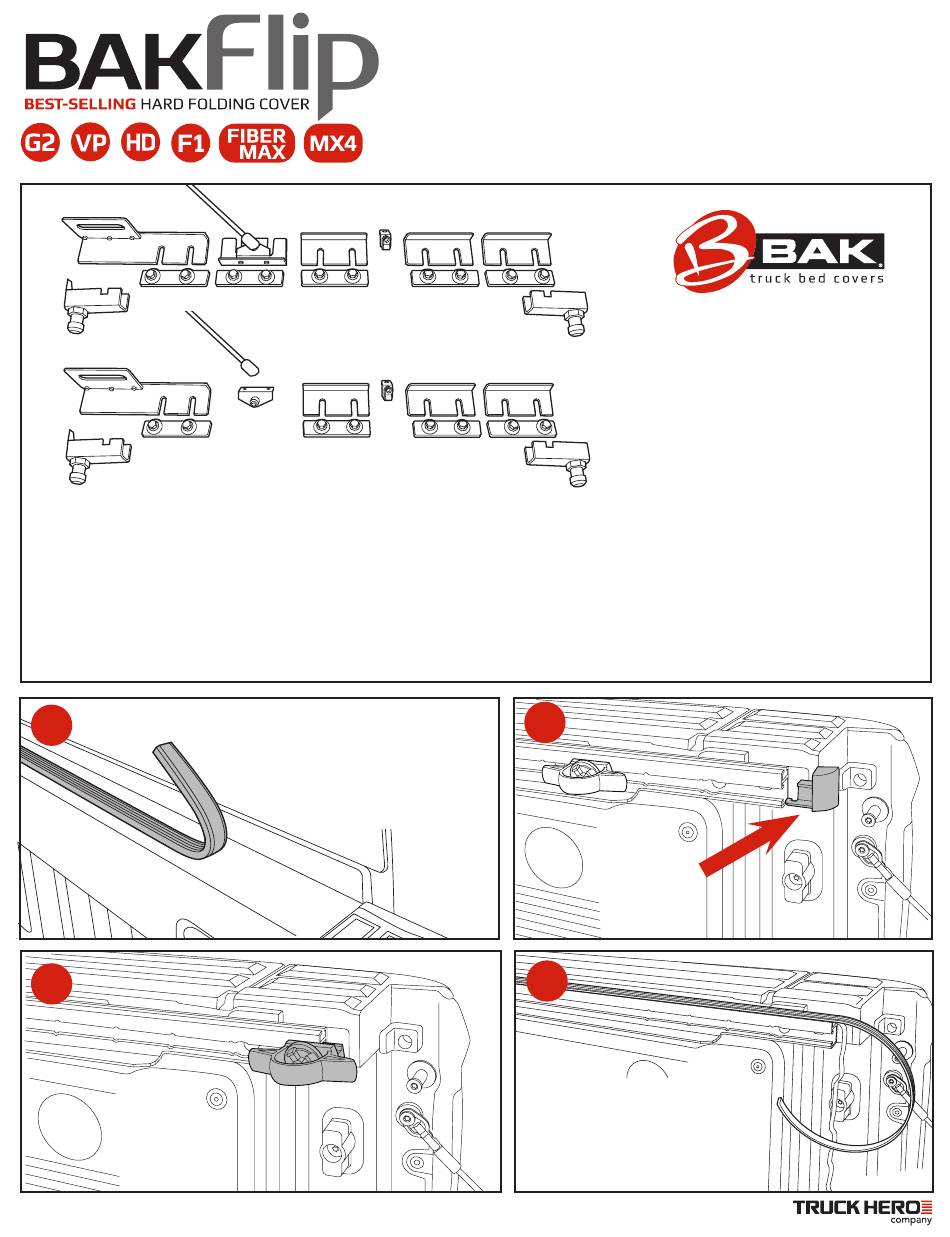

RAM BOX
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly. Call 844-779-8986 Mon - Fri
8:30 am - 7 pm EST or email support@bakindustries.com
6.5' bed
5.5' bed
1 HARDWARE BAG
•
2 x Elevator bolt (w-large
flat head)
•
4 x Rubber washers
•
2 x Large flat washers
•
2 x Lock washers
•
2 x Star knobs (thumb screws)
•
2 x Buckle ends
•
4 x Machine screws
•
4 x Threaded posts
Install the provided cab/
bulkhead seal (weather strip).
Wipe surface with isopropyl
alcohol and let flash dry
before applying tape.
Rear (tailgate)
2
Unclip and
remove plug
from rail.
4
Apply provided adhesive
promoter (wipes) to top edge
of the aluminum rail and tape
seal to top inner edge, the
rubber has a bump that goes
to the inside.
Part# 318A0030 Rev. A
RAM BOX HARDWARE
•
Front cover mounting plate
(left & right)
•
Prop rod swiel mounting bracket
•
Prop rod to lock cover open
•
Prop rod retainer clip
•
Cover latching plate
•
Track mounting bracket
•
Front drain cup (left & right)
•
Rear tailgate drain cap
(left & right)
•
Adhesive promoter packet
(not shown)
•
Bulkhead seal (not shown)
•
Rail seals (not shown)
Advertisement
Table of Contents
Summary of Contents for BAKFlip VP
- Page 1 RAM BOX INSTALLATION SHEET Any damaged or missing parts? Parts will be shipped to you directly. Call 844-779-8986 Mon - Fri 8:30 am - 7 pm EST or email support@bakindustries.com 6.5’ bed 5.5’ bed Front (cab) Rear (tailgate) RAM BOX HARDWARE •...
- Page 2 The top edge of the plate aligns with the rubber seal. Then Set the cover in the folded position on the BakFlip reinstall tiedown. rails towards the front of cab. The small panel IMPORTANT...
- Page 3 The large flat bolt goes down through the front panel on each side. Underneath the cover, the order of washers is as follows: rubber washer first, then large Mount cover with elevator bolt, rubber washer, flat washer, flat stainless washer, then the lock washer, and finally lock washer and star knob in order.
- Page 4 IMPORTANT BAKFlip safe operation and use IMPORTANT NOTICE While driving, cover must be completely flat and secure with all latches in the closed position OR completely folded up (all panels) and secured at the cab. DO NOT DRIVE with cover partially opened.
- Page 5 Pull down on either cable to release both rear latches with one hand while lifting the panel with the other hand. EXCEPTION - BAKFlip MX4 offer’s a universal tailgate seal which allows the tailgate to close with the cover up or down.
- Page 6 Warranty BAK® Industries (“BAK”) warrants your BAKFlip Hard Folding Cover to be structurally free from defects in material and workmanship for the period as outlined in the table below from the retail date of purchase. Warranty registration must be on file and/or proof of original purchase (detailed and dated receipt) required for warranty service. Warranty is non- transferable and applies to the original purchaser of the BAK product only.
