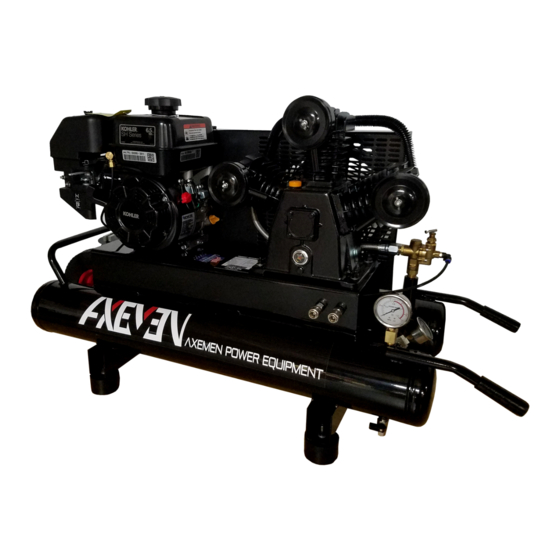

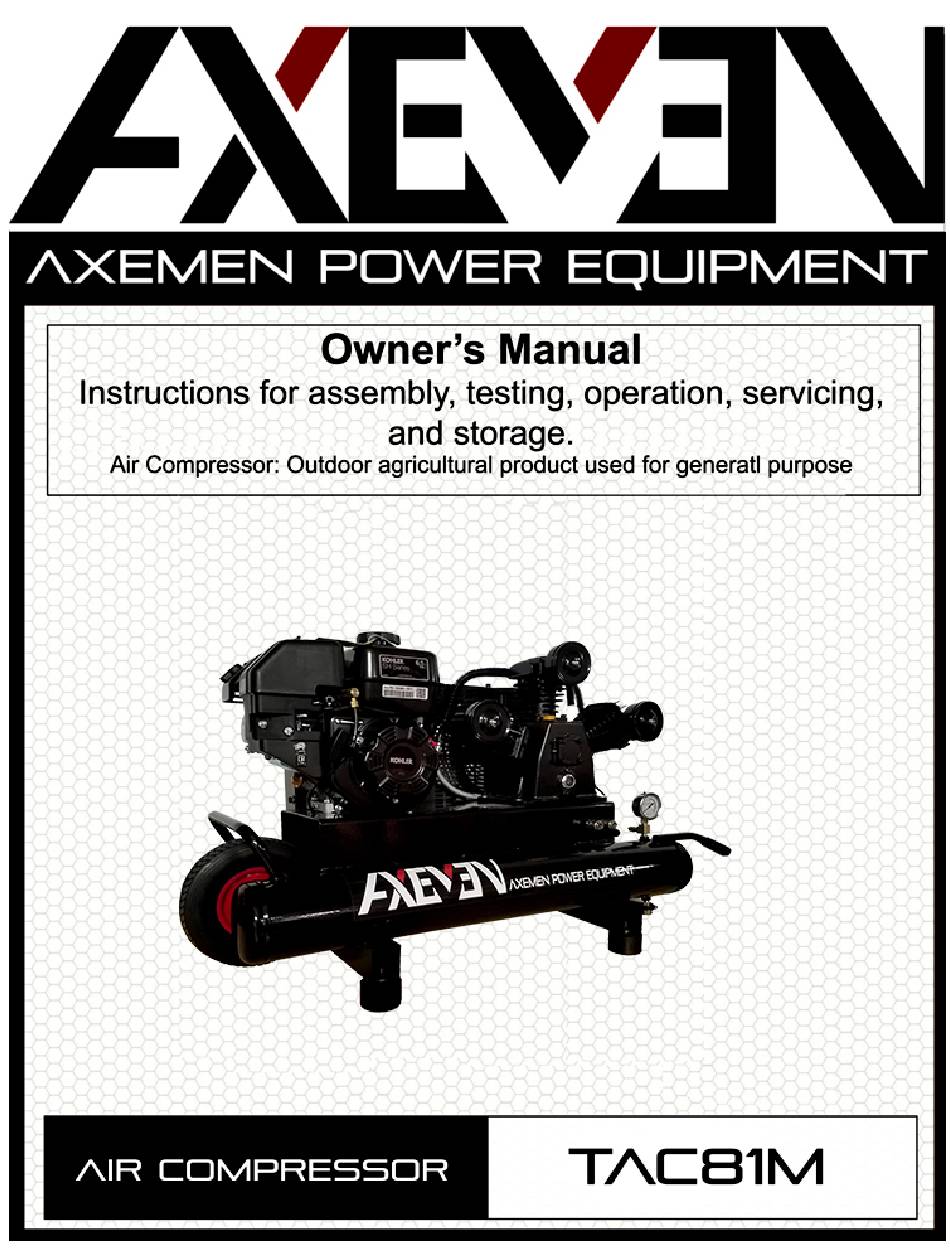

Axemen Power Equipment TAC81M Owner's Manual

Outdoor agricultural product used for generatl purpose
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAC81M and is the answer not in the manual?

Questions and answers

Summary of Contents for Axemen Power Equipment TAC81M

  • Page 2: Welcome

    WARNING: READ and UNDERSTAND the Owner’s Manual completely before using this air compressor. Assemble, test and use only in accordance with the Owner’s Manual instructions. WEAR personal protective gear when filling, using, cleaning, and servicing the air compressor. DO NOT START the air compressor until you have read, understood, and followed the instructions in this manual.

  • Page 3: Retain For Your Records

    Retain this information for your records. You’ll need to refer to this information when ordering parts and contacting customer service about maintaining your air compressor and its warranty. Model number: _________________________________________ Serial number: __________________________________________ Date purchased: ________Month _____________Day _____________Year TAC81M Nameplate...

  • Page 4: Table Of Contents

    Contents Welcome ..............................1 Customer service ............................ 1 Retain for your records ........................... 2 Important safety precautions ........................5 Air Compressor Safety ..........................6 Carbon Monoxide WARNINGS ....................... 9 Burn and fire WARNINGS........................10 About your air compressor ........................10 Reference manual contains critical information ..................
  • Page 5 Inspect Air Filter ............................ 31 Inspect Compressor for Air Leaks ......................31 Engine Maintenance ..........................31 Change Pump Oil ..........................32 Inspect & Clean Spark Arrestor (If equipped) ..................33 Keep Compressor Clean ........................33 Between-Use Storage ........................... 34 Draining the Tank: ..........................35 Long Term Storage Preparation ......................

  • Page 6: Important Safety Precautions

    Important safety precautions This manual contains critical safety information. Please read the entire manual closely. Because safety is paramount and using an air compressor carries significant responsibilities, we have outlined warnings and the general hazards of operating air compressors. In addition, we have summarized the recommended procedures for operating, repairing, maintaining, and storing your specific air compressor to keep you and others safe.

  • Page 7: Air Compressor Safety

    Air Compressor Safety WARNING: SPECIAL HAZARDS • CO Poisoning: Exhaust from engine contains carbon monoxide, a poisonous gas that can cause carbon monoxide poisoning and possible death if inhaled. • Injection Injury: High pressure air stream can pierce skin and underlying tissue, leading to serious injury and possible amputation.
  • Page 8 Under the influence: Never operate, or let anyone else operate, the air compressor while fatigued or under the influence of alcohol, drugs, or medication. * Keep this manual for reference and review. Air Compressor Operation This air compressor is intended for outdoor use only. This compressor is powered by a gasoline engine and therefore can only be operated outdoors.
  • Page 9 NOTICE: ATTENTION: Rental Companies and Private Owners who loan this equipment to others! • All persons to whom you rent/loan this air compressor must have access to and read this manual. Keep this owner’s manual with the air compressor at all times and advise all persons who will operate the machine to read and understand it.

  • Page 10: Carbon Monoxide Warnings

    Safety warnings Carbon Monoxide WARNINGS The exhaust from your air compressor contains carbon monoxide. Breathing this poisonous gas, which is odorless and colorless, can cause unconsciousness and could even kill you. Only operate your air compressor outdoors. Operating an air compressor carries serious responsibility. There are precautions that you need to take when operating an air compressor: •...

  • Page 11: Burn And Fire Warnings

    Burn and fire WARNINGS Your air compressor’s exhaust system becomes hot enough that it could ignite some materials and cause severe burns. Gasoline is highly flammable and can be explosive, so use extreme caution when refueling and operating your air •...

  • Page 12: What's In The Box

    Attention: All Rental Companies and Private Owners who loan this equipment to others! All persons to whom you rent/loan this air compressor must have access to and read this manual. Keep this owner’s manual with the air compressor at all times and advise all persons who will operate the machine to read it.

  • Page 13: Air Compressor Major Components And Controls Diagram

    Air Compressor Major Components and Controls Diagram Below are diagrams of your air compressor’s major components and controls: 1. Engine: NOT shipped with oil. Refer to 8. Regulator: Adjusts outlet pressure, not engine Owner’s Manual for proper oil and to exceed pressure rating of attachment capacity.

  • Page 14: Engine Major Components And Controls Diagram

    Engine Major Components and Controls Diagram...

  • Page 15: Engine Controls

    Engine Controls Fuel Shut Off The fuel shut off valve opens and closes the connection between the fuel tank and the carburetor. The fuel shut off valve lever must be in the ON position for the engine to run. When the engine is not in use, leave the fuel valve lever in the OFF position to prevent flooding and to reduce the possibility of fuel leaks.
  • Page 16 For Outdoor Use ONLY Select a suitable outdoor location: • Where it will NOT be exposed to rain, snow, or direct sunlight. • Where no flammable vapors, dust, and gases are present. • At least 7 feet away from combustible materials. •...
  • Page 17 • Place the unit so that the exhaust fumes will not be directed towards people or building air intakes. • Keep a fire extinguisher rated “ABC” nearby which is properly charged. Be familiar with its use. • Provide battery-operated or battery back-up type carbon monoxide alarms in a structure that is in close proximity to the running compressor.

  • Page 18: Pre-Operation Check

    Pre-operation check Are you ready to get started? Your safety is your responsibility. A little time spent in preparation will significantly reduce your risk of injury. Knowledge Read and understand this manual. Know what the controls do and how to operate them. Familiarize yourself with the air compressor and its operation before you begin using it.

  • Page 19: Is Your Air Compressor Read To Go

    Respirator Always wear a respirator when spraying and spray in a well-ventilated area to prevent health and fire hazards. Is your Air Compressor read to go? For your safety, and to maximize the service life of your equipment, it is very important to take a few moments before you operate the air compressor to check its condition.
  • Page 20 Check/Add Oil to Engine and Pump Check the oil levels in the engine and pump. Use dipstick for engine oil level and sight glass for pump oil level. Add oil as needed. A low oil shutdown feature prevents the engine from starting without sufficient oil.

  • Page 21: Fuel And Oil Requirements

    Check the Engine • Check the oil level (see engine manual). To avoid the inconvenience of an unexpected shutdown by the Oil Sentry system, always check the engine oil level before startup. • Check the air filter (see engine manual). A dirty air filter will restrict air flow to the carburetor, reducing engine and Air Compressor performance.

  • Page 22: Monitoring The Fuel Level

    Monitoring the fuel level DO NOT OVERFILL FUEL TANK When adding fuel, turn the air compressor engine off and let it cool at least 2 minutes before removing the gas cap. Make sure the engine is cool before proceeding. After the engine is cool, remove the fuel tank cap and check the fuel level.

  • Page 23: Using Caution When Refueling The Tank

    WARNING: Hot Engine Hazard A running engine is hot enough to ignite fuel. Never add fuel or remove gas cap if engine is running or still hot. Let cool more than 2 minutes or longer until engine is cool before opening gas cap. Using caution when refueling the tank Fuel Outdoors: Fill fuel tank outdoors –...

  • Page 24: Operation

    Operation Air Compressor Placement For Outdoor Use ONLY DANGER: Carbon Monoxide Hazard Exhaust fumes from the engine contain carbon monoxide (CO), a poisonous gas you cannot see, smell, or taste. The CO generated by the engine can rapidly accumulate, even in areas that appear to be well ventilated, resulting in dangerous and fatal concentrations within minutes.
  • Page 25 Starting engine. (See the engine owner’s manual for more details.) Turn the fuel shut-off valve (A) to the ON position. See Figure 6. For a Cold Engine – Place the throttle control (A) midway between the SLOW and FAST positions. See Figure 7. Place the choke control (A) into the ON position.

  • Page 26: Air Hose And Tool Use

    WARNING: Overheating This compressor is not equipped with “auto shut off”. Do not allow to overheat. Failure to allow adequate ventilation or restrict air flow may cause the machine to overheat. WARNING: Inflatables/Low PSI tire Never use compressor to inflate small low-pressure objects, i.e. balloons/inflatables, small or low volume PSI tires.

  • Page 27: Attaching Air Hose And Tools

    CAUTION: Incompatible Component Hazard Do not operate this unit with any components rated less than the maximum operating pressure of the unit unless a regulator limiting pressure is used. • When using high-pressure tools, make sure the tool is properly coupled, user is wearing protective equipment, and there are no persons nearby.

  • Page 28: Shutdown Procedures

    Moisture in Compressed Air: Moisture in compressed air will form into droplets as it leaves air compressor pump. When humidity is high or when a compressor is in continuous use for an extended period of time, this moisture will collect in the tank. When using a paint sprayer or sandblast gun, this water will be carried from the tank through the hose, and out of the gun as droplets mixed with the spray material.

  • Page 29: Maintenance

    Maintenance Importance of maintenance Proper maintenance is critical for smooth operation of your air compressor and safety. Below are guidelines including a maintenance schedule and inspection procedures. There are additional procedures that are more complicated or require special tools that are best performed by certified technicians and qualified...

  • Page 30: Air Compressor Maintenance Schedule

    Exhaust contains carbon monoxide: Never operate your air compressor in an enclosed or partially enclosed area. Be sure there is adequate ventilation. The engine exhaust contains carbon monoxide, a poisonous gas that is odorless and colorless. Be sure to have adequate ventilation when operating your air compressor and never allow the gas to build up.

  • Page 31: Detailed Instructions - Maintenance & Repair

    Spark arrestor* Clean (optional part) Fuel tank Clean and filter* Valve clearance Check/adjust Combustion Clean/adjust chamber* Cylinder* Clean Check for Air Check Leaks Check Pump Oil Check Level Change Pump Change/Clean Oil/Clean Drain Plug Inspect & Drain Inspect and Receiver Tank drain Check Drive Belt Inspect and...

  • Page 32: Inspect Safety/Relief Valve

    NOTICE: Dispose of used motor and pump oil in a manner that is compatible with the environment and in accordance with local, state, and federal laws and regulations. • Take used oil in a sealed container to your local recycling center or service station for reclamation.

  • Page 33: Change Pump Oil

    • Change oil after the first 5 operating hours, and at least every 100 hours of use after that. Please refer to the engine owner’s manual for details. WARNING: Burn Hazard Never open oil port while compressor is running. Hot oil can spray over face and body.

  • Page 34: Inspect & Clean Spark Arrestor (If Equipped)

    To align belt, lay a straight edge against the face of the flywheel touching the rim at two places. (See Figure 9 to the right) Adjust flywheel or engine pulley so that the belt runs parallel to the straight edge. If necessary, loosen set screw and use a gear puller to move the pulley on the motor shaft.

  • Page 35: Between-Use Storage

    Storing and transporting your air compressor Keep your air compressor upright at all times. Never lay your air compressor on its side while moving, storing, or using it. Oil could leak and damage your air compressor’s engine and surrounding areas. Between-Use Storage Allow to cool: Your air compressor can get very hot when in use.

  • Page 36: Draining The Tank

    Carefully select storage area: While in storage, your air compressor needs to be free of dust and not exposed to high-humidity conditions. Select a clean and dry area that is away from sources of heat, open flames, sparks, or pilot lights, even if gas tank is empty. Residual gasoline could ignite. Select area that is away from extreme high and low temperatures.

  • Page 37: Troubleshooting

    Troubleshooting Problem Cause Solution Engine will not start Fuel tank is empty. Refill gasoline to proper level. Fuel shut-off valve is in Move fuel shut-off valve OFF/closed position. lever to ON/Open position. Choke is in the OFF Place the choke in the position.
  • Page 38 Engine lacks power Air filter clogged Clean or replace filter Throttle control is in the Move throttle control to slow position fast position. Fuel filter clogged, Take engine to an carburetor malfunction, authorized servicing ignition malfunction, dealer and/or contact valves struck, etc. customer service for instructions.
  • Page 39 Compressor does not Compressor pump oil Drain existing lubricant come up to speed or is viscosity is too high for and refill with proper slow to come up to ambient temperature lubricant. speed. Belt tension too tight or Check tension/alignment. sheaves not aligned.
  • Page 40 Oil in discharge air Lubricant level too high. Drain excess lubricant. Safety/relief valve Clogged or dirty inlet Clean or replace. “pops”. and/or discharge line Defective safety/relief Replace. valve Unloader leaks or does Realign stem or replace. not work Low interstage High pressure inlet valve Inspect, clean, or repair pressure...

  • Page 41: Air Compressor Specifications

    Air compressor specifications: Model TAC81M Type Gas Powered Portable Air Compressor Maximum Pressure 120 PSI Rating Volume Rating @ 14.2 cfm 90 PSI Receiver Capacity 8 Gallon Length 43 inches / 109 cm Width 26 inches/ 66 cm Height 32 inches / 81 cm Weight 180 lbs.

  • Page 42: Engine Assembly And Parts List

    Engine assembly and parts list: (Please refer to the engine manual for the parts list and assembly diagram.) Contact information for Technical and Customer Assistance Locate an Authorized Service Dealer AXEMEN Power, Inc For assistance in finding an Authorized Service Dealer, contact Customer Service at 1-888-929-3468 or Support@Axemenpower.com.
  • Page 43 Date you initially purchased your air compressor Your name, address, and phone number A detailed summary of the issue...

  • Page 44: Limited Warranty

    Limited Warranty AXEMEN Power air compressors are manufactured and distributed by AXEMEN Power, Inc. AXEMEN Power, Inc. shall warranty any piece of equipment manufactured, or parts of equipment manufactured, to be free from defects in material or workmanship for a period of 2 year from the date of purchase by user.
  • Page 45 Please fill in the following information and have it on hand when you call in a warranty claim. Customer Number: ______________________________________________________________ Date of Purchase: _______________________________________________________________ Serial Number: _________________________________________________________ Model Number: __________________________________________________________________...

  • Page 46: Appendix A: Lubricants And Compatibility

    Appendix A: Lubricants and Compatibility The table to the right lists materials that are suitable or not recommended for use with synthetic oil. As some oil escapes into the compressed air, all components that come into contact with the air (i.e., piping, filters, hoses, tools, etc.) AXEMEN Power must be compatible with synthetic oil.
