Summary of Contents for AZUNO ATG200A01

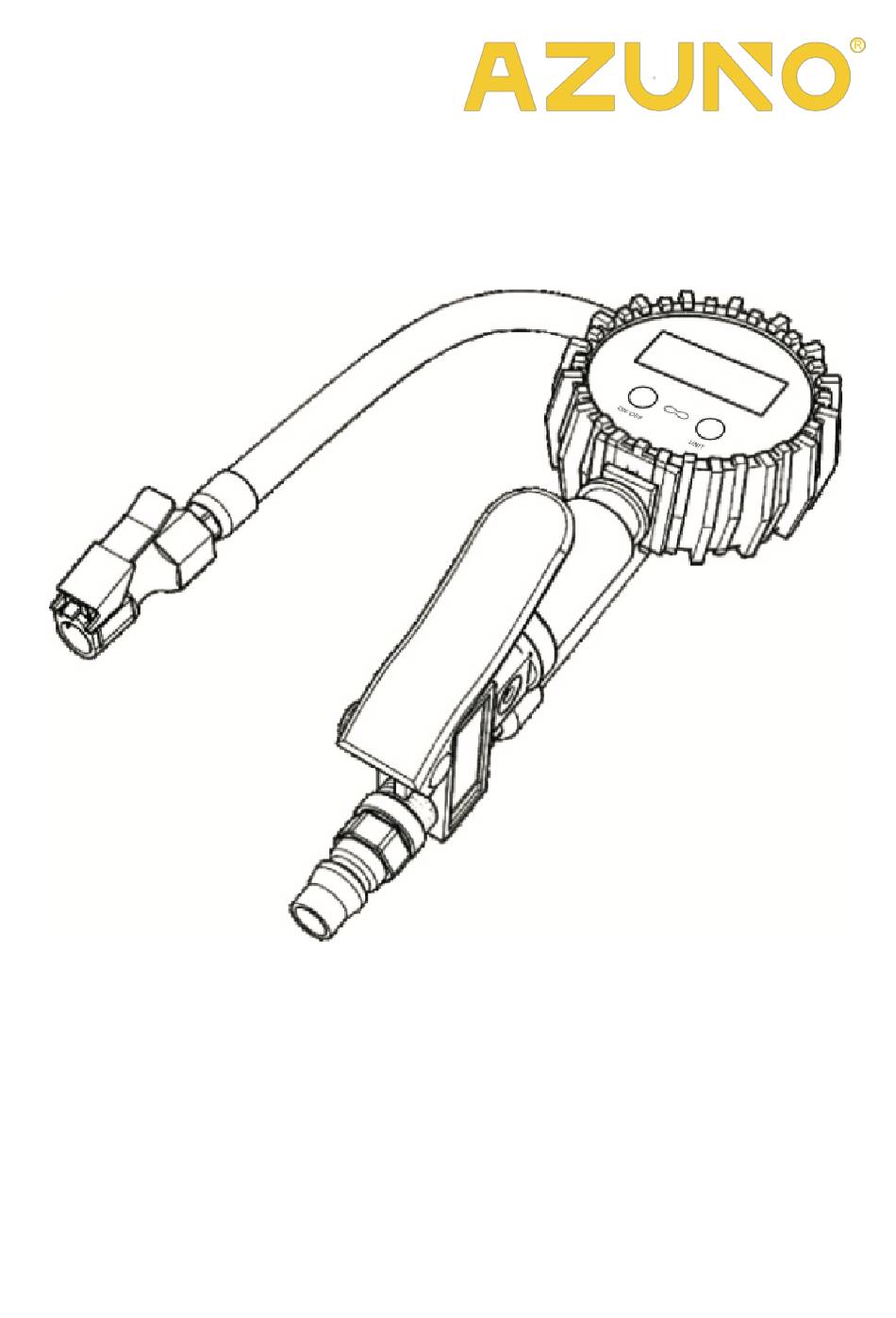

- Page 1 ATG200A01 ATG200B01...
- Page 2 English English (Original Instructions) ...
- Page 3 English...

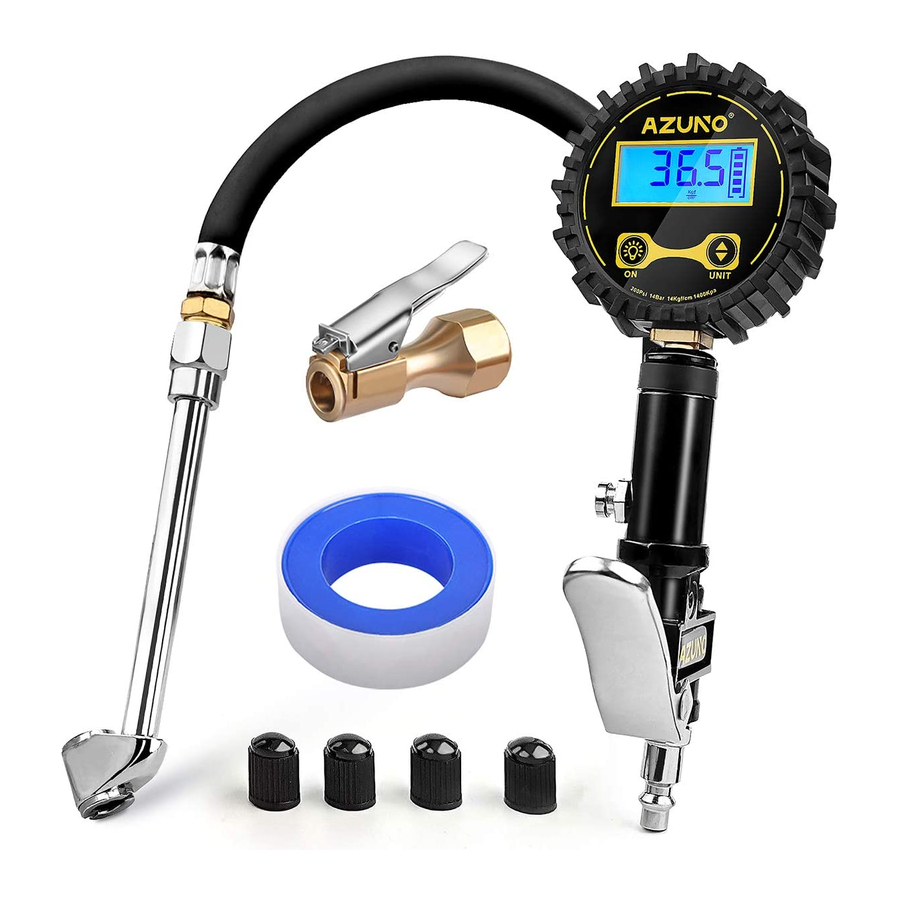

- Page 4 English DIGITAL TIRE PRESSURE GAUGE & INFLATOR (ATG200A01, ATG200B01) Congratulations! You have chosen AZUNO tool. Years of experience, thorough product development and innovation make AZUNO one of the most reliable partners for professional tool users. Technical Data & Package Contents ATG200A01 ATG200B01 Technical Data Inflation Range 200 PSI 1400 KPA 14 Bar 14 Kgf/cm2 Measurement Units Kgf/cm2 Accuracy ±1% Display Resolution 0.1 PSI Display Type Backlit LCD Auto Power-Off 150 Sec Operating Temperature -4 °F ~ 122 °F Auto Wake-up when Sense Pressure Compatibility NPT Air Compressor Connector Lighting Source LED Bulb Power Source 2 x LR03 AAA 1.5V Batteries ATG200A01 ATG200B01 Package Contents AZUNO Digital Tire Inflator Gauge User Manual Brass Air Chuck (Instaled) 40'' Hose with AirTight-Twin-Valve (Presta & Schrader)
- Page 5 English Quick Start Guide 1. Press any button to wakeup the gauge. If LCD does not light up, check battery pre-installed on the back. (Gauge will wakeup automatically when sense pressure from tire or compressor.) 2. Testing LED lighting by holding left button for 3 sec, hold another 3 sec to turn it off. 3. Press button to switch between 4 units, Psi, Bar, Kgf/cm2, Kpa. 4. Select M-Type or Q-Type air fitting according to your air compressor. M-type is also known as “US Standard Fitting”, which is most commonly found in US, Q-Type is also known as “Japanese Standard Fitting”. 5. Use Thread Seal Tape Roll properly seal air fitting before install on the gauge. Ignore this step when connect gauge directly to 1/4 NPT compressor hose. CAUTION: Do NOT over-tighten air fitting, could result in product damage. 6. Connect the gauge to air compressor from air fitting end, and clamp Brass Air Chuck to tire valve. Push Thumb Trigger to add air, push Air Bleeder to lose air. CAUTION: Accurate measurement should read while Thumb Trigger and Air Bleeder in default position. Do NOT read during inflation or deflation. 7. (ATG200A01) Switch pre-installed Brass Air Chuck to “AirTight-Twin-Valve” if inflating Presta/Schrader valve bike tire. After push “Twin Valve” till end of Presta/Schrader valve on the tire, push lever to left end for Presta and right end for Schrader valve.
- Page 6 English CAUTION: Fail push Schrader/Presta valve all the way through may cause leaking. CAUTION: Fail properly lock valve may result in losing hose during inflation, it could cause potential dangerous situation. 8. The gauge will turn off automatically when sense no pressure from either end for 150 seconds. Manual turn off by pressing button.
- Page 7 English Cleaning WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around. Wear approved eye protection and approved dust mask when performing this procedure. WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. Optional Accessories WARNING: Since accessories, other than those offered by AZUNO, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only AZUNO recommended accessories should be used with this product. Consult AZUNO for further information on the appropriate accessories. Protecting the Environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your AZUNO product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
