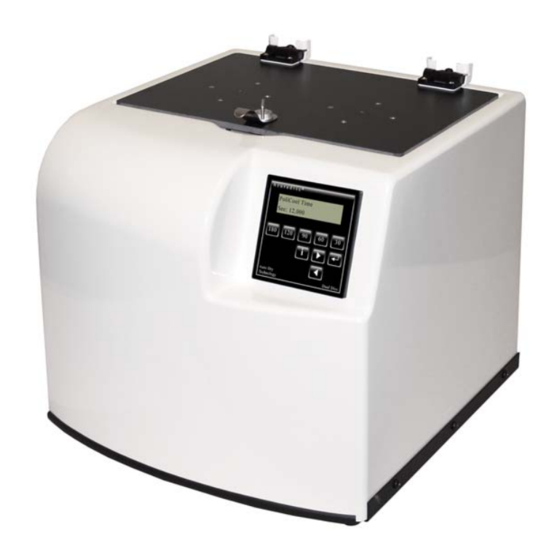

- Page 1 OPERATION & TROUBLESHOOTING Dual Disc II • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Ver 4.0 07-08-2010 ©...
-
Page 2: Safety
All rights reserved. Printed in the U.S.A. This manual may not be copied, in whole or in part, without written consent of Azuradisc. Use of the Azuradisc logo without the prior written consent of Azuradisc may constitute trademark infringement and unfair competition in violation of federal and state laws. -
Page 3: Table Of Contents
Top Side Foil Dents ............20 AZURADISC ONE-YEAR/100,000 DISC LIMITED WARRANTY ......21 WARRANTY COVERAGE . -
Page 4: Out Of The Box
OUT OF THE BOX After unpacking the Dual Disc 2, verify the following items, in the quantities shown, are included. Contact Azuradisc, or the local representative if any items are missing. Place the machine on sturdy surface Ensure there are no obstructions of air circulation around the bottom and rear of the machine. Ensure that unused cartridges are not stored directly behind the Dual Disc. -
Page 5: Important Information
(run time) of each individual cartridge. Azuradisc disc repair machines that use PoliCool technology are outfitted with a smart chip reader that reads and transfers the "run time" information from the cartridge to the disc repair machine. -
Page 6: Set Up
SET UP - SUPPLIES - CARTRIDGE & PAD PLACEMENT To be performed initially and each time you replace the consumables. IMPORTANT! Always change the abrasive pad when starting a new cartridge. Turn PoliCool upside down..Shake vigorously With machine turned off, and lid closed, making sure all sediment is mixed. -
Page 7: Basic Operation
BASIC OPERATION Place a CD or DVD on Place a CD or DVD on Close the lid, press and turn latch the left spindle the right spindle clockwise until it moves passed resistence. Correct Incorrect (Figure 2.1) (Figure 2.2) For the lid to be closed the top latch has to be in For the lid to be sealed the edge the configuration shown in Figure 2.1 must be flush with the interior bevel... -
Page 8: Select To Start
After pressing selected amount the screen will show time remaining ABOUT THE REPAIR / POLISHING PROCESS - The Dual Disc II uses a single polishing pad & PoliCool to remove scratches. Choose the desired level of repair using the indicator buttons. This will vary the total amount of time used in the repair /polishing process. -
Page 9: Troubleshooting
TROUBLESHOOTING No power • Verify the power cord is properly inserted in a working outlet; test the outlet with another device. • Check the fuse (by the power connector) on the machine. 110 -230V machines: 15A (1 spare fuse can be found in the AC outlet) •... -
Page 10: Info Menu
INFO MENU Forward Scroll Button Press “i” from the main screen to get to Info Enter Info>:NextScreen main info shown at Button Button f:Smart Tag Test right. Press “i” at any time to return to the main screen Reverse Scroll Button •... - Page 11 INFO MENU Forward Scroll Button Press “i” from the Info>:NextScreen main screen to get to f:Smart Tag Test Info Enter main info shown at Button Button right. Press “i” at any time to return to the main screen Reverse Scroll Button •...
- Page 12 INFO MENU Forward Scroll Button Press “i” from the Info>:NextScreen main screen to get to f:Smart Tag Test Info Enter main info shown at Button Button right. Press “i” at any time to return to the main screen Reverse Scroll Button •...
- Page 13 INFO MENU Forward Scroll Button Press “i” from the Info>:NextScreen main screen to get to f:Smart Tag Test Info Enter main info shown at Button Button right. Press “i” at any time to return to the main screen Reverse Scroll Button •...
- Page 14 INFO MENU Forward Scroll Button Press “i” from the Info>:NextScreen main screen to get to f:Smart Tag Test Info Enter main info shown at Button Button right. Press “i” at any time to return to the main screen Reverse Scroll Button •...
- Page 15 Step 1: To start testing, press the enter button. (Figure 3.1 ) This will Info>:NextScreen Test Reset: 00.00 f:Smart Tag Test take you to the testing screen. To Sec Loaded: return to the main screen press the “i” button. ( Figure 3.2 ) When you are at the testing screen you will see a time value.
-
Page 16: Maintenance
MAINTENANCE CHANGE PUMP TUBE Step 1: Step 2: Step 3: Turn pump assembly Remove and replace hose. Align pins and turn pump clockwise to replace outer counter clockwise to remove outer cover. cover. LUBE SQUEAKY HINGES Step 1: Step 2: Step 3: Clean, lubricate or Adjust Open lid approximately 45... - Page 17 MAINTENANCE LUBE QUICK LOAD SLIDERS VERSION 1 Step 1: Step 2: Step 3: Note: Spray Silicone Lubricant on Reinstall the handle mechanism. Remove only one the slide mechanism. side at a time. Remove the 3 screws that attach the handle to the lid. REPLACE BEARINGS IN QUICK LOAD SPINNERS VERSION 1 Step 2: Step 3:...
-
Page 18: Education
EDUCATION HOW DISCS ARE MADE CDs consist of 99% clear polycarbonate plastic. The reflective layer, protective layer and screen print comprise the remaining 1% of the disc. 1. A disc is created from molten polycarbonate and digital information is stamped on the top of the disc, while it is still near melting point, using a die with microscopic bumps. -
Page 19: Double Layered Dvds
If the scratch has a double Image, as shown in the figure to the right, it is a reading side scratch and can be repaired by using an Azuradisc scratch repair machine. The double image is the result of the actual scratch and a reflection made by the reflec- tive foil layer. -
Page 20: Top Side Scratches
This dent will cause skips and cannot be repaired, however they can be prevented using an Azuradisc Scratch Guard. The easiest way to identify the top side foil dent is to see if there is a “double image” pro- duced. -
Page 21: Azuradisc One-Year/100,000 Disc Limited Warranty
If a defect is discovered and a valid claim received by Azuradisc within the Warranty Period, at its option, Azuradisc will (1) repair the Warranted Product using new or refurbished replacement parts, (2) exchange the Warranted Product with one that is new or that has been manufactured from new or serviceable used parts and is at least functionally equivalent to the Warranted Product, or (3) refund the purchase price of the Warranted Product. - Page 22 A z u r a d i s c 7307 South 89th Place Mesa, Arizona 85212 Phone (480) 827-8786 Fax (480) 827-1104 Ver 4.0 07-08-2010...
