- Page 1 INJECTION EXPLORER STARDEX™ 0501...
-
Page 2: Security Information
1. Security information Read the instructions carefully before using Stardex 0501 (the device). The device must be connected only to AC 220V with cable from the delivery kit. Getting of electrical charges on the equipment is strictly prohibited! Getting liquids inside the device is strictly prohibited! Device body is constructed to protect its components from mechanical impact while operating. -
Page 3: General Description

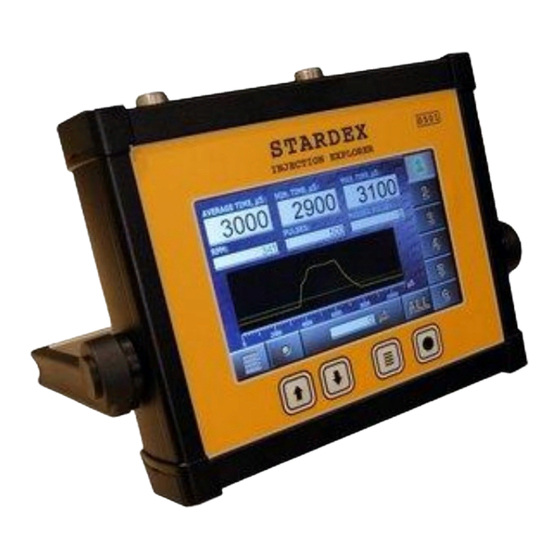

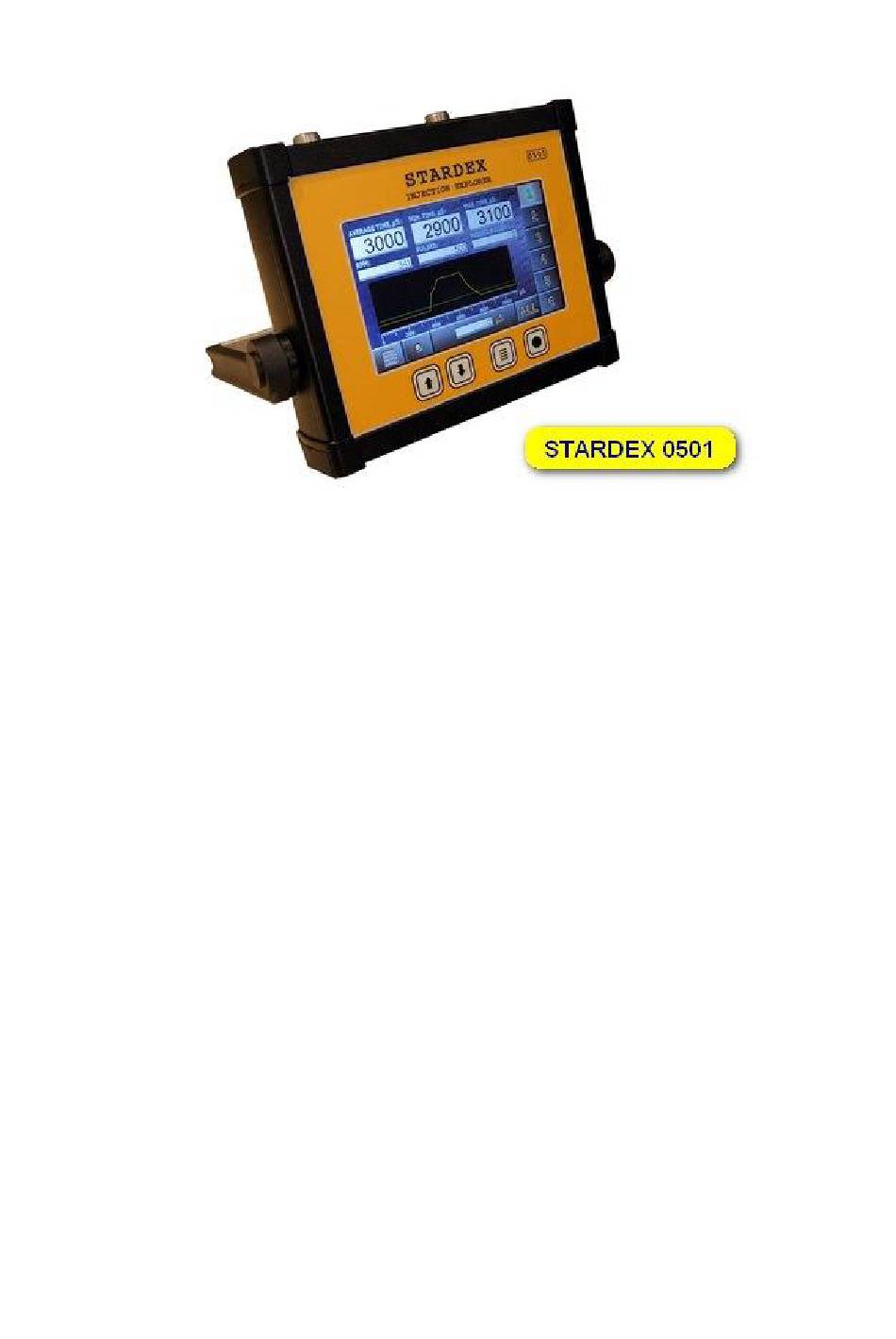

3. General Description STARDEX 0501 is a highly professional universal device for the relative exploration of the injection characteristics in Common Rail diesel systems and UIS. The device allows making high precise measurements and registers the delay time of injection (the difference in time... - Page 4 5. Interface description and control buttons Main window Average delay Minimal delay Maximal delay Accomplished time time time injection counter Missed injection counter Interactive buttons of injectors Injection selection diagram Interactive button “Menu” Interactive button “Reset” Navigation Delay time on “Menu”...
- Page 5 Missed injection counter – the number of signals to the injector after which the injection from the nozzle was not registered. Injection diagram – graphic representation of the injection process registered by injection sensor. The graph is updated when you click on the Reset button or touch the graph image area on the screen.
-
Page 6: Menu Window
Menu window Pulses count button Number of Sensitivity settings measurements button Markers of keyboard control Exit button Navigation Enter Exit button buttons button Pulses count button – pulses counter changes the number of measurements values (500, 1000, 2000) Number of measurements – the number of accomplished injections after which delay time counting will be finished. - Page 7 Sensitivity settings window Sensitivity threshold Increase sensitivity threshold button Sensitivity settings gragh Decrease sensitivity threshold button Exit button Navigation Exit button buttons Sensitivity threshold – with the increase of sensitivity threshold the sensor receptivity to the small fuel supply decreases and vice versa. It is recommended to change the sensitivity threshold only in case of delay time measurements of very small or very large fuel delivery modes.
- Page 8 Decrease sensitivity threshold button – decreases the sensitivity threshold of injection sensor. Increase sensitivity threshold button – increases the sensitivity threshold of injection sensor. Navigation buttons – change the sensitivity threshold (more\less). Exit button – saves all changes made in the sensitivity settings window and exits to the menu window.
-
Page 9: Connection Pattern
Values diagrams of injection delay for each injector – graphic display of all delay time values for all tested injectors. Navigation buttons – changes the type of displaying values of injection delay AVG, MIN, MAX (average, minimal and maximal). Exit button – exits to the main menu. 6. -
Page 10: Delivery Kit
7. Delivery kit Stardex 0501 1 pc. Power unit 1 pc. Power cable 1 pc. Universal cable 1 pc. Universal cable adaptor # 1 1 pc. Universal cable adaptor # 2 1 pc. Universal cable adaptor # 3 1 pc. -
Page 11: Warranty And Technical Support
9. Package. The product is packed into bubble wrap and carton box. Manufactured by: STARDEX OY PULTTITIE 2 00880 HELSINKI FINLAND www.stardex.fi...
