Alliant Power AP63451 Replacement Instructions

AP63451/AP63445
SUBJECT: Engine Oil Cooler Replacement Instructions
1. Refer to the service manual for engine oil cooler assembly removal instructions.

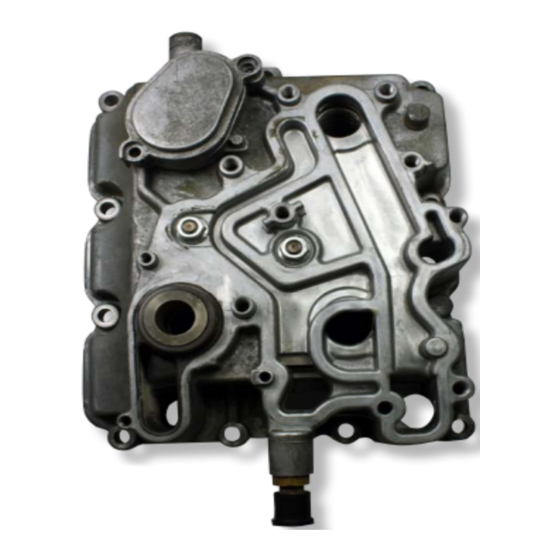

Figure 1

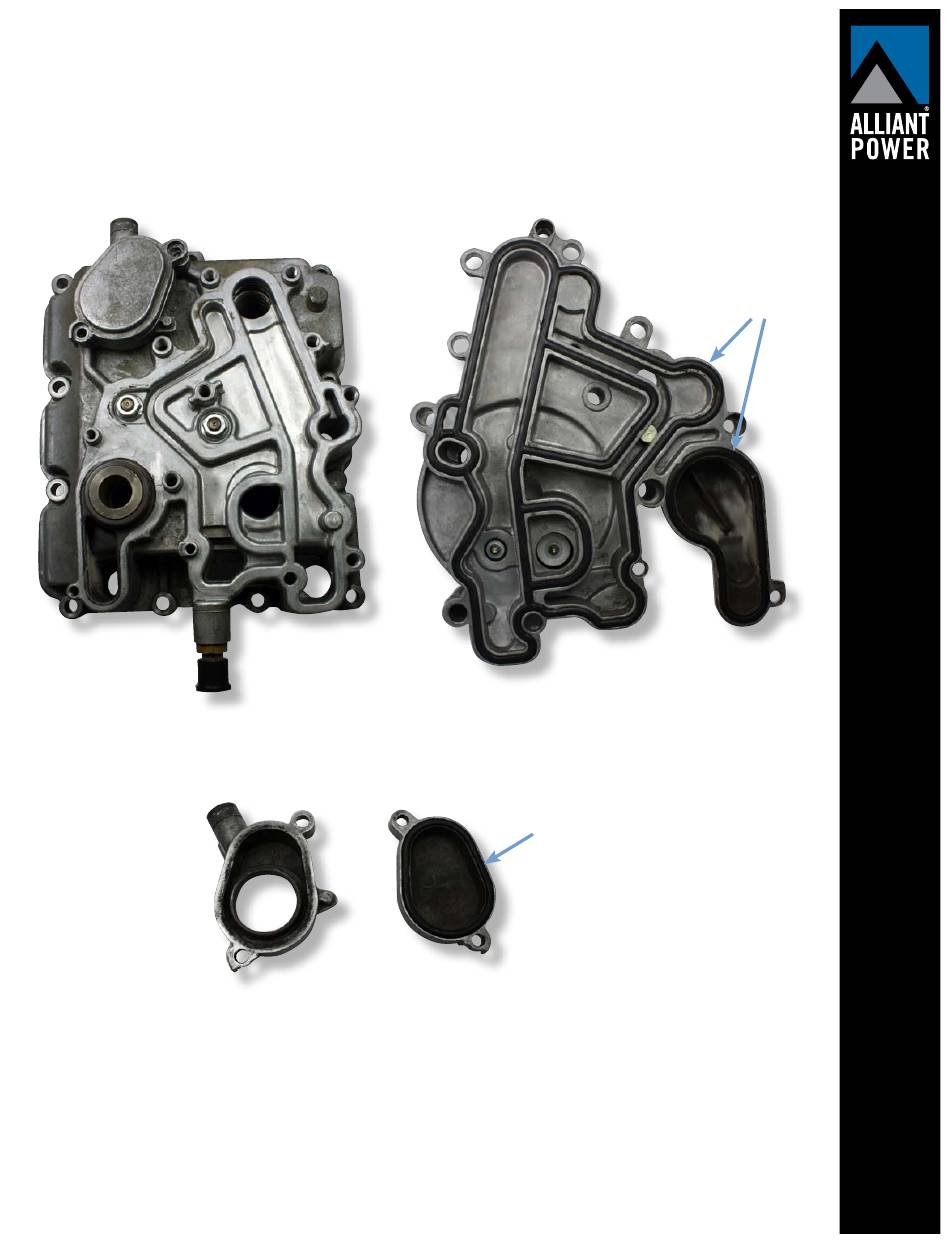

2. Remove the eight bolts and the oil filter mounting assembly from the oil cooler cover (Figure 1).
Remove the seals from the oil filter mounting assembly (Figure 2).
3. Remove the two bolts, EGR coolant supply cover, and EGR coolant supply port from the oil
cooler cover. Remove the seal from the EGR coolant supply cover (Figure 3).
