Rally Lamp Kit Cooper S Models
Thank you for purchasing the ALTA Performance Rally Lamp Kit. Installation of this kit should only be performed by persons
experienced in the installation and proper operation of MINI Cooper body and electrical systems. Please read through all installation
ADDITIONAL NOTE: USE OF THIS LAMP SYSTEM ON PUBLIC STREETS AND HIGHWAYS MAY BE ILLEGAL IN YOUR AREA. CHECK
SPECAIL NOTES:
Use of the factory service manual, can be very helpful during the installation. These can be purchased as the dealership, or online.
•
http://www.realoem.com
This installation will require cutting and drilling into both bumper beam and bumper skin. Test fit all components prior to cutting and
•
drilling. ALTA performance is not responsible for repairs from mis-installation.
The light bar is adjustable up and down, and left to right. Ensure the bar is mounted low enough to clear the bumper.
•
Parts Included with the ALTA Rally Light Bar:
(1) Set of Left and Right Mounting Struts
•
(1) Horizontal ALTA Mounting Bar
•
(4) 5/16-18x2.75" Grade 8 Hex bolts
•
(8) 5/16 Flat Washer
•
(4) 5/16 Lock Washer
•
(4) 5/16-18 Grade 8 Nut
•
(2) 7/16-20x.750" Black Oxided SS hex bolt
•
(6) 7/16 Washers
•
(2) IPF 968cs lamp kit (optional)
•
Checked By_________________
Preparation:
1)
Loosely mount lamps supplied with kit or those purchased separately to horizontal mounting beam with 'ALTA' logo facing forward
and readable from the front of the vehicle.
2)
Using lamp assembly as a guide, mark holes in bumper skin where "L" brackets come through. NOTE: Check clearance from all
facets of lamps, beam etc. prior to final determination of holes! Light bar should be mounted as low as possible to ensure light
do not hit upper portion of bumper. These holes will need to be approx. 3/4" in diameter and exactly 16.5" apart from centerline of
each hole. Take time with aligning light bar assembly to bumper beam, this will pay off for final installation.

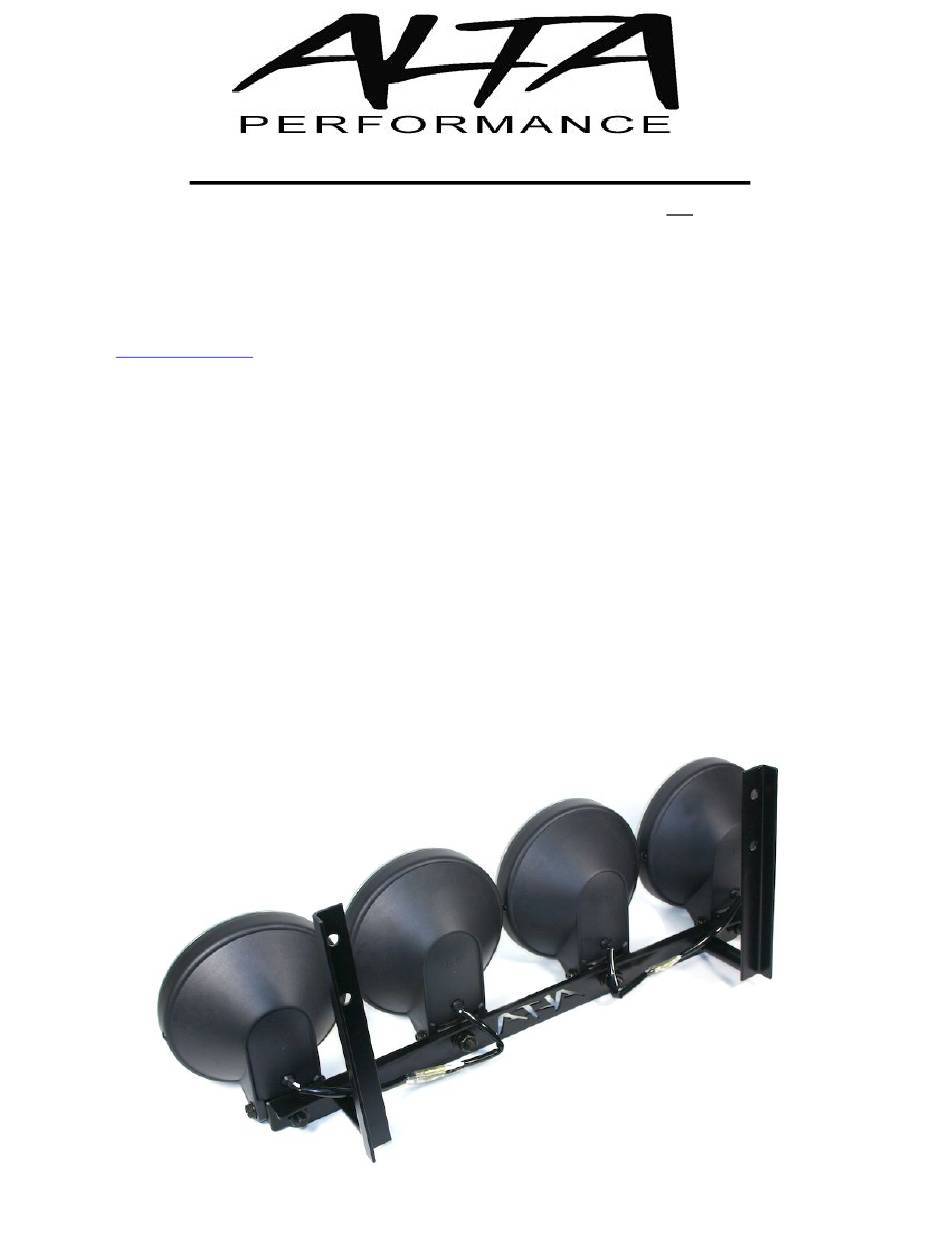

Diagram shows completely assembled ALTA light bar from behind
instructions before performing installation.
LOCAL LAWS PRIOR TO INSTALLATION AND USE IN ANY SITUATION.
has diagrams for the entire car, which can also be helpful.
011707
Advertisement
Table of Contents
Summary of Contents for ALTA Performance Rally Lamp Kit
- Page 1 011707 Thank you for purchasing the ALTA Performance Rally Lamp Kit. Installation of this kit should only be performed by persons experienced in the installation and proper operation of MINI Cooper body and electrical systems. Please read through all installation instructions before performing installation.
- Page 2 Horizontal Mounting Beam, and Struts shown above Installation: Remove bumper cover. Locate lower pop-it connectors, screws at the top of bumper cover, and screws behind side markers. (See factory service manual for specific bumper skin removal instructions.) Remove beam and set beam back into bumper skin. (See factory service manual for specific bumper beam removal instructions.) Using holes made in bumper skin, place ‘L’...
- Page 3 Clearance of light with bumper is important to avoid damage to paint, if lights are mounted to high they will hit the bumper. To lower lights, simply drill new holes or oval out existing holes. PARTS TO GO WITH YOUR Rally Lamp Kit: • ALTA Shorty or Super Shorty Antenna •...
