PYTHON
Manual & Partsbook 2010
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PYTHON and is the answer not in the manual?

Questions and answers

Summary of Contents for agrifac PYTHON

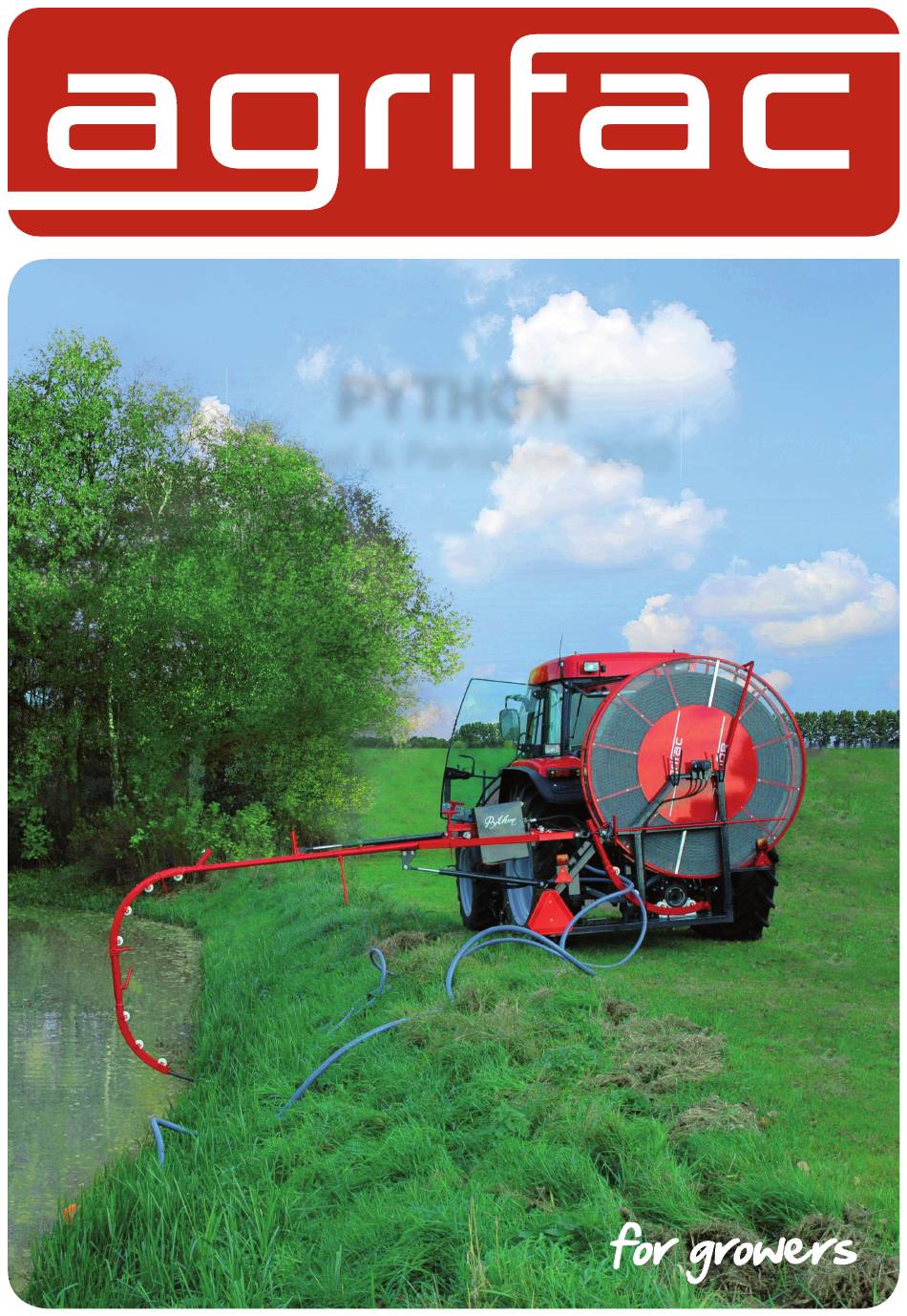

  • Page 1 PYTHON Manual & Partsbook 2010...
  • Page 3 PYTHON DRAIN CLEANER 2010-en Revision 0 April 22, 2010 Postal address Agrifac Machinery b.v., P.O. box 78, 8330 AB Steenwijk, the Netherlands Visitor address Agrifac Machinery b.v., Eesveenseweg 15, 8332 JA Steenwijk, the Netherlands Telephone +31 (0)521-527210 +31 (0)521-517328 Email info@agrifac.com...
  • Page 5 (directive 2006/42/EC, Annex IIA) AGRIFAC MACHINERY B.V. P.O. Box 78, 8330 AB Steenwijk, the Netherlands, declare entirely under own responsibility that the product: DRAIN CLEANER, type “PYTHON” complies with the directive 2006/42/EC on machinery. Steenwijk, April 2010. D. Blaauw Technical director Agrifac Machinery B.V.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS Chapter Page 1. Description ............... 1 2. Operation ................. 5 3. Safety instructions ............7 4. Frost protection ..............9 5. Maintenance ..............11 6. Failures ................13 7. Technical specifications ..........15 8. Options ................17 9.

  • Page 9: Description

    Drain cleaner 1. Description The drain cleaner consists of the following parts: • Frame • Reel • Side arm with hose drive • Guide arm • Hydraulic system • Water plumbing Frame A strong frame that can be attached to the three-point linkage of the tractor and that has place for: - reel - pump...
  • Page 10 Drain cleaner exchanged or the hydraulic lever in the tractor must be put in the other position. The hydraulic motors on the reel and the side arm are connected in such a way, that the hose will stay tight on the reel during both coiling and uncoiling. The coiling and uncoiling speed can be adjusted with the speed control valve next to the valve block.
  • Page 11 Drain cleaner Hose The hose is a PE polyethylene hose with an outer diameter of 27 mm and a thickness of 3,3 mm. This hose is flexible and strong. A bigger diameter has too much friction in the pipe. Because this pipe has a specific gravity lower than 1 it can float on the water. This hose is delivered in a standard size of 315 m.
  • Page 12 Drain cleaner...

  • Page 13: Operation

    Drain cleaner 2. Operation • Please pay attention that the drive shaft is not too long when you connect the drain cleaner to the tractor. Lift the drain cleaner high enough that the shaft is in a horizontal position. • Put pressure on the hydraulic system when you are in the field.
  • Page 14 Drain cleaner • Engage the drive shaft with about 540 rev/min. Wait until the pump draws plenty of water and tighten the pressure regulator and adjust the pressure to a maximum of 35 bar. When a new machine is put into operation the polyethylene hose is still empty, it will need about 1 minute to fill up.

  • Page 15: Safety Instructions

    Drain cleaner 3. Safety instructions • The tractor and the machine are to be driven and operated only by qualified persons. • Starting and running of the tractor, either with or without the machine, in a closed room is prohibited. •...
  • Page 16 Drain cleaner...

  • Page 17: Frost Protection

    Drain cleaner 4. Frost protection If it is not possible to put the machine in a frost-free place, please follow the next instructions: Drain off the suction filter on the machine, by loosening the swivel ring and emptying the filter. Fasten the polyethylene hose and the nozzle on the reel.
  • Page 18 Drain cleaner...

  • Page 19: Maintenance

    Drain cleaner 5. Maintenance • Grease the lubricator nipple on the drive wheels and hinge points every week. • Oil the nylon rolls after use to prevent rusting of the shafts. • Oil the shaft of the metre counter every day to prevent rusting. •...
  • Page 20 Drain cleaner...

  • Page 21: Failures

    Drain cleaner 6. Failures Failure Cause Instructions • Clogged filter or suction hose • No suction from the Clean filter. • pump. and/or leaking couplings. Repair leaks. • Insufficient water supply to • Irregular pressure Make sure that the ditch on the gauge.
  • Page 22 Drain cleaner...

  • Page 23: Technical Specifications

    Drain cleaner 7. Technical specifications Length: 75 cm Width: 240 cm Height: 235 cm Weight: 350 kg Lifting bolts Category 2 Hydro motors: 2x 157 cc Oil capacity: 20 l/min Water pump: 4 cylinders/diaphragm Oil specification: 20W30 / 2,9 l Max.
  • Page 24 Drain cleaner...

  • Page 25: Options

    Drain cleaner 8. Options Shaft systems For cleaning of drains that discharge into shafts, additional attachments are available. There are 2 models: • Shaft system for 30 cm No. 9821007.0 • Shaft system for 40 to 60 cm No. 9821008.0 With this system the hose can be bend sharply to be inserted in the drain.
  • Page 26 Drain cleaner Longer hoses • Polyethylene hose Ø27 x 3,3 mm L=315 metre No. 8200321 • Polyethylene hose Ø27 x 3,3 mm L=350 metre No. 8200325 • Polyethylene hose Ø27 x 3,3 mm L=400 metre No. 8200340 • Polyethylene hose Ø27 x 3,3 mm L=450 metre No.

  • Page 27: Spare Parts Lists

    Drain cleaner 9. Spare parts lists About spare parts Use genuine Agrifac spare parts. Other spare parts can have negative effects on the machine and cause unsafe situations. Agrifac cannot be held responsible for: • damage originated from the use of non-genuine parts;...

  • Page 28: Drain Cleaner

    Drain cleaner DRAIN CLEANER No. 9821001.0 Pos. Code Qty. Description 9821002.0 FRAME 9821003.0 SIDE ARM 9821004.0 GUIDE ARM 9821012.0 HYDRAULIC SYSTEM 9821013.0 WATER PLUMBING 7020168 CYLINDER D=25/40 STROKE=750 9820038.0 8200361 HOSE COUPLING FOR HOSE (Ø27x3.3) (for repairs on the hose) 9820211.0 CLAMPING BUSH FOR HOSE (Ø27x3.3) (for repairs on the hose)
  • Page 29 Drain cleaner...

  • Page 30: Frame

    Drain cleaner FRAME No. 9821002.0 Pos. Code Qty. Description 9820065.0 FRAME 9820158.0 REEL 9820172.0 NETTING SEGMENT 9820058.0 STRIP NETTING ATTACHMENT 9820028.0 HOOP GUARD 9820045.0 HOOK DRIVE SHAFT 9820048.0 PIN TOP LINK 9820044.0 PINS ON CHAIN 9820033.0 STRIP HINGE PROTECTION 2670400 RUBBER 100 x 50 x 5 5033040 BEARING HOUSE + BEARING PASEY 40...
  • Page 31 Drain cleaner...

  • Page 32: Side Arm

    Drain cleaner SIDE ARM No. 9821003.0 Pos. Code Qty. Description 9820109.0 SIDE ARM 9820134.0 CLAMPING SCREW GUIDE ARM 9820145.0 PRESSURE ROLL LEVER 9820026.0 BOLT 9820139.0 PIVOTING PART PRESSURE ROLL 9820015.0 PRESSURE ROLL Ø100 9820142.0 ADJUSTING BOLT PRESSURE ROLL 9820150.0 COMPRESSION SPRING PRESSURE ROLL 9820014.0 DRIVE WHEEL MOTOR SIDE Ø200 9820011.0...
  • Page 33 Drain cleaner...

  • Page 34: Guide Arch

    Drain cleaner GUIDE ARCH No. 9821004.0 Pos. Code Qty. Description 9820174.0 GUIDE ARCH 9820183.0 CLAMPING SCREW GUIDE ARCH 9820230.0 STRIP PE 50 x 5 L=1000 3250852 BLIND RIVET Ø5.0 x 14.0 8257550 GUIDE ROLLER BIG Ø75 3060638 BOLT M10 x 80 DIN 931 3142100 SELF-LOCKING NUT M10 DIN 985 7934265...
  • Page 35 Drain cleaner...

  • Page 36: Hydraulic System

    Drain cleaner HYDRAULIC SYSTEM No. 9821012.0 Pos. Code Qty. Description 7242667 CONTROL BLOCK TRIPLE 9820227.0 HYDR. PIPE Ø12 x 1 L=70 9820228.0 HYDR. PIPE Ø12 x 1 L=110 9820229.0 HYDR. PIPE Ø12 x 1 L=130 7321777 COUPLING AT RIGHT ANGLES WE 12 LR ½” 7390696 SPEED CONTROL VALVE DV-10-07-1.0-P 7320267...
  • Page 37 Drain cleaner...

  • Page 38: Water Plumbing

    Drain cleaner WATER PLUMBING No. 9821013.0 Pos. Code Qty. Description 8200455 PUMP COMET APS 145 7320110 PLUG DP 3/8” 4005135 KNEE AT RIGHT ANGLES ¾” BiBu 2212850 SUCTION HOSE PVC Ø40 x 54 L=1000 4550950 HOSE CLIP 38-50 SS 7315044 TULLE STRAIGHT 2”...
  • Page 39 Drain cleaner...

  • Page 40: Comet Aps 145

    Drain cleaner COMET APS 145 Pos. Code Qty. Code ARAG Description 0402 0143 VOLUM. COMPEN. COVER 1210 0373 O-RING Ø3,53x73,03 0421 0012 VOLUMATRIC COMPEN. 1210 0002 O-RING Ø2,62x20,7 1200 0052 WINGNUT 2” 2801 0057 ELBOW COUPLING Ø45 1210 0197 O-RING Ø2,62x39,34 2000 0096 NIPPLE 1¾”-2”...
  • Page 41 Drain cleaner 3604 0009 DELIVERY VALVE 3009 0014 DELIVERY VALVE SEAT 1210 0114 O-RING Ø3,53x36,1 1220 0034 DELIVERY VALVE COMPLETE 3609 0057 BOLT M12X65 2811 0025 WASHER Ø13 3218 0099 PUMP MANIFOLD 1210 0047 O-RING Ø2,62x22,22 1210 0145 O-RING Ø2,62x28,25 3202 0219 HOUSING 2416 0276...

  • Page 42: Comet Vrs Pressure Reducer

    Drain cleaner COMET VRS PRESSURE REDUCER No. 8200085 Pos. Code Qty. Code ARAG Description 2800 0004 ELBOW TAIL 1200 0005 WINGNUT 30MB 1210 0002 O-RING Ø2,62x20,7 2000 0012 NIPPLE M36X2 M30X2 1210 0033 O-RING Ø3,0x28 3009 0042 VALVE SEAT 0424 0072 VALVE BODY 0604 0050 NUT G ¾”...

  • Page 43: Suction Filter

    Drain cleaner SUCTION FILTER No. 7315469 Pos. Code Qty. Code ARAG Description 7315451 316070.010 FILTER HOUSING 7315480 316300.060 O-RING Ø101,3 x 2,6 7315442 316002.030 FILTER ELEMENT WHITE “32 MESH” 7315441 316000.050 O-RING Ø126,4 x 6,99 7315439 316000.020 COVER 7315440 316000.040...

  • Page 44: Suction Hose

    Drain cleaner SUCTION HOSE No. 9821005.0 Pos. Code Qty. Description 2212935 SUCTION HOSE PVC 1¼” L= 10000 4550935 HOSE CLIP 26-38 OS0035 SS 7315415 STRAINER 25/30mm SS 7914725 FLOAT 3290050 S-HOOK no.50 0910104 CHAINE 4mm L=2 links 7315094 TULLE AT RIGHT ANGLES 1¼” x 30 7315226 SWIVEL 1¼”...

  • Page 45: Option: Shaft Arch 30 Cm

    Drain cleaner OPTION: SHAFT ARCH 30 CM No. 9821007.0 Pos. Code Qty. Description 9820199.0 SHAFT ARCH 30 CM 9820196.0 EXTENSION 9820023.0 GUIDE ROLLER FOR SHAFT ARCH 30CM 8257550 GUIDE ROLLER Ø75 3060638 BOLT M10 x 80 DIN 931 3142100 SELF-LOCKING NUT M10 DIN 985 2212860 SUCTION HOSE PVC Ø50 x 65 L=350 4550965...

  • Page 46: Option: Shaft Arch 40 - 60 Cm

    Drain cleaner OPTION: SHAFT ARCH 40 - 60 CM No. 9821008.0 Pos. Code Qty. Description 9820190.0 SHAFT ARCH 40 - 60 CM 9820196.0 EXTENSION 9820195 STRIP PE 50 x 5 L=760 3250740 RIVET Ø5.0 x 20.0 8257550 GUIDE ROLLER Ø75 3060638 BOLT M10 x 80 DIN 931 3142100...

  • Page 47: Option: Telescope System

    Drain cleaner OPTION: TELESCOPE SYSTEM No. 9821006.0 Pos. Code Qty. Description 7020168 CYLINDER D=25/40 STROKE=750 9821024.0 PIN TELESCOPE CYLINDER 3280030 SPRING CLIP 3mm 8250581 HALF BRACKET 42mm 3027636 BOLT M12 x 40 DIN 933 3142120 SELF-LOCKING NUT M12 DIN 985 3027716 BOLT M16 x 55 DIN 933 3142160...

  • Page 48: Option: Electric-Hydraulic Remote Control

    Drain cleaner OPTION: ELECTRIC-HYDRAULIC REMOTE CONTROL No. 9821010.0 Pos. Code Qty. Description 7784550 JUNCTION BOX 256 7784600 JUNCTION BOX 318 7779390 SWITCH 6-POLE (mono) SWITCH 3-POLE (one fixed, one spring-mounted) 7714370 DIODE 7742670 CROWN STRIP 6qmm 12P 7740220 CORE END COVER 1 ½ 7774180 PLUG 7-POLE 1960042...
  • Page 49 Drain cleaner...

  • Page 50: Option: Independent Hydraulic Pack

    Drain cleaner OPTION: INDEPENDENT HYDRAULIC PACK No. 9821011.0 Pos. Code Qty. Description 7250620 PUMP PLP 20-20 D 082 E2 7210240 PUMP FLANGE AT RIGHT ANGLES 1GA12 7210244 PUMP FLANGE AT RIGHT ANGLES 2GA34 6540235 COUPLING BOX BF2 14T 6540620 GEARBOX ML32-2-1/3 9820235.0 HYDRAULIC TANK + SUPPORT 9820236.0...
  • Page 51 Drain cleaner...

  • Page 52: Option: Sidearm With 4 Driven Wheels

    Drain cleaner OPTION: SIDEARM WITH 4 DRIVEN WHEELS No. 9821014.0 Pos. Code Qty. Description 9820109.0 SIDEARM 9820134.0 CLAMPING SCREW GUIDE ARM 9820238.0 PRESSURE ROLL LEVER 9015028.0 BOLT 9820239.0 PIVOTING PART PRESSURE ROLL 9820241.0 ROLL 9820142.0 ADJUSTING BOLT PRESSURE ROLL 9820150.0 COMPRESSION SPRING PRESSURE ROLL 9820014.0 DRIVE WHEEL MOTORSIDE Ø200...
  • Page 53 Drain cleaner...

  • Page 54: Option: Nozzles (Survey)

    Drain cleaner OPTION: NOZZLES (SURVEY) 9820223.0 9820224 9820225.0 9820226.0 ø 60 ø 75 ø 100 ø 125 1+12 1+12 1+3 gaten / Löcher / holes / trous (040354) (040355) (040356) 8200420 8200421 8200423 15° 30° 30° (040357) 9820211.0 (040358) 8200361 (040353) 8200360 (040357)
  • Page 55 Drain cleaner...
