Millenium WS30 Assembly Instructions

Studio desk

Thomann GmbH · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de

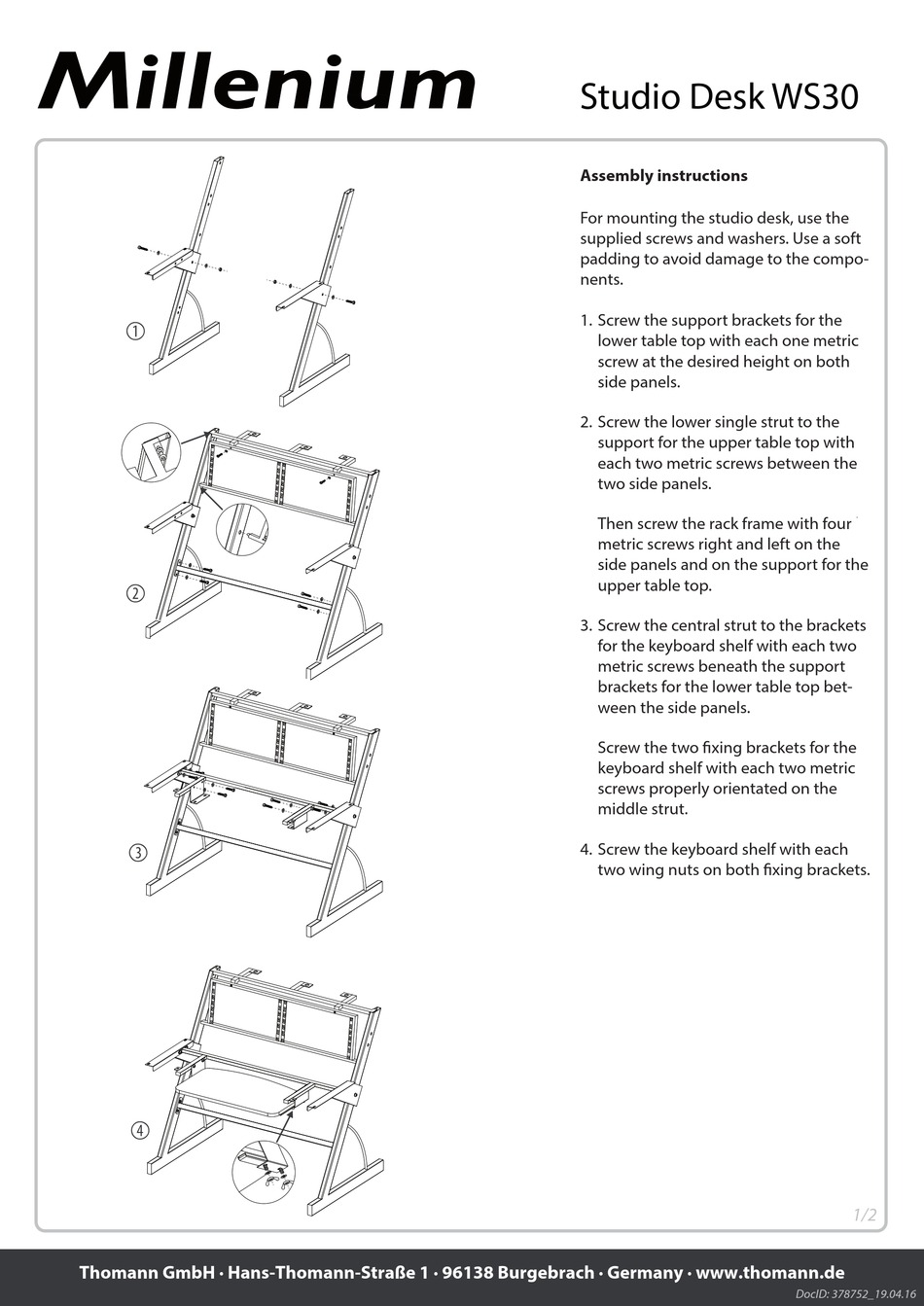

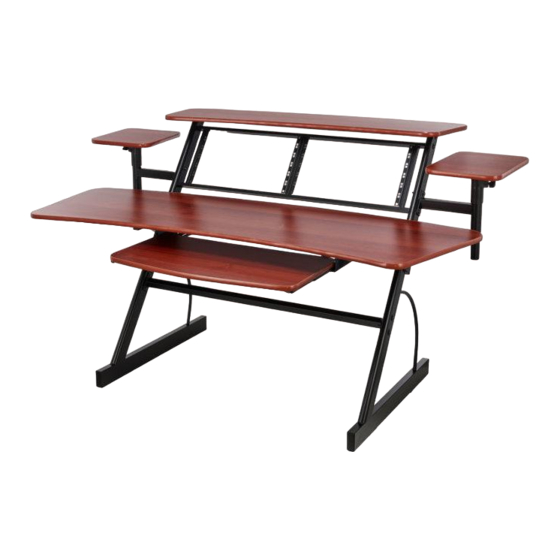

Studio Desk WS30

Assembly instructions

For mounting the studio desk, use the

supplied screws and washers. Use a soft

padding to avoid damage to the compo-

nents.

1. Screw the support brackets for the

lower table top with each one metric

screw at the desired height on both

side panels.

2. Screw the lower single strut to the

support for the upper table top with

each two metric screws between the

two side panels.

Then screw the rack frame with four

metric screws right and left on the

side panels and on the support for the

upper table top.

3. Screw the central strut to the brackets

for the keyboard shelf with each two

metric screws beneath the support

brackets for the lower table top bet-

ween the side panels.

Screw the two fixing brackets for the

keyboard shelf with each two metric

screws properly orientated on the

middle strut.

4. Screw the keyboard shelf with each

two wing nuts on both fixing brackets.

1/2
