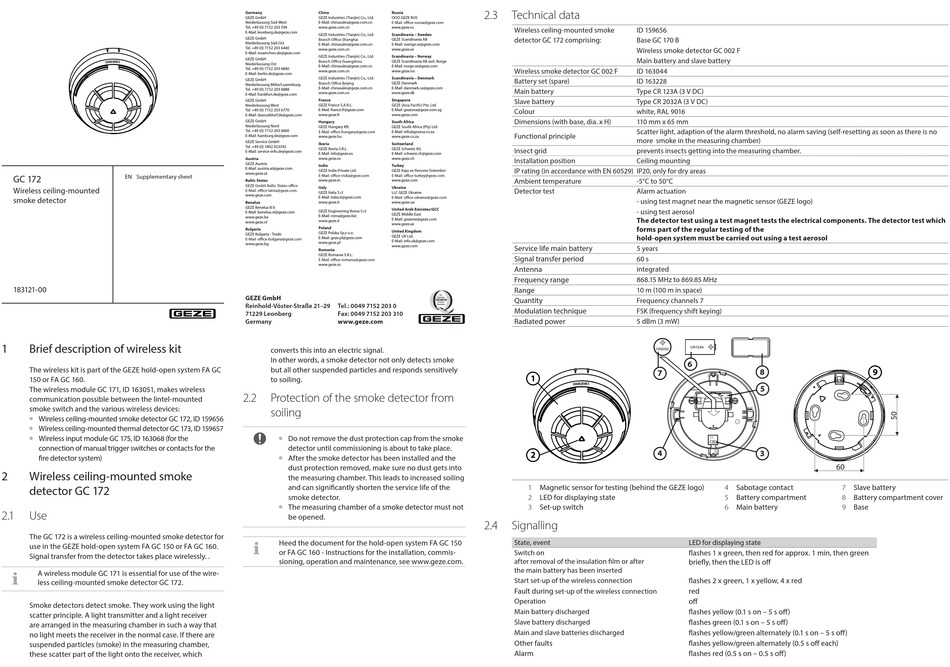

GEZE GC 172 Supplementary Sheet

EN Supplementary sheet
GC 172
Wireless ceiling-mounted
smoke detector
183121-00
1 Brief description of wireless kit
The wireless kit is part of the GEZE hold-open system FA GC
150 or FA GC 160.
The wireless module GC 171, ID 163051, makes wireless
communication possible between the lintel-mounted
smoke switch and the various wireless devices:
à Wireless ceiling-mounted smoke detector GC 172, ID 159656
à Wireless ceiling-mounted thermal detector GC 173, ID 159657
à Wireless input module GC 175, ID 163068 (for the
connection of manual trigger switches or contacts for the
fire detector system)
2 Wireless ceiling-mounted smoke
detector GC 172
2. 1 Use

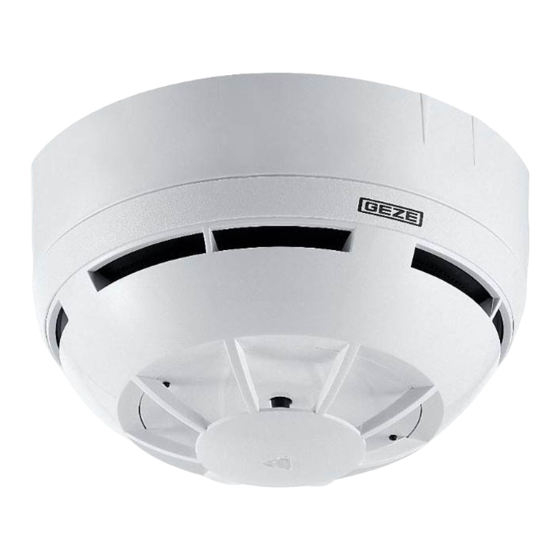

The GC 172 is a wireless ceiling-mounted smoke detector for
use in the GEZE hold-open system FA GC 150 or FA GC 160.
Signal transfer from the detector takes place wirelessly. .
A wireless module GC 171 is essential for use of the wire-
less ceiling-mounted smoke detector GC 172.
Smoke detectors detect smoke. They work using the light
scatter principle. A light transmitter and a light receiver
are arranged in the measuring chamber in such a way that
no light meets the receiver in the normal case. If there are
suspended particles (smoke) in the measuring chamber,
these scatter part of the light onto the receiver, which
Germany China Russia
GEZE GmbH GEZE Industries (Tianjin) Co., Ltd. OOO GEZE RUS
Niederlassung Süd-West E-Mail: chinasales@geze.com.cn
Tel. +49 (0) 7152 203 594 www.geze.com.cn www.geze.ru
E-Mail: leonberg.de@geze.com
GEZE Industries (Tianjin) Co., Ltd. Scandinavia – Sweden
GEZE GmbH
GEZE Scandinavia AB
Niederlassung Süd-Ost
E-Mail: chinasales@geze.com.cn E-Mail: sverige.se@geze.com
Tel. +49 (0) 7152 203 6440
www.geze.com.cn www.geze.se
E-Mail: muenchen.de@geze.com
GEZE Industries (Tianjin) Co., Ltd. Scandinavia – Norway
GEZE GmbH
GEZE Scandinavia AB avd. Norge
Niederlassung Ost
E-Mail: chinasales@geze.com.cn E-Mail: norge.se@geze.com
Tel. +49 (0) 7152 203 6840
www.geze.com.cn www.geze.no
E-Mail: berlin.de@geze.com
GEZE Industries (Tianjin) Co., Ltd. Scandinavia – Denmark
GEZE GmbH
GEZE Danmark
Niederlassung Mitte/Luxemburg
E-Mail: chinasales@geze.com.cn E-Mail: danmark.se@geze.com
Tel. +49 (0) 7152 203 6888
www.geze.com.cn www.geze.dk
E-Mail: frankfurt.de@geze.com
GEZE GmbH France Singapore
Niederlassung West GEZE France S.A.R.L.
Tel. +49 (0) 7152 203 6770 E-Mail: france.fr@geze.com E-Mail: gezesea@geze.com.sg
E-Mail: duesseldorf.de@geze.com www.geze.fr www.geze.com
GEZE GmbH
Hungary South Africa
Niederlassung Nord
GEZE Hungary Kft. GEZE South Africa (Pty) Ltd.
Tel. +49 (0) 7152 203 6600
E-Mail: info@gezesa.co.za
E-Mail: hamburg.de@geze.com
www.geze.hu www.geze.co.za
GEZE Service GmbH
Iberia Switzerland
Tel. +49 (0) 1802 923392
GEZE Iberia S.R.L. GEZE Schweiz AG
E-Mail: service-info.de@geze.com
E-Mail: info@geze.es E-Mail: schweiz.ch@geze.com
www.geze.es www.geze.ch
Austria
GEZE Austria
India Turkey
E-Mail: austria.at@geze.com
GEZE India Private Ltd. GEZE Kapı ve Pencere Sistemleri
www.geze.at
www.geze.in www.geze.com
Baltic States
Italy Ukraine
GEZE Italia S.r.l LLC GEZE Ukraine
www.geze.com
E-Mail: italia.it@geze.com
Benelux www.geze.it www.geze.ua
GEZE Benelux B.V.
United Arab Emirates/GCC
GEZE Engineering Roma S.r.l
E-Mail: benelux.nl@geze.com
GEZE Middle East
E-Mail: roma@geze.biz
www.geze.be
E-Mail: gezeme@geze.com
www.geze.it
www.geze.nl
www.geze.ae
Poland
Bulgaria
United Kingdom
GEZE Polska Sp.z o.o.
GEZE Bulgaria - Trade
GEZE UK Ltd.
E-Mail: geze.pl@geze.com
E-Mail: info.uk@geze.com
www.geze.pl
www.geze.bg
www.geze.com
Romania
GEZE Romania S.R.L.
www.geze.ro
GEZE GmbH
Reinhold-Vöster-Straße 21–29 Tel.: 0049 7152 203 0
71229 Leonberg Fax: 0049 7152 203 310
Germany www.geze.com
converts this into an electric signal.
In other words, a smoke detector not only detects smoke
but all other suspended particles and responds sensitively
to soiling.
2.2 Protection of the smoke detector from
soiling
à Do not remove the dust protection cap from the smoke
detector until commissioning is about to take place.
à After the smoke detector has been installed and the
dust protection removed, make sure no dust gets into
the measuring chamber. This leads to increased soiling
and can significantly shorten the service life of the
smoke detector.
à The measuring chamber of a smoke detector must not
be opened.
Heed the document for the hold-open system FA GC 150
or FA GC 160 - Instructions for the installation, commis-
sioning, operation and maintenance, see www.geze.com.
2.3 Technical data
Wireless ceiling-mounted smoke ID 159656
detector GC 172 comprising: Base GC 170 B
Wireless smoke detector GC 002 F
Main battery and slave battery
Wireless smoke detector GC 002 F ID 163044
Battery set (spare) ID 163228
Main battery Type CR 123A (3 V DC)
Slave battery Type CR 2032A (3 V DC)
Colour white, RAL 9016
Dimensions (with base, dia. x H) 110 mm x 65 mm
Scatter light, adaption of the alarm threshold, no alarm saving (self-resetting as soon as there is no
Functional principle
more smoke in the measuring chamber)
Insect grid prevents insects getting into the measuring chamber.
Installation position Ceiling mounting
IP rating (in accordance with EN 60529) IP20, only for dry areas
Ambient temperature -5°C to 50°C
Detector test Alarm actuation
- using test magnet near the magnetic sensor (GEZE logo)
- using test aerosol
The detector test using a test magnet tests the electrical components. The detector test which
forms part of the regular testing of the
hold-open system must be carried out using a test aerosol
Service life main battery 5 years
Signal transfer period 60 s
Antenna integrated
Frequency range 868.15 MHz to 869.85 MHz
Range 10 m (100 m in space)
Quantity Frequency channels 7
Modulation technique
FSK (frequency shift keying)
Radiated power 5 dBm (3 mW)
CR2032
7
1
2 4
1 Magnetic sensor for testing (behind the GEZE logo)
2 LED for displaying state
3 Set-up switch
2.4 Signalling
State, event
Switch on
after removal of the insulation film or after
the main battery has been inserted
Start set-up of the wireless connection
Fault during set-up of the wireless connection
Operation
Main battery discharged
Slave battery discharged
Main and slave batteries discharged
Other faults
Alarm
CR123A
6
8
5
3
60
4 Sabotage contact 7 Slave battery
5 Battery compartment 8 Battery compartment cover
6 Main battery 9 Base
LED for displaying state
flashes 1 x green, then red for approx. 1 min, then green
briefly, then the LED is off
flashes 2 x green, 1 x yellow, 4 x red
red
off
flashes yellow (0.1 s on – 5 s off)
flashes green (0.1 s on – 5 s off)
flashes yellow/green alternately (0.1 s on – 5 s off)
flashes yellow/green alternately (0.5 s off each)
flashes red (0.5 s on – 0.5 s off)
9
