Gianni CP-31 Series Instructions

CP-31 Call Points Series Instructions

Specifications

Dimensions: 87x93x55 mm (with clear plastic cover)
Contact resistance: 100mΩ
Contact Rating: Up to 5A 125/250 VAC
Plastic case: Green / Red / White / Yellow / Blue
Part Number:
CP-31X-UC
Green G/Red R/White W
Yellow Y/Blue BL
(Optional)
Model: CP-21-GL
(Break Glass)
Specifications
Dimensions: 87x93x55 mm (with clear plastic cover)
Contact resistance: 100mΩ
Contact Rating: Up to 5A 125/250 VAC
Plastic case: Green / Red / White / Yellow / Blue
Part Number:
CP-31XP
Green G/Red R/White W
Yellow Y/Blue BL
(Optional)
Model: CP-31-PL
(Plastic Glass: 4-piece Replacements)
Copyright all rights reserved
P-MU-CP-31-N Published on 2015.11.20

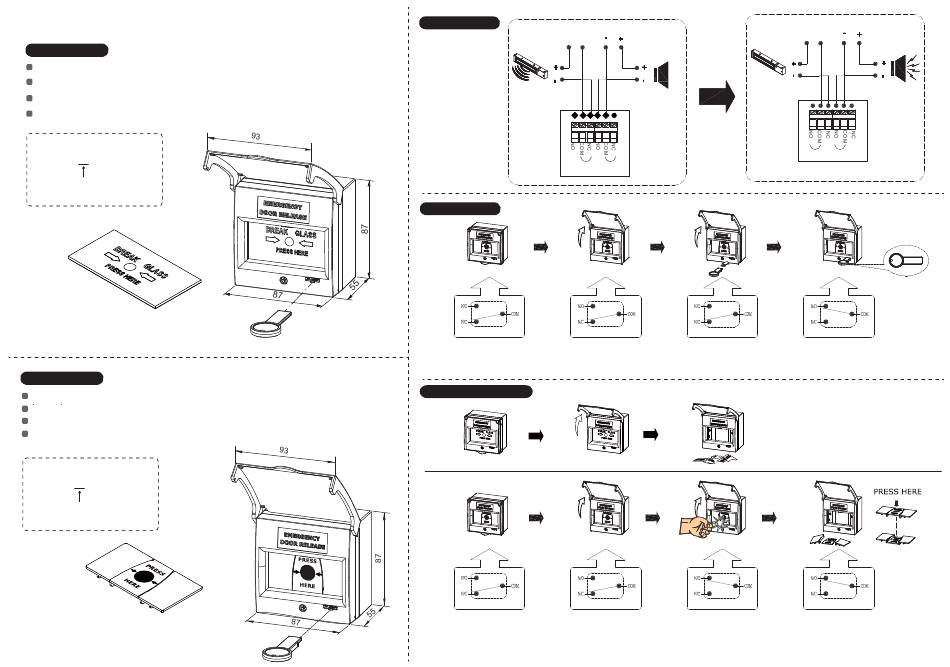

Application

Routine Testing

Unit: mm
(with clear plastic cover)
Open the clear plastic cover. Insert the test key into the hole so that the plastic glass will tilt to one side and the switch will then
change status from NC to NO. Remove the test key so that the switch reverts back to NC status.

Operation Instructions

Open the clear plastic cover. Press harder to break the plastic glass so that the switch will change status from NC to NO,
triggering the connected device.
Unit: mm
* Remove the screw in the front to replace the plastic glass, and the switch will revert back to NC status.
(with clear plastic cover)
Power Supply Power Supply
+ -
Electromagnetic
Alarm
Lock
Switch 1 Switch 2
LOCKED
LOCKED
LOCKED
LOCKED LOCKED
Power Supply Power Supply
+ -
Electromagnetic
Alarm
Lock
Switch 1 Switch 2
UNLOCKED
LOCKED
UNLOCKED
UNLOCKED UNLOCKED
Test Key
