Summary of Contents for ACC WF-100 Smartouch Wifi

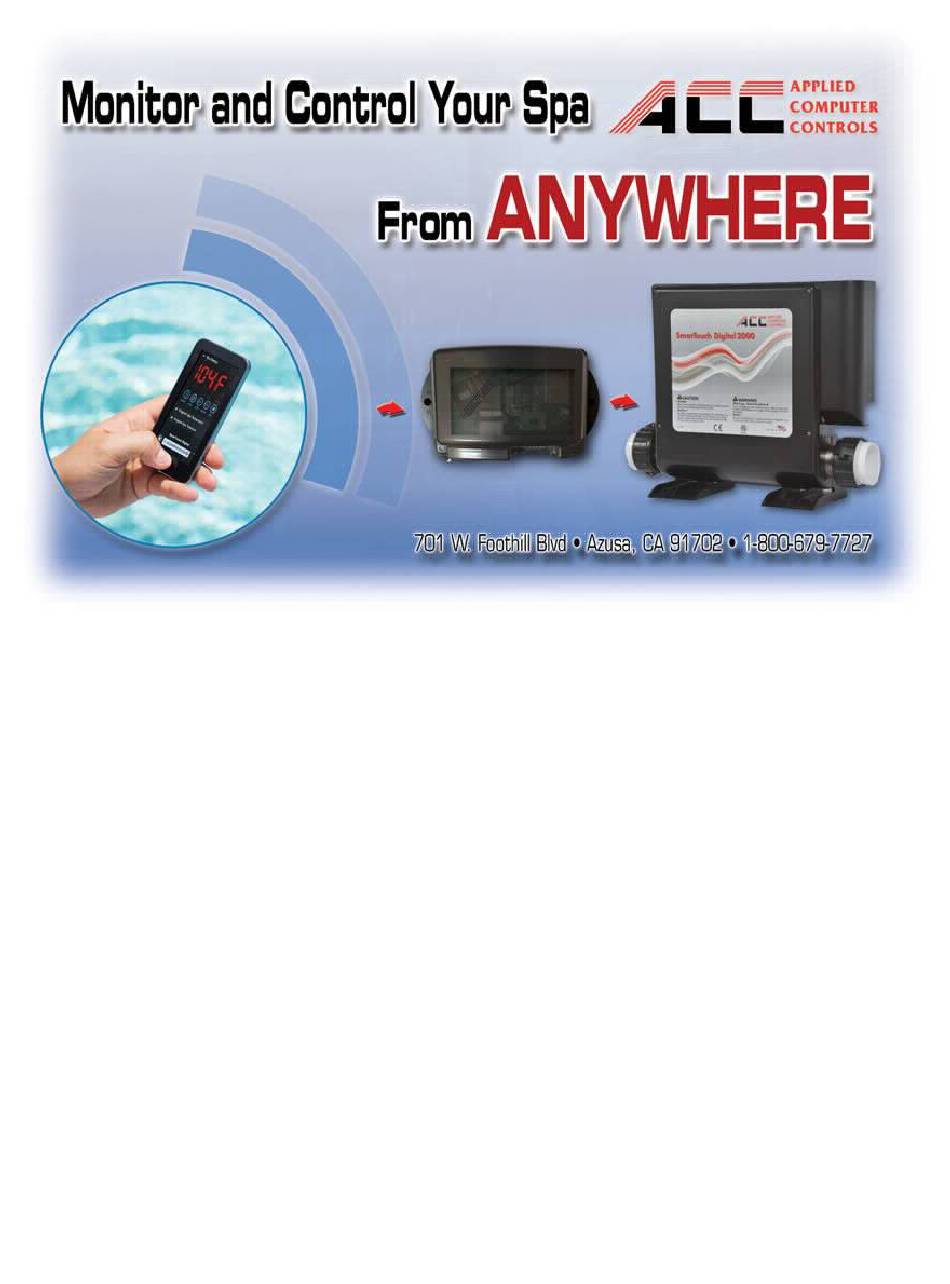

- Page 1 WF-100 Smartouch Wifi Installation and Operational Guide Now you can monitor and control your spa from anywhere you have internet access! Remote access is compatible with ALL smart devices and computers...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 3 (but carefully) spreading the 2 levers on each side at the same time. 4. Open up the ACC Wifi module WF-100 by removing the 4 corner screws on the back. (do not remove the single screw located near the middle if present.)
- Page 4 Insert the spaside control ribbon plug into the wifi module ribbon jack. 5. Route the 2 ribbon cables carefully through the opening shown and reinstall the wifi module cover and screws., The cover has a groove that needs to slide into the box edges at the ribbons. 6.
- Page 5 7. Plug the Wifi module ribbon plug into the Smartouch digital circuit board ribbon cable jack for the spaside control panel. Be sure the plug key is aligned in the slot and press in firmly to make the 2 side levers fold in automatically and lock. 8.
- Page 6 2. Power up the spa control system. 3. Using your smart device (phone, tablet, laptop, etc) access your wifi settings and look in the available wifi choice list for AGI_BOARD_xxxx and connect to it. There will be no password required. 4.
- Page 7 better than 50%, to insure access to the unit is reliable. 9. Select the security type your preferred wifi is using. If you do not know, try WPA as the default choice for any router made in 2006 or newer. If your wireless router was manufactured before 2003, you will have to choose WEP.
- Page 8 16. Now check your email for a registration email with the subject “Your registration email for mac “xxxxxxxxxxxx”. Click on “this link” in the email to complete your device registration process. Save this email for future use to reregister up to 9 more times. 17.
- Page 9 Accessing your Spa Remotely 1. The email from the registration process will contain a link similar to this: https://accsmartlink.com/spa/xxxxxxxxxxxxxxxxxxxxxxx/app 2. Open this link from any computer, tablet, smartphone etc. to access your spa controls. 3. Save this link! Save the email containing it! This is the link to share with your privileged few. 4.
- Page 10 For Android, Windows or other mobile platforms, refer to your device documentation for creating home screen links.
- Page 11 How to factory reset your WF-100 Wifi Module There are several reasons that you may need to reset the unit and apply new settings. The following conditions will require you to reset and reconfigure your spa wifi unit: A) Wifi router has been replaced or factory reset B) Router Wifi access password has been changed 1.
- Page 12 NOTES...
- Page 13 701 W. Foothill Blvd Azusa CA 91702 (626) 969 - 9655 Fax (626) 334 - 4809 © 2016 Applied Computer Controls. SmarTouch & SmarTouch Digital are trademarks of Applied Computer Controls. This manual may not be copied or reproduced without permission, in part or in total.
