Summary of Contents for Rice Lake RL2200
- Page 1 Presented By Dallas Ft Worth Austin Houston NicolScales.com 800.225.8181 Contact Us Nicol Scales & Measurement is an ISO Accredited Calibration Company that has provided calibration, repair and sales of all types of weighing and measurement products since 1931.
- Page 2 RL2200 Load Cell Mounting Kit Installation Guide 49596 Rev A...
- Page 3 Copyright © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice July 31, 2013...
-
Page 4: Table Of Contents
Installing the RL2200 ........ - Page 5 RL2200 Load Cell Mounting Kit Installation...
-

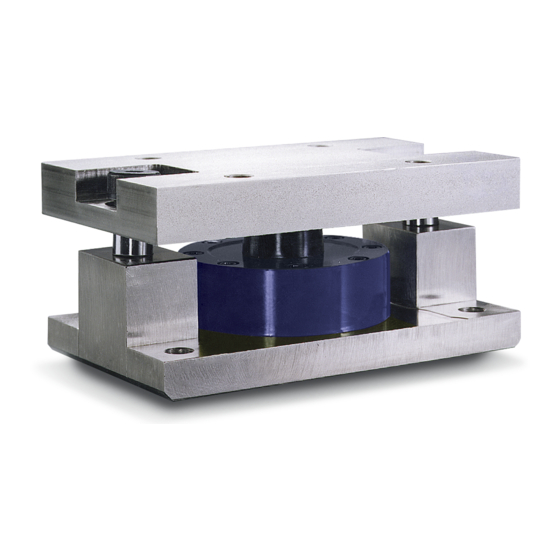

Page 6: Introduction
The RL2200 is available in mild steel or stainless steel, in capacity sizes from 5,000-50,000 lb. The RL2200 is also available with her- metically-sealed stainless steel load cells which are available in capacities from 5,000 lb to 50,000 lb. -
Page 7: Safety
DO NOT use this product if any of the components are cracked. DO NOT exceed the rated load limit of the unit. DO NOT make alterations or modifications to the unit. Contact Rice Lake Weighing Systems for replacement manuals. Proper care is your responsibility. RL2200 Load Cell Mounting Kit Installation... -
Page 8: Mechanical Installation
Proper drainage is necessary so the weighing assembly is not standing in water. All support points should be equally stiff so that they deflect by the same amount as the vessel is loaded. RL2200 Load Cell Mounting Kit Installation... -
Page 9: Installing The Rl2200
• Is there attached equipment such as skirting, venting, or piping which is likely to cause binding or lack of flexibility? Determine where to position each mount. The RL2200 is designed to allow for lateral movement in any direction. Sample mounting orientations to accommo-... - Page 10 The varia- tion in load among the cells should be no more than 20%. The load distribution can be checked accurately by exciting each load cell in turn and measuring the output with a voltmeter.. RL2200 Load Cell Mounting Kit Installation...
-
Page 11: Load Cell Wiring
25 feet. Drip Loop Load Cell Wire Colors Function Wire Color Negative Reading Positive Reading +EXC +EXC Black -EXC -EXC Green +SIG -SIG White -SIG +SIG Gray or Bare Shield Shield RL2200 Load Cell Mounting Kit Installation... -
Page 12: Junction Box Connections, Adjustments & Calibration
If there is a prob- lem with a particular load cell, the symptom should disappear when that load cell is disconnected and replaced with simulator. RL2200 Load Cell Mounting Kit Installation... -
Page 13: Maintenance And Replacement Parts
*A-size mounts use load cells with a capacity of 5,000 lb. *B-size mounts use load cells with a capacity of 10,000 lb. *C-size mounts use load cells with a capacity of 25,000 lb. *D-size mounts use load cells with a capacity of 50,000 lb. RL2200 Load Cell Mounting Kit Installation... -
Page 14: Rl2200 Limited Warranty
RLWS and the Buyer. © 2003 Rice Lake Weighing Systems, Inc. Rice Lake, WI USA. All Rights Reserved. RICE LAKE WEIGHING SYSTEMS • 230 WEST COLEMAN STREET RICE LAKE, WISCONSIN 54868 •... - Page 15 10 RL2200 Load Cell Mounting Kit Installation...
- Page 17 Rice Lake Weighing Systems July 31, 2013 49596 Rev A...
