Details Sonet Installation Instructions

®

Parts Check List:

• Emitter 2
• Controller 1
• Line Cord/Transformer 1
• Mounting Plates 3
• 12' Cable 2
• Wiring Clips 6
• Mounting Plate Pins 8
• Spare Velcro™ Pairs 2
2
Connect a cable to the left hand
Run the cables down behind the work surface and pull them to the
area where you plan to mount the controller.
®
™
For a better day at work.
Installation
Instructions
1

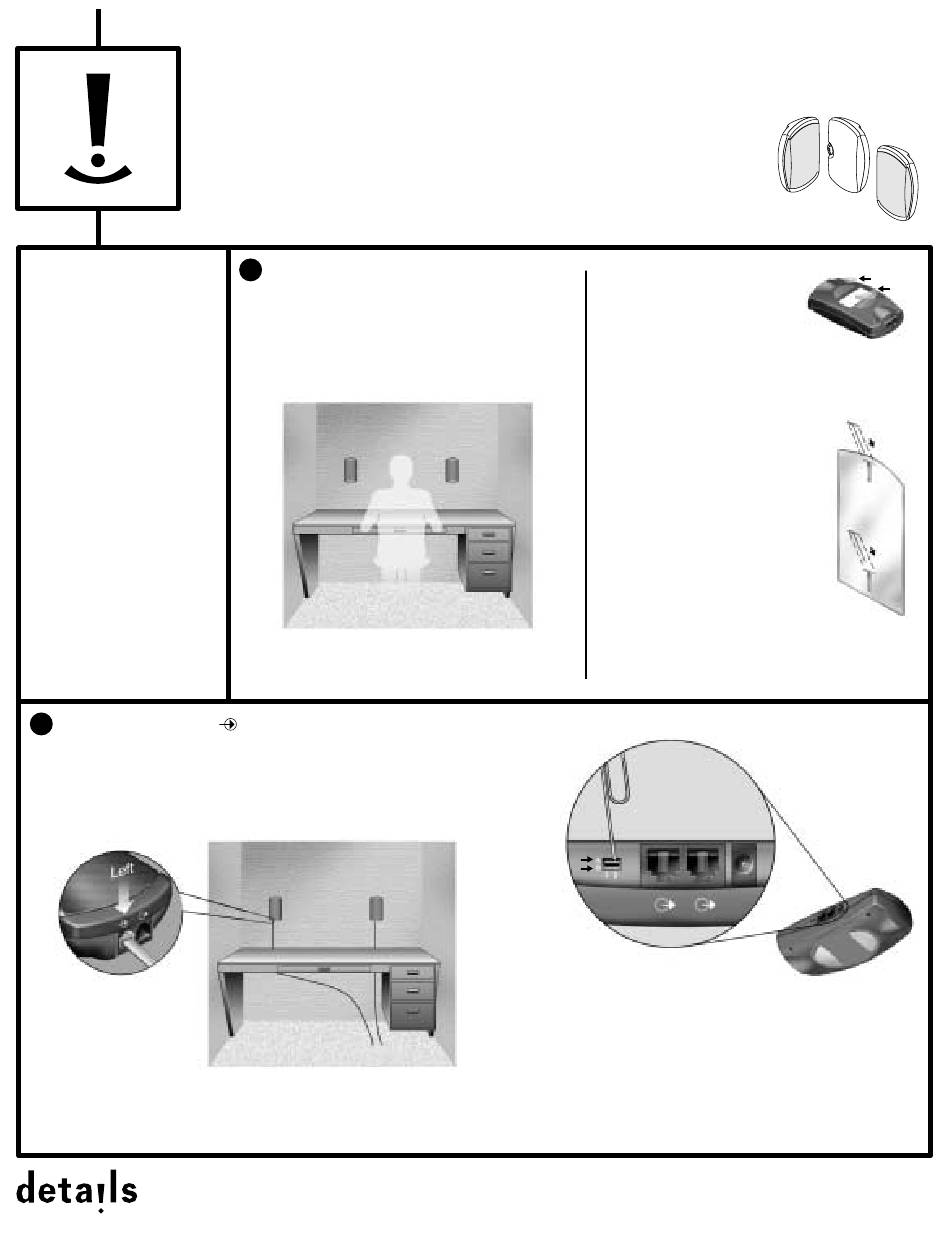

Place an emitter on either side of the wall in front of you
when sitting as you normally do when working. The emitters
should be at about ear height and 2 to 3 feet apart.
Emitter can either be placed facing inward for personal
acoustic privacy or outwards to mask the sounds created
by others.
connector on each emitter.
Sonet Acoustic
Privacy System
X05372

For a Hard Surface:

• Remove adhesive guards from
the Velcro pair on the back
of the emitter.
• Place the Emitter (with connectors down)
in the desired position on the wall and press.

For Fabric Covered Walls:

• Place a mounting plate with
rounded edge up on the spot
where you wish to hang the emitter.
• Push two mounting pins through
the slots in the mounting plate at
a steep angle so that the mounting
plate lays flat on the wall.
• Remove the Velcro adhesive guard
from the Emitter.
• Place the Emitter (with connectors down)
on the mounting plate and press.

Note:

Sonet is adjusted at the factory for optimum performance in an
open workspace, such as a cubicle. If the Sonet system is being
installed in a high ceiling office, a single adjustment is required
prior to mounting the controller.
With a paper clip, move switch 2 from position A to position B.
