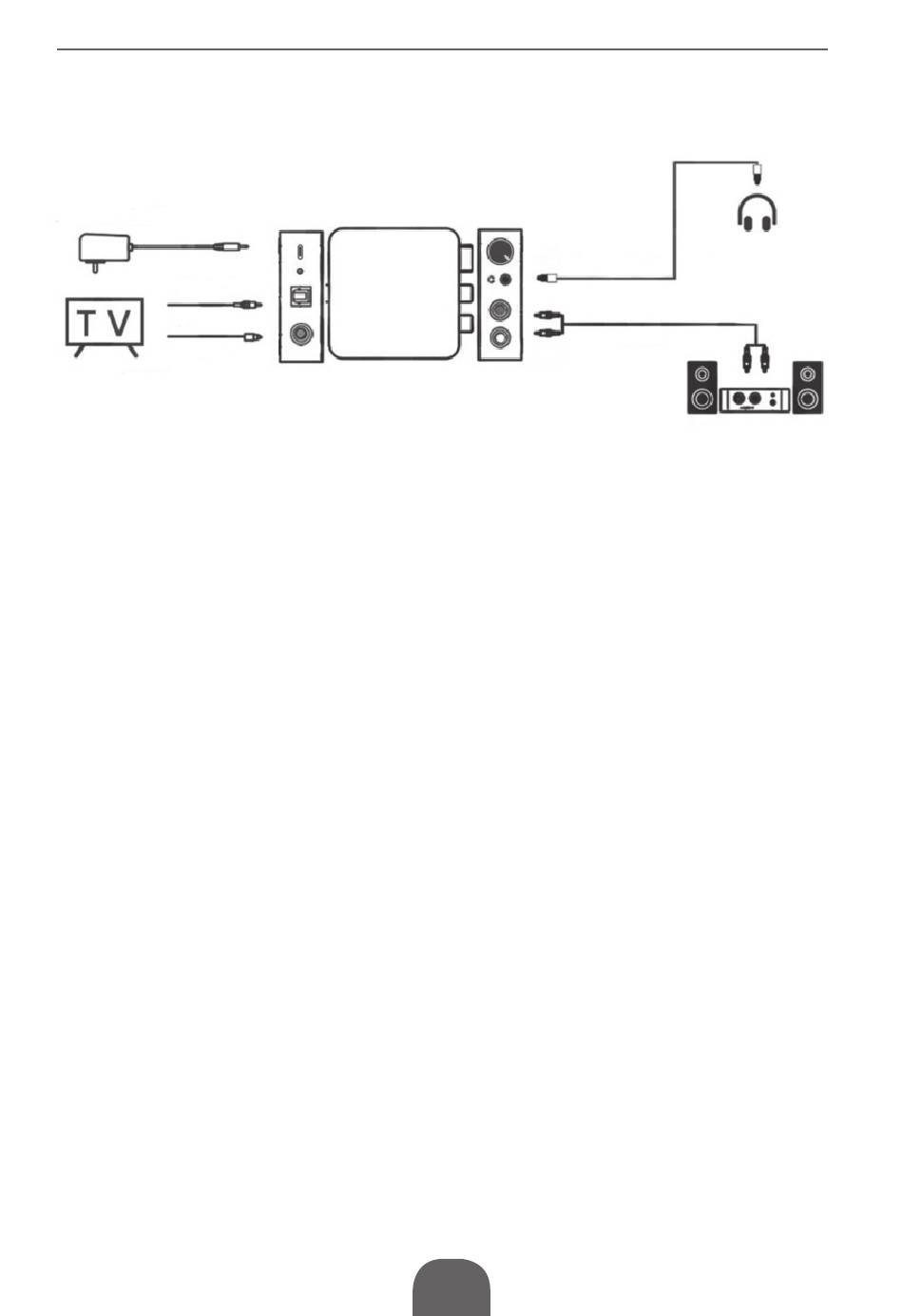

CONNECTION DIAGRAM

USB cable/
AC adapter

CONNECTION AND OPERATION

Before installation, please make sure all devices you
wish to connect have been turned off.
1. Connect the audio source device to the converter
using appropriate Toslink or Coaxial cables.
2. Connect the A/V receivers or amplifiers to the
converter using appropriate R/L cable; connect
the headphones to the headphone output.
3. Connect the converter to power supply by USB
cable or power adapter.
4. Rotate the knob to the ON position to turn on the
device.
5. Set the input switch to the position corresponding
to the input signal.
6. Turn on the receiver.
10
EN
Headphones
Stereo system
