- Page 1 Firehawk Deaf Alert Installation and Maintenance Version – 16/8/2017 New Features Features !
-
Page 3: Component Parts

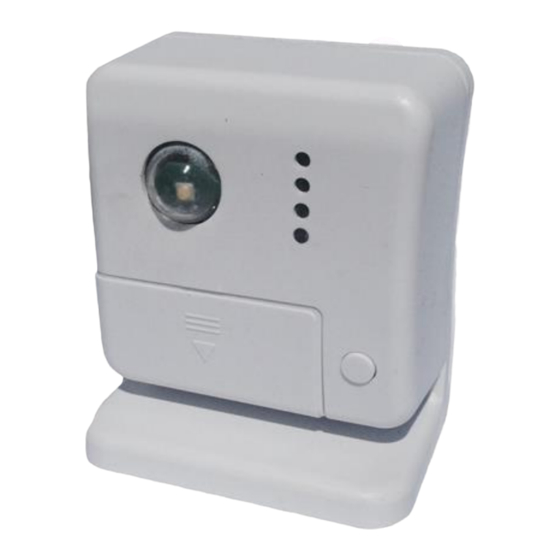

Component Parts FHB10W Smoke Alarm... - Page 4 Multiple Control Centres Can Features ! Now be Used DEAF ALERT CONTROL CENTRE...
- Page 5 Helpful beeps indicating Features ! end of learning Each smoke alarm will double beep at the end of learning.
- Page 6 This new version will operate with Features ! previous versions ……. • Allowing easy in-service extensions to the system • The addition of new products as they come on line • Individual Components can be replaced with any previous version if required.
- Page 7 Tamper – Proof Security Labels can Features ! now be fitted instead of screws...
-
Page 8: Assembly And Testing
Assembly and Testing Separate Control Centre Remove Connection Pass cables through Back from Back-Plate Cover plate and into Control Unit Fit Control Centre onto Backplate or Stand... - Page 9 Assembly and Testing Switch on the radio base Plug in the power lead and the Plug in the or fit the header - power transformer into a Vibrating Pad depending on version 13amp socket and turn on Do NOT connect anything to these two pins.
- Page 10 Assembly and Testing • Test the smoke alarm - After a few seconds the pad, strobe and red FIRE LED should operate. • Then, after a few seconds, press the test button on the control centre – The pad, strobe, 4 LEDs and smoke alarm should all operate.
-
Page 11: Final Installation
Final Installation Refit the Connector Cover with Re-assemble The control Centre its screw or the Tamper-proof to its stand or backplate Security Label 1. Fix the Smoke Alarm to its final location 2. Locate Control Centre where the Strobe can be seen by the end user 3. - Page 12 Power = Brief Red flash every minute followed by a Single beep after 10 secs if the battery power is weak Alarm = Repeating Red flashing light twice every second + a series of 3 beeps every 4 seconds Light and Sounds – Alarm Silence Brief Red flash...
- Page 13 Assembly and Testing FireHawk Deaf Alert (Quick reminder Notes) 1) Connect the Wires 2) Switch on Smoke Alarm Radio Base 3) Place Smoke Alarm in room of protection 4) Place Control Centre in Room of Alerting 5) Press the Learn buttons Rapid green leds = Looking for each other and locking Green leds every minute = ready to test.
-
Page 14: General Notes
General Notes 1. Up to 14 Control Centres, Heat or Smoke Alarms; in any combination, can be connected to the system. 2. The system has a back-up battery so if it is necessary to move to another room for a few hours , just un-plug from the wall socket and take the complete system with you.
