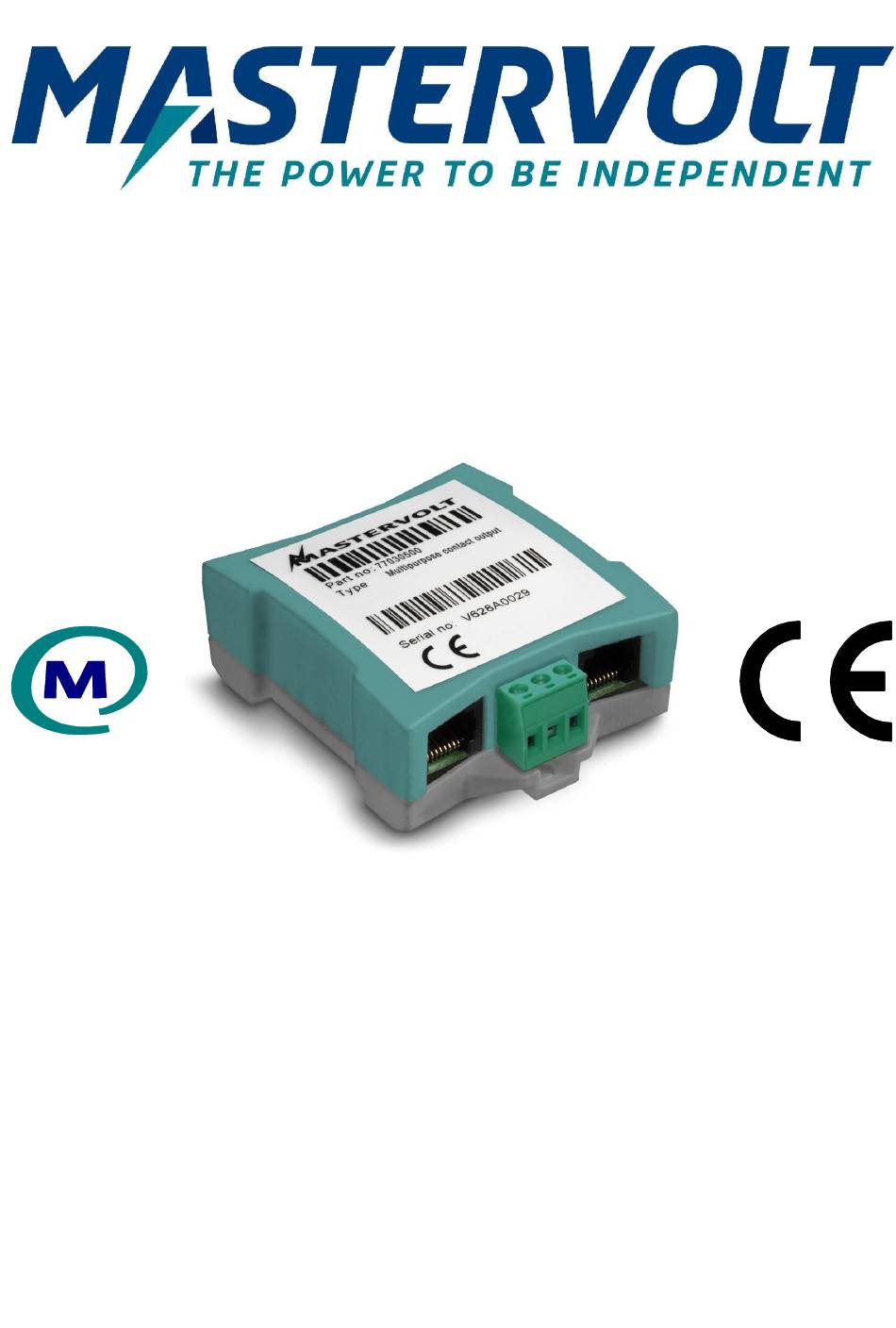

- Page 1 DIGITAL AC 1x6A AC RELAY FOR DIGITAL SWITCHING USER AND INSTALLATION MANUAL 10000017912/01...
- Page 2 Costs of labor or shipping are not covered by this warranty. 2. OPERATION The Digital AC 1x6A operation is entirely MasterBus based. For information about MasterBus and the MasterBus event structure, see www.mastervolt.com. The following table shows the relay functions. Monitoring...
- Page 3 A device can act as event source and as event target. Other devices can control the relay of the Digital AC 1x6A by setting up an event at the source device with the Digital AC 1x6A as target. The following example shows how a Digital Switch Input uses Switch 1 to control the relay with a toggle action.
- Page 4 Digital AC 1x6A – User and installation manual 5. SPECIFICATIONS Model: Digital AC 1x6A Product code : 77031500 Delivery also includes: Screw terminal, MasterBus cable, MasterBus Terminator, User manual Function of instrument: MasterBus controlled AC relay 1:C, 2:NO – 6A / 230 V AC...
